| Prod Model: |
CNP-58 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Capacity: |
51-100L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
CCC |
Product Description

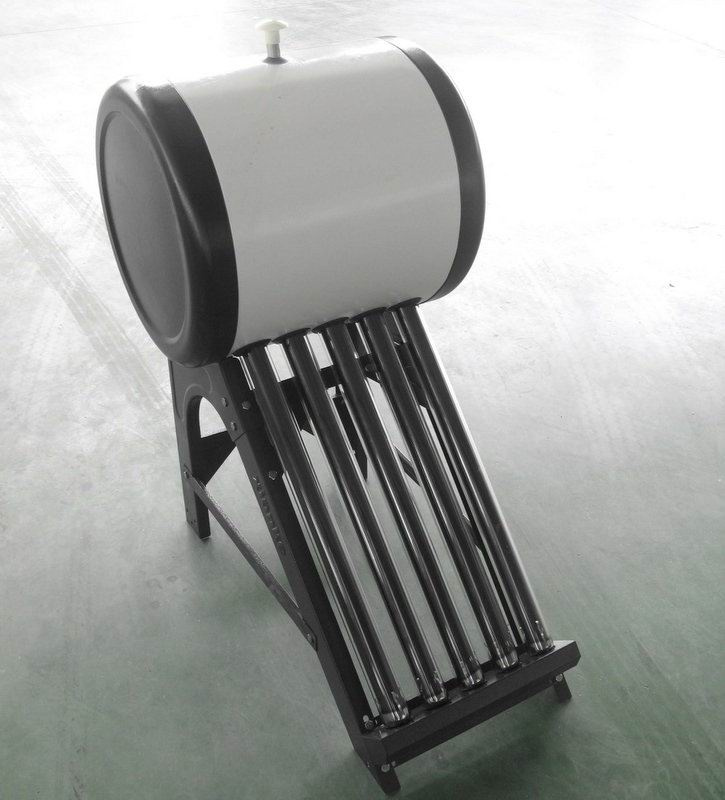

Small demo Solar Water Heater for showroom
Detailed product description:
Non-pressure solar water heater
Working Principle:
Working principle:
Non- pressure Solar Water Heater is a simple form of making use of solar energy to get hot water. It directly joints the heat collector with the water tank on the top. There is no need of pump to push the water and no need of pipeline between the collectors and the tank. When the water in the vacuum heat-collecting tube is heated, its density will decrease and will go upward into the tank; Meanwhile the cold water in the tank will flow down into the tube due to its greater density. Thus, the circulation and heat-exchanging in the system is completed
Advantages:
1. Can he operated completely automatic if connect with intelligent controller or assistank.
2. Simple structure, easy plug-in installation, duble-use frame can be installed both on flat and inclined roof, and can be used with an auxiliary electric booster as to provide tot water without sunshine.
3. Superior heat preservation ensured by one-off molding polyurethane foam with thickness 50-65mm.
4. Suitable for camping area, holiday residences.
5. Stable and reliable performance, well wind resistance.
6. Meet the mankind healthy bath standard: The material of inner tank is SUS304-2B stainless steel plate; The silica gel ring sealing has a long life against the erosion and it ie not harmful to health.
Specifications:
1)Evacuated tube: High quality borosilicate glass 3.3/3target coating 2)vacuum tube/three high vacuum tube Φ 47× 1500, Φ 58× 1800/2100
3)Qty of tube: 15/18/20/25/30pcs
4)Inner tank: SUS304-2B stainless steel plate
5)Outer tank: Stainless steel plate/Color steel/Galvnized steel
6)Tank diameter: 360-470mm
7)Capacity of tank: 90L 100L125L 150L 180L 200L 250L 300L
8)Insulating layer: Polyurethane foam with thickness 50mm-65mm
9)Bracket: Stainless steel plate/aluminium alloy/galvanized steel
10)heat preservation: 72hours
11)Hail resistance: 25mm
12)Color optional: Red, blue silver, green, dark green, orange, pink and so on
13)Solar accessories: Assistant tank, electric heater and controller
We also can produce the product according to your requirements
