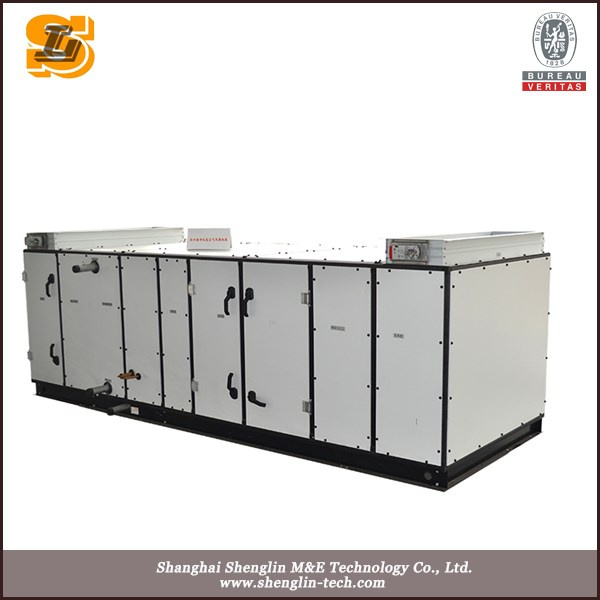

Shenglin Customized Central Air Conditioner (GT-WKR-50)

Prod Model:	GT-WKR-50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe
Operating Voltage:	380/400 VAC
Mounting:	Floor Standing
Input Power:	3n-380V
Frequency:	60Hz
Color:	White(According to Customer Requirements)
Compressor:	Efficient Scroll Closed
Refrigerant:	R22/R407c
Function:	Cooling/Heating
Airflow:	Cross Flow
Place Of Origin:	China (Mainland)
Type:	Cabinet Air Conditioner
Indoor Machine Noise:	>50dB
Certification:	CE
China Energy Efficiency Standard:	Level 3
Cooling/Heating:	Cooling/Heating
Power Source:	Electrical
Power Type:	AC
Condition:	New
Capacity:	50kw
Usage:	Factory

Product Description

Rooftop mounted air conditioner air handling system
Specification
1. Air condition
2. R22, R407C
3. High static pressure duct type
4. Air conditioner
5. Low Noise Designair condition
We are a professional heat exchanger, air handing unit, heat pump,
Air cooler and air conditioner manufacturer in China, which has more than 15 years experience in HVAC area. Our products have been exported to Europe, USA, Japan and Middle East etc.
We are 'Detail Oriented, Focus on Quality, Never Cut Corners

Feature
1. Cross flow plate heat exchanger adopt high quality seawater corrosion resistant hydrophilic aluminum foil as heat conductor, process by special technics, high heat transfer efficiency, easy to maintain, and long service life features, etc.
2. Module structure, different size of edges and superposed thickness to be choice.
3. No running components, and low maintenance cost.
4. Compact structure, small volume and suitable for various occasions.

Production technology
1. The face of heat exchanger process with strengthened heat transfer stamping, increased the 10% heat transfer area.
2. Adopt stamping convex round as air passage support, guarantee the high strength and tightness of Channel, high fresh air and exhaust air bearing capability.
3. Cross channel between ourdoor air and exhaust air, separate by aluminium foil, entry edge and exit edge process with five layer crimping techniques, have higher edge intensity and more reliable seal.

Tel: +86 21 35324169*207
Fax: +86 21 35324166

GT-WKR Series-Roof Top AH Specifiaction 2
Model    GT-WKR-				40	50	60	70	90	110	120
Specification	Cooling capacity 1*		kW	42.0	52.8	61.2	70.2	87.5	105.1	122.5
	Heating capacity  2*		kW	44.1	55.4	62.5	73.8	92.8	112.0	130.0
	Supply air 3*		m3/h	7000	8600	10000	12000	14500	17000	20000
	Static pressure 3*		Pa	300	300	300	350	350	400	400
	Noise 4*		dB(A)	68	69	69	70	71	72	72
	Power			3N-380V-50Hz
	Total capacity			17.24	20.72	23.0	29.76	39.1	44.66	51.58
	Color			White
ooling system	Compressor	Type		Efficient scroll closed
		Quantity		2	2	2	2	2	4	4
	Supply air fan	Type		Low noise centrifugal type
		Capacity	kW	2.2	3	4	4	5.5	7.5	7.5
	Evaporator	Type		Inner grooved copper tube and aluminum fin
		Fin type 5*		Slotted fin hydrophilic aluminum fin
	Condenser	Type		Inner grooved copper tube and aluminum fin
		Fin type 5*		Rippled hydrophilic aluminum fin
	Condenser fan	Type		Low noise axial type
		Quantity		2	2	2	4	4	4	4
	Refrigerant	Refrigerant		R22/R407C
		Refrigerant control		External balance type thermal expansion valve
Air filter				Initially effect plate filter
Dimensions		L	mm	2200	2600	2600	3200	3200	6000	6000
		W	mm	1800	2200	2200	2200	2200	2300	2300
		H	mm	1520	1700	1700	1900	1900	2300	2300
Weight			kg	850	1100	1250	1400	1650	1850	2200
1.         Cooling condition: Indoor dry bulb/wet bulb: 29/19, Outdoor dry bulb/wet bulb: 46/24
2.         Heating condition: Indoor dry bulb/wet bulb: 20/; outdoor dry bulb/wet bulb: 7/6;
3.         The air volume and static pressure`s specification in the table is standard, and can be designable.
4.         Noise data is measured in the front of the units when cooling under the standard air volume.
5.         Fin type and material can be designable.
