| Prod Model: |
ZK-660A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Box Size:400*300*125mm: |
Min Box Size:125*85*20mm |
| Automatic Grade: |
Automatic |
| Driven Type: |
Mechanical |
| Type: |
Automatic Wrapping Machine |
| Applicable Industry: |
Packaging Machine |
| Application: |
Shoe Box, Gift Box, Shirt Box |
| Structure: |
Box Formng Machine |
| Inclusion Degree: |
Full Automatic Wrapping Machine |
| Packaging Type: |
Box Packaging,Leather Packaging |
Product Description
The Most Professional Manufacturer of Rigid Box Machine in ChinaWe are the only manufacturer of Full Automatic Rigid Box Making Machinery in China. Comparing with other semi-automatic machine or handmade working, our full-automatic has more advantages:
Product Introduction

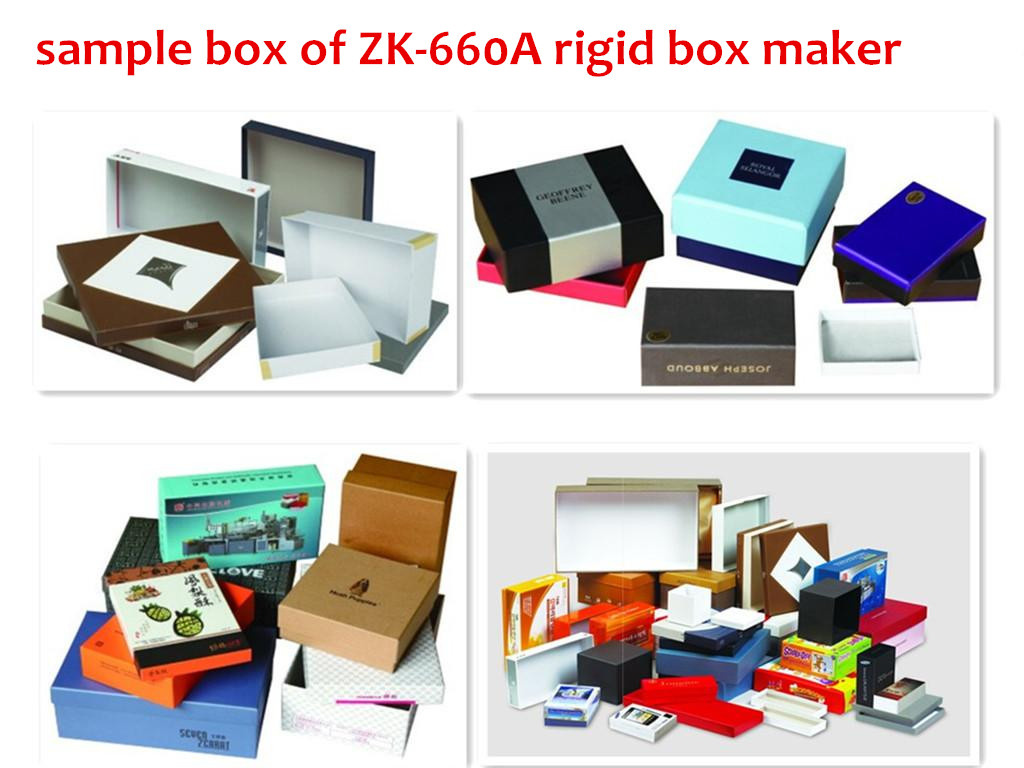

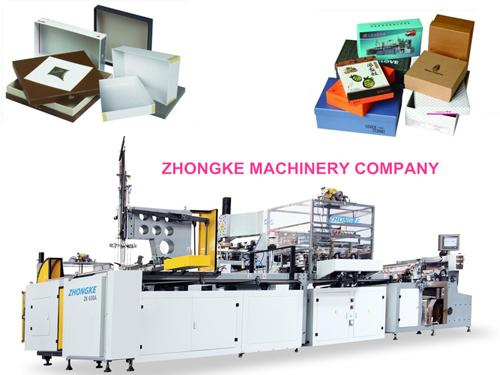

ZK-660A is now china's most advanced and most efficient equipment of producing perfect bottom-locked cardboard cartons and cover like shoes boxes, shirt boxes, garment boxes, gift boxes, and other boxes. The machine wrapped the box in one process. It adopts PLC programmable controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing, cardboard folding, spotting, automatic arm guiding, wrapping, and box coming out in one process. The entire processes are automatic. Compared with the traditional hand made production, the produce efficiency improves by 50 times. (Please visit our website or call us for the detail information) Advantages:Comparing with other semi-automatic machine or handmade working, our full-automatic machine has more advantages:
1. We only need 2 operators to run the machine. However semi-automatic machine need about 12 skilled employees.
2. Our machine needs the hot melt glue, which has no pollution to people. However semi-automatic machine use the white glue or industrial glue, which has the fatal damage to people's health.
3. The quality of the finished box is good, because it was controlled by the computer and accurate servo motor. The error is about 0.5mm. However the semi-automatic machines make the box by their eyes and experiences. The error is big.
4. Our machine has the fast speed to make the box, about 1500pcs/hour. And the broken error probability is less than 2%.Technical Specification:1. Size of the finished box: (125-400mm) × (85-300mm) × (20-125mm)
The size of the box is adjustable as long as it is in the above dimension ranges.
2. Speed up to: 20-25PCS/min
3. Paper wrap thickness: 100-160 GSM (smooth)
4. Cardboard blank thickness: 0.8-3mm (The same thickness and smooth)
5. Electrical power: 380V, 50Hz, 20KW
6. Dimension: 6800mm(length)× 3500mm(width)× 2600mm(height)
7. Weight: 8000kg
8. Position error: About ± 0.5mm
machine detail
|
Box size |
Lmin |
125mm |
Speed |
1500(Cycle/h) |
Lmax |
400mm |
Paper pile height |
260mm |
Wmin |
85mm |
Cardboard pile height |
1000mm |
Wmax |
300mm |
Electrical power |
20kw |
Hmin |
20mm |
Glue tank capacity |
45(Litre) |
Hmax |
125mm |
Air supply |
12(Litre/min) |
Folding Edge Range:R |
Rmin |
12mm |
Net weight |
8000kg |
Rmax |
25mm |
Machine overall dimension |
L6.8XW3.5XH2.6m |
Zhongke Packaging Machinery Co., Ltd. is a professional factory to R & D "Full Automatic Rigid Box Making Machinery" together with well-known university in domestic, which is the first factory based on advanced technology of foreigners in China. The product has passed province-level new product trial project identification; The technology is in the leading domestic level, which filled the domestic gap. It also obtains National important new product, wenzhou technology plan program, wenzhou 3rd prize for progress f science and technology, Rui'an important technology program, Rui'an 1st prize for progress of science and technology, Rui'an patent model enterprises, and the credible enterprise of Rui'an, etc. The superior performance and excellent quality of the product not only optimizes and upgrades the traditional industries, but also promotes the farther development of China Packaging industry.
Since established, Zhongkenese Company insists on management theory that regards the foreign fine works as the model, pick and catch up, the sincerely service as the foundation, with first quality and first service; Also comply with the management policy that scientific management, high quality and efficiency, customer first and good faith compliance; The leading spirits of our company are exploiting with the courage, enterprising constantly, working stable and staidness, and pursuing the high efficiency; We also build up the target that customer's requirements are our responsibilities, customer's benefit is our purpose.
Zhongkenese has the powerful technical teams and carries out strictly ISO9001: 2000 international standard quality administration system as well as the international CE attestation. Zhongkenese pays attention to the control of the producing process, and offers the excellent products and services. At the same time, we have extended completely our sale and service network system in the global markets, the after-service is famous in timely, accurate and high efficient. Zhongkenese gains the good reputation and great prestige because of the high quality products and high efficiency after-sales service. Zhongke product has reached the first domestic market share, and has formed "China First Brand" at present. Our products are sold about 20 provinces in domestic, even are popular with the Europe, South Africa and Southeast Asia regions.
Zhongkenese welcome the domestic and foreign merchants to visit us with investigation, negotiation and ordering!
