Prod Model: |
ZPE-2031JIII, ZPE-2031JII |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Zpe-2031jiii: |
Installation on Bracket, 4-20mA, 250ohm, 5A |
Zpe-2031jii: |
Installation on Wall, 4-20mA, 250ohm, 5A |
Product Description

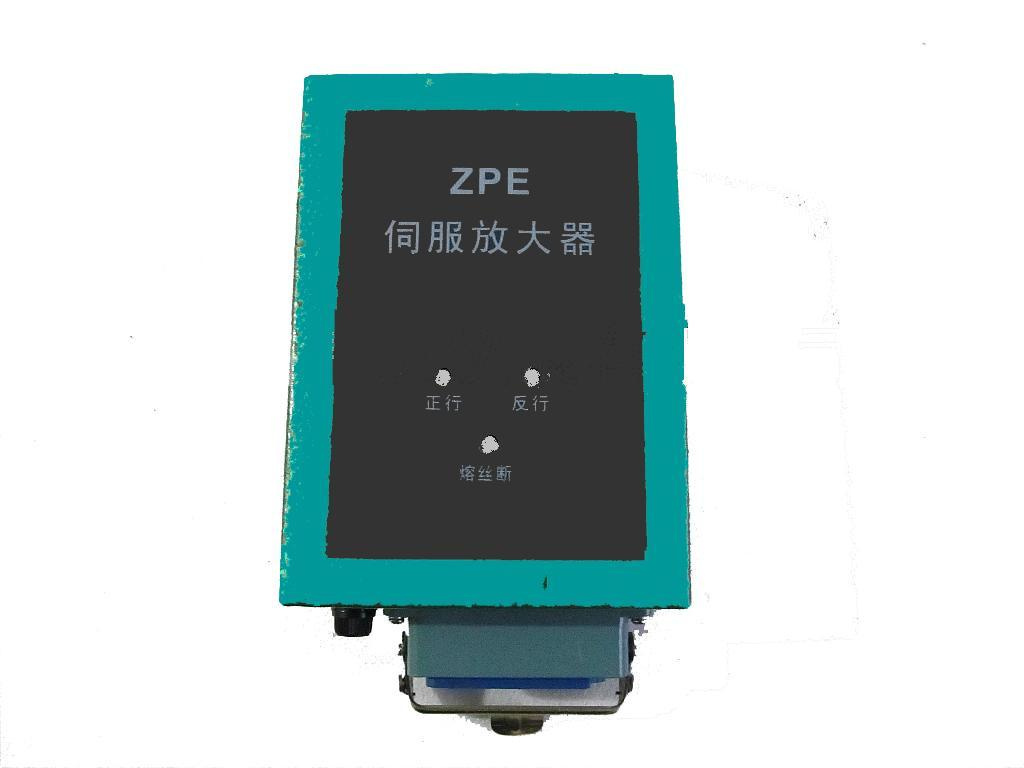

ZPE Single-phase servo amplifier is a new type amplifier, can be equipped with straight travel, angle travel, multi-rotary type electric actuator, widely used in automatic-control and adjust system of power plant, steel plant, chemical industries.
Features:
With high automatic-adjustment accuracy;
With special solid-state relay as non-contact electric switch which makes it safe and reliable;
With signal lights which indicate motion, contrary motion and power fuse burnout of the actuator separately, easy to debug, check and observe;
With compact structure, small volume and light.
Model |
Function |
Installation |
Max working current |
Input signal |
Input impedance |
ZPE-2030Q II |
Normal |
Wall-hung type |
5A |
0~10mA |
200Ohm |
ZPE-2030Q III |
Normal |
Wall-hung type |
5A |
4~20mA |
250Ohm |
ZPE-2030J II |
Normal |
On bracket |
5A |
0~10mA |
200Ohm |
ZPE-2030J III |
Normal |
On bracket |
5A |
4~20mA |
250Ohm |
ZPE-2031J III |
Protection when out of signal |
On bracket |
5A |
4~20mA |
250Ohm |
ZPE-2031 JII |
Protection when out of signal |
Wall-hung type |
5A |
4~20mA |
250Ohm |
