| Prod Model: |
S1009 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Map: |
Stored in Memory or SD Card |
| 3G: |
Support 3G WCDMA 3G Dongle |
| Media: |
DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP |
| Map Formate Support: |
Google Map Online, Sygic, Igo, 3D Maps, etc. |
| Combination: |
WiFi |
| Placement: |
Dashboard |
| Certification: |
ISO |
| Voltage: |
12/24V |
| Audio Output: |
L/R Channel |
| Video Output: |
Video |
| Resolution: |
1024*600 |

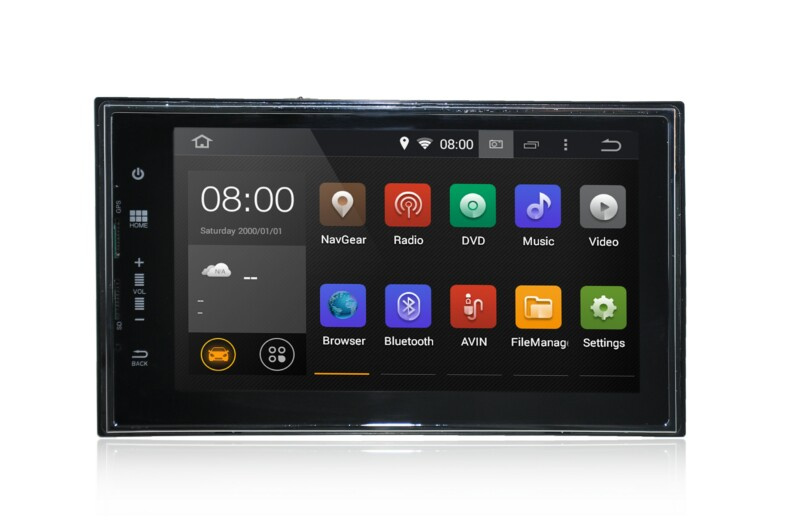

Product Description
Special Features:
Android 4.4.4 System
CAPACTIVE HD 1024X600 Screen
1080P HD Video
CPU: Rockchip 3066 Cortex A9 Dual-Core 1.6GHZ Frequency
1G DDR3 RAM Memory
Built In 8GB Inand
Built-In DVR Function With External Camera
External Bluetooth Microphone
Built-In WIFI Module
Support External 3G Dongle
Built-In Navigation With 3D Map (Map In Inand )
Quick Response After Lighting The Car: Within 1 Sec For Starting, Within 2 Secs For Sound,Within 3 Secs For Rearview,
Within 25 Secs For Operation When Tons Of Applications Installed
APE Music
Support HD 2D & 3D Games
Front And Rear Camera Can Work Together
Support Thousands Of Softwares Downloading From Android Market
Support SD/MMC/SDHC SD Ports, SDHC Supports Max 32G, HDD
Bluetooth Supports All Brands Cellphones,Phonebook Input,Music Playback, Supports Name Search By A-Z
Video Support: WMV(VC1 Code)AVI (H.264, MPEG4,Xvid, WMV),MP4 (H.263, H.264, MPEG4), MPG(MPEG-2),M4V(H.264, MPEG4)
| Configuration |
| OS | Android 4.4 system |
| CPU | Cortex A9 Dual Core |
| RAM | DDR3 1GB |
| Flash | Built in 8GB/16GB |
| Video Decode Support | 1080P |
| Touch Screen | Capacitive touch screen |
| GPS |
| Map | Stored in memory or SD card |
| Map Formate Support | Google map online, Sygic, IGO, 3D maps, etc. |
| Media Player | Yes |
| Card Supported | Normal SD card (Micro SD Card) |
| INTERNET |
| 3G | Support 3G WCDMA 3G dongle |
| Wi-Fi | Support Wi-Fi USB Dongle (external Wi-Fi receiver included in the package) |
| Android Apps Installation | Yes |
| Display Screen |
| Screen Type | Digital TFT touchscreen |
| Resolution | 1024*600 |
| Screen Dimension | 7 inch 16:9 |
| Wall Paper | live wallpaper |
| GUI Interface | 3D Interface |
| Language |
| Main Interface Language | English, Deutch, Franch, Portuguese, Spanish, Italian, Espanol,etc. |
| DVD Control Language | English,Francais,Spainish,Italian,Portuguese,etc. |
| DVD Playback |
| Disk Format Supported | DVD-Video, DVD±R/RW, DVD-ROM, CD-DA, CD-ROM, CD-R, CD-RW |
| Media | DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD |
| Bluetooth |
| A2DP | Yes |
| Microphone | Built-in MIC |
| Received Call | Yes |
| Dialled Call | Yes |
| Missed Call | Yes |
| Download Contacts | Yes |
| Store Contacts | Yes |
| TV Tuner |
| Built-in Analog TV | Yes |
| Analog TV System | NTSC, PAL-B/G, PAL-I, PAL-D/K,PAL-M,PAL-N |
| Built-in DVB-T Tuner | Yes (Optional) / No |
| DVB-T Format | MPEG-2,Support 120km/h, 1 x Active Antenna Included |
| Built-in ISDB Tuner | Yes (Optional) / No |
| Radio |
| AM Frequency Range | 522-1620 (Europe), 530-1710 (America) |
| FM Tuning Range | 87.5-108 (Europe), 87.5-107.9 (America) |
| RDS | Yes |
| iPod Control |
| Touchscreen Control | Can Control Music Through Touchscreen |
| Show Information Of Music | Yes |
| Play Video | No |
| Storage Media |
| SD Card Slot For Music/Movie | Micro SD Card Slot |
| MAX Memory Supported 32GB |
| USB Port For Music/Movie | Mini USB Port |
| MAX Memory Supported 32GB |
| Position: Front Panel |
| Portable HD | Yes |
| Video & Audio |
| Video Input | 1-Channel RCA Input |
| Video Output | 2-Channel RCA Output |
| Audio Input | 2-Channel RCA Input |
| Audio Output | 4.1Channel RCA Output |
| Reverse Camera Input | Yes |
| 3 Zone Out | No |
| Other Functions |
| 2-Zone | Yes (Listen Radio/CD While Watching GPS Image) |
| 3-Zone | No (Listening To Radio/Watching GPS Image At The Front And Watching DVD/SD/USB/TV
From The Sub-monitor Simultaneously) |
| Pictrue In Pictrue | Yes |
| Steering Wheel Control Function | Yes |
| CANBUS | No |
| MFD | No |
| TMC | No |
| V-6 Disc Changer Memory | No |
| CDC | No |
| Parking Assistance | No |
| Game | Yes |
| Button Back Light | Blue Illumination |
| Accessories |
| User Manual*1,Power Cable*1,Remote Control*1,iPod Control Wire*1, RCA Cable*1,GPS Antenna*1,USB Cable*1 |
