| Prod Model: |
FPC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Pressurized |
| Application: |
Air Conditioning System |
| Pipe Material: |
Copper |
Product Description

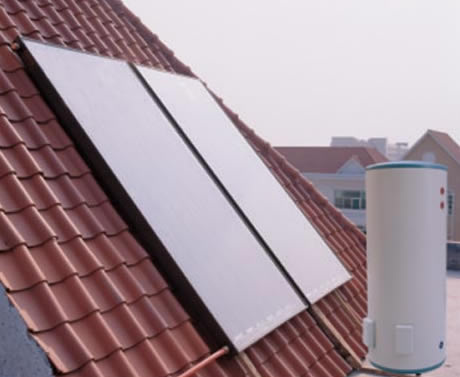

Flat plate solar collector
Application:
Our flat plate solar thermal collector is suitable for residential or commercial solar water heating projects, such as hot water for real estate, hotel, factory hospital, school, swimming pool, central heating, floor heating, etc.
Component Description:
Flat Plate Panel Solar Collector is one of the most wide-used solar collector with high efficiency, the selective coated absorber sheet absorbs up to 95% of available sunlight converting into usable heat, the heat is normally absorbed by water in the loop, or a freeze-resistant water mixture which is used to supplement hot water heating or house air heating.
--Glazing Glass: Toughened low-iron glass (glazing) protects the absorber from the outside environment while allowing through more than 91% of sunlight.
--Absorber: A thin sheet of aluminum is coated with a highly selective anodic oxidation / black chrome / blue titanium coating that is extremely efficient at absorbing sunlight and converting it into usable heat. The aluminum sheet is ultrasonically welded / laser welded to the copper riser pipes.
--Insulation: The insulation helps reduce heat loss from the sides and back of the collector. High-density polyurethane and glass wool to greatly reduce weight and heat lost of the collector.
--Riser & Header Pipe: Conforms to international standards, the header and riser pipes are brazed together to form a harp shaped heat exchanger that the solar system water or fluid circulates through. The absorber sheet is ultrasonically welded / laser welded to the riser pipes, thus transfers heat to the water or heat transfer fluid.
--Casing: Anodized aluminum alloy sheet seals the back and frame of the panel and adds to the rigidity of the collector. The rails in the frame are designed for easy mounting attachment.
Haining Qiruite Photoelectric Co., Ltd. was founded in 2001 and specialized in producing of solar water heaters(mainly), solar lights. In addition, we also have the capacity of researching, developing, designing, manufacturing and installing large scale solar-heat-collector projects and its central-control system. Our factory covers an area of 28, 000 square meters and has an annual production capacity of 100, 000 solar water heaters.
We trust product quality is our life. Therefore, we have got the certificates of Solar keymark, CE, ISO9001: 2000 and CCC. Our production line include over fifty working procedures, and we manipulate strictly under the measure requirements and working order. Our products are exported to many countries with good honor, such as EU, North America, Middle East, South Africa, Southeast Asia and etc.
We can guarantee high product quality. According to different individual requirements such as area, climate and consumption level, more and more productions come into the market from Qiruire. All our successes are based on the research and analysis of the market. If you are interested in any of our products, please feel free to contact us without hesitation. and we are looking forward to having opportunities to become your future honor supplier.
