| Prod Model: |
SFCY-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insulation Material: |
Polyurethane Foam with Rock Wool 35mm |
| Heat Pipe Material: |
Tu1 Copper |
| Heat Pipe Condender Diameter: |
14mm |
| Manifold Exterior: |
Anodized Aluminum Alloy |
| Manifold Interior: |
Red Copper |
| Manifold Header Pipe Outer Diameter: |
35mm |
| Heat Transfer Medium: |
Pure Water Glycole |
| Working Pressure: |
6bar |
| Max Testing Pressure: |
12bar |
| Frame: |
Aluminum Alloy |
| Application: |
Solar Thermal |
| Pipe Material: |
Copper |
| Type: |
Pressurized |

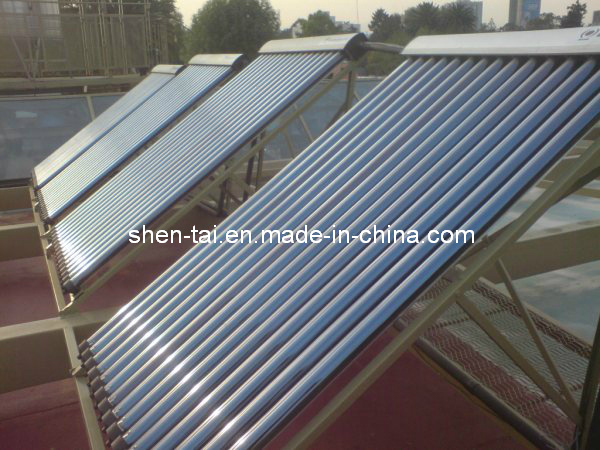

Product Description
Product Description
1) Water tank (interior): SUS304-2B food grade stainless steel
2) Manifold: Aluminum alloy
3) Glass tube: New trivalent element heat tube
4) Solar working station
5) Steel tube dimensions: 58mm x 1.8m, 47mm x 1.5m
6) Water capacity: 150L, 200L, 300L, 500L
7) Pressure: 6 bar
Manifold(exterior): Aluminum alloy
Glass tube dimensions: 58mmX1.8m/58mmX0.85m
Daily efficiency: >55%
Hail resistance: 25mm
Max pressure: 12Bar
Coating of vacuum tube: ALN/AIN-SS/CU
Heat pipe: Anti-freezing>-35C
Solar keymark certificate types:
SCM12-58/1800
SCM15-58/1800
SCM20-58/1800
New Solar Keymark certificate types:
SR10-58/1800
SR15-58/1800
SR20-58/1800
SR30-58/1800
SRCC certificate types:
SR10-58/1800
SR15-58/1800
SR20-58/1800
SR30-58/1800
|
technical data |
|
|
|
|
model name |
SCM12-58/1800-01 |
SCM15-58/1800-01 |
SCM20-58/1800-01 |
|
number of tubes |
12 |
15 |
20 |
|
Gross size(mm) |
1010*1980 (W*L) |
1235*1980 (W*L) |
1610*1980 (W*L) |
|
aperture area M2 |
1.108 |
1.397 |
1.876 |
|
Absorber area M2 |
0.964 |
1.199 |
1.603 |
|
flat roof installation size |
1420*1010*1420mm (L*W*H) |
1420*1235*1420mm (L*W*H) |
1420*1610*1420mm (L*W*H) |
|
weight empty KG |
40.7 |
56 |
64.4 |
|
fluid volume L |
0.8 |
1 |
1.37 |
|
Heat transfer medium |
pure water glycole |
pure water glycole |
pure water glycole |
|
working pressure |
6 bar |
6 bar |
6 bar |
|
Max testing pressure |
12 bar |
12 bar |
12 bar |
|
Max working temperature |
280 |
280 |
280 |
|
efficiency |
0.788 |
0.79 |
0.795 |
|
inlet/outlet connection |
22mm |
22mm |
22mm |
|
manifold packing mm |
1*2000*200*160 |
1*2000*200*160 |
1*2000*200*160 |
|
tubes packing mm |
1*1940*280*270 |
1*1940*350*270 |
2*1940*350*180 |
|
certificate |
EN12975-1,2 SOLAR KEYMARK |
EN12975-1,2 SOLAR KEYMARK |
EN12975-1,2 SOLAR KEYMARK |
|
|
|
|
|
|
Material |
|
vacuum tube |
high borosilicate glass |
|
size |
58*1800mm |
|
coating |
SS-CU-AIN/ALN |
|
heat pipe material |
TU1 copper |
|
heat pipe length |
1770mm |
|
heat pipe diameter |
condenser 14m, body 8mm |
|
manifold header pipe |
TP2 copper 35mm |
|
manifold casing |
anodized aluminum alloy |
|
insulation and thickness |
rock wool with polyurethane foam 35mm |
|
bracket |
aluminum alloy |
|
tube holder |
UV stabilized nylon |
|
seals |
silicon seal |
|
contact sheets |
aluminum fin |
|
Thickness of the aluminum fin |
0.25mm |
|
Distance from tube to tube |
75mm |
