Prod Model: |
jlf-SP-200 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity: |
200 Liters |
Collector: |
20 Heat Pipe Tube |
Tube Size: |
58*1800mm or Optional |
Package: |
Cartons with Foam |
Structure: |
Separate Type |
Pressure: |
Pressurized |
Interior Material: |
Stainless Steel |
Collector Components: |
Glass Vacuum Tube |
Composition: |
Collector |
Max. Capacity: |
200L |
Certification: |
CE,CCC,ISO9001 |
Product Description
Advantage:
Competitive price, good quality
CE,ISO9001,CCC certificate
5 years warranty
After sales solution

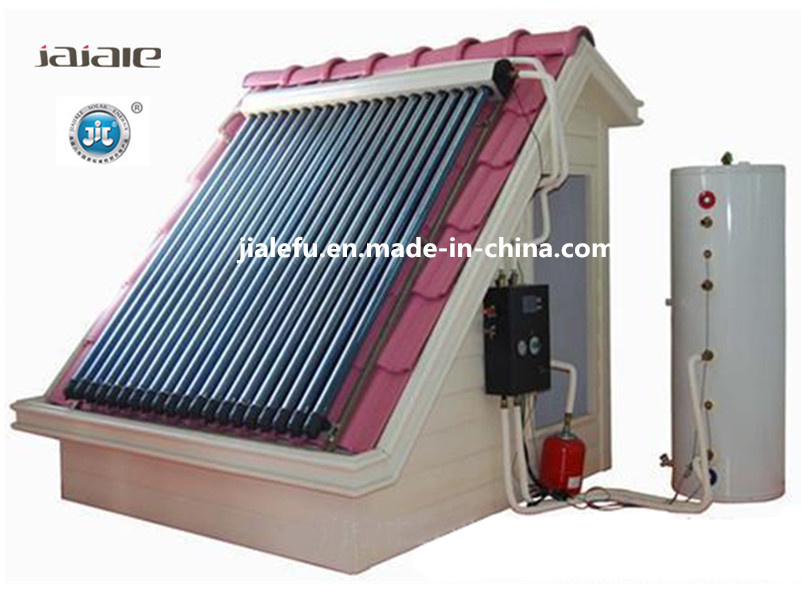

Description | Split pressurized solar water heating system |
Material of out manifold | 0.55mm thickness color steel |
Material of inner tank | Food grade 1.5-2.0 mm thickness SUS304 stainless steel |
Tank insulating layer | 55 mm 45kg/m³ high-density polyurethane foamed |
Max pressure | 0.6 Mpa |
Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
Thickness of glass tube | 1.6mm |
Vacuum tube tightness | P≤0.005 Pa |
Absorption | as=0.93-0.96 (AM1.5) |
Emission ratio | εh=0.04-0.06 (80C±5C) |
Idle sunning property parameters | Y=220~260m2.C/KW |
Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
Bracket: | 2.0mm thickness aluminum alloy |
Tank capacity | 200L |
Solar collector | 58x1800x 20 tube solar collector |
Item | Measured value |
Heat conduction coefficient | >99% |
Axial heat transition auantity | 0.93-2.49kw/cm² |
Heat conduction speed | >200mm/s |
Axial temperature difference | 1-2centi-degree/m |
Starting temperature | 20centi-degree |
Starting speed | 2min |
Working temperature range | 30centi-degree~300centi-degree |
Resistance to high temperature | No deformation in 48hours under 250C high temp condition |
Resistance to low temperature | -35C |
Life | >10year |
Working station component:
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel:8L
12. Pressure resistance: 10 bar pressure for expansion vessel
Jiaxing Carrefour New Energy Co., Ltd., established in 1999, is a professional manufacturer of solar water heater, with rich experience in the R&D and Production. After several years of unremitting efforts, we have accomplished outstanding success in product quality and organizational management. And having established the selling, serving network over China and many foreign countries. Meanwhile, the company has gained many honors such as China Compulsory Certification (CCC), CE certification for exporting to Europe, ISO9001: 2000 Quality System Certification, Certificate for Product Exemption from Quality Surveillance Inspection, China well-know brand, and so on.
We promise that we will provide better products, higher quality, lower price, better service, fast delivery, and longer warranty for our customers!
Join in us, and our products will be your best choice!
Modernized manufacturing equipments and technology have piloted us make progress constantly, and science and technology have enriched our industry. Development and innovation are our persistent pursuit in spirit. The modernized manufacturing equipments and technology have LED the mainstream of the industry and market. With strong conviction and rigid technology, we're committed to meet the demand of different consumption groups in different regions and under different climate conditions. We will create a favorable marketing atmosphere to make the high-tech products emerged like tide and to let technology lead the world.
