| Prod Model: |
BR-OM3501 |
| Display Type: |
Reverse Image |
| Alarming Distance: |
2.5-0.35m |
| Probe Diameter: |
18.8mm |
| Interface: |
RCA |
| Shell Material: |
ABS Plastic |
| Function: |
Night Vision |
| Chip: |
CCD |
| Definition: |
420tvl |
| Probe Number: |
1/2/3/4 |
| Certification: |
Emark |
Product Description

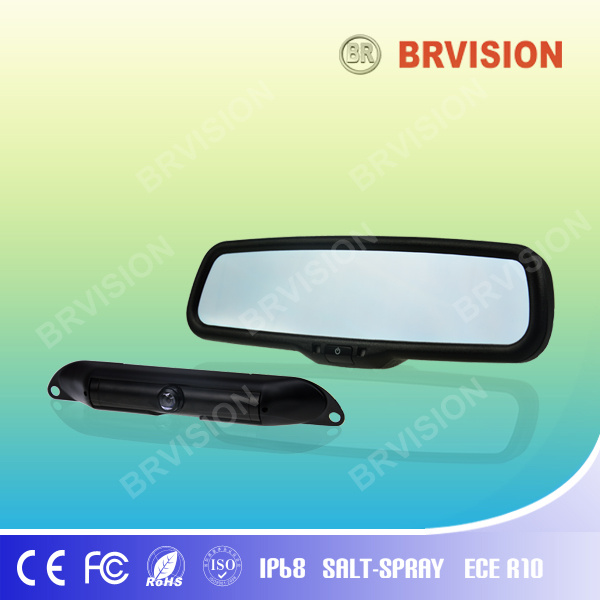

-3.5" Digital High resolution LCD monitor
- Resolution: 320*240
- One video input with RCA connector
- Automatically switch into reversing image when put on the revers gear
- 12 power input.
- Bracket mount to stick on the window shield glass.
- Option bracket: Ford, Toyota, Volkswegen, Citroen bracket
- Drill hole Rear View Camera for option.
- Image Sensor : 1/4" Sharp/Sony Color CCD
- TV System: N TSC/ PAL
- IP Rating: IP68
- Vibration Rate: 10G
- Night Vision function: 16pcs LED lamp
- Audio Function: Avilable
- Ef fective Pixels N: 510×492 pixels P: 500×582 pixels
- Horizontal Resolution: 420TVL
- Video Output : 1.0vp- p,75Ohm,
- Built-in Lens:2.8mm
- Wide angle: 120°
- Power Supply: 12V DC(+/-10%)
- Power consumption: <3W
- Silver Alluminium housing.
- Oper at i ng Temp: - 20C° t o +70C°
- Storage Temp: - 30C° t o +80C°
- Housing: Sliver/White/Black housing for option
| Screen size | 3.5inch |
| Resolution | 800*480*RGB |
| System | PAL/NTSC automatically |
| Audio and video | 4 video/1audio input Quad images,2/3/4 image optional |
| OSD menu | Language,brightness, contrast, trigger priority delay display setting |
| Luminance | 250cd/SM |
| Working temperature | -20°C-+70°C |
| Storage temperature | -30°C-+80°C |
| Voltage | 12V-24V DC |
| Connector | 4 pin or RCA |
| Accessories | user manual/remote controller/powr calbe/sunshade/scre |
1. Brief Introduction:
- License plate rear view camera,
- 1/4" CMOS color sensor,
- 170° view angle,
- 12V DC power input
2. Certificate:
- CE, FCC, Emark, ISO9001-2008
3. Quality Control:
- Ageing Test
- Waterproof Test
- Salt-spray Test
- Viberation Test
- Cable Swing Test
- High Pressure Immersion Water Test
- High Low Temperature Testing: -20C°-70C°
4. Key Specification:
- Image Device: 1/4" CMOS image sensor
- TV System: NTSC/PAL
- View Angle: 170°
- Waterproof: IP68
- Vibration Rate: 10G
- Resolution: 420TV lines
- 1.8mm waterproof lens
- Effective Pixels: 510*496pixels
- Sensing Area: 5.961mm*4.276mm
- Minimum Illumination: 0-01Lux
- Video Output: 1-0vp-p, 75Ohm
- Gamma Consumption: 0-45
- White Balance: Auto
- S/N Ratio: Better than 48dB
- Electronic Shutter: 1/60S-1/5000S
- Power Supply: DC12V
- Operating Temperature: -20° to +70° (RH95%Max.)
- Storage Temperature (Deg.C): -30~+80°(RH95%MAX.)
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
