| Prod Model: |
Keypad Reader |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Proximity Card Reader |
| Material: |
Plastic |
Product Description

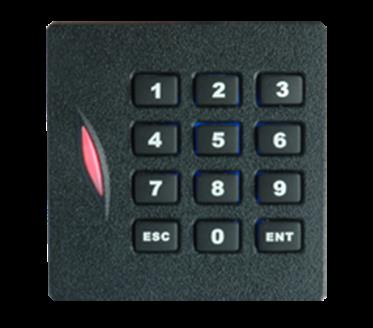

Product Name: Proximity card reader with keypad
Model: RS82E/M
Features:
125 kHz Proximity /13.56MHz mifare Card Reader or PIN
Read Range: Up to 10CM (125kHz)/5CM (13.56MHz)
Output format
Card: 26/34bit Wiegand (default)
PIN: 8 bit for PIN output format
External LED Control
External Buzzer Control
Indoor / Outdoor Operation
Reverse Polarity Protection
Specifications:
Read Range: Up to 10CM (125kHz)/Up to 5CM (13.56MHz)
Reading Time (Card): ≤ 300ms
Power / Current: DC 6-14V / Max. 70mA
Input Port: 2ea (External LED Control, External Buzzer Control)
Card Output Format: 26bit Wiegand (default)
PIN Output Format: 8 bit
LED Indicator: 2 Color LED Indicators (Red and Green)
Beeper: Yes
Operating Temperature: -20 to +65
Operating Humidity: 10% to 90% relative humidity non-condensing
Color: Black
Material: ABS+PC with texture
Dimension (W X H X T) mm: 86*86*16.3
Weight: 120g
Index of Protection: IP64
RS Security Co., Ltd was founded in Nov, 2008 in HK, and factory built in Shenzhen, China. We are specialized in pedestrian access control products, such as tripod turnstile, waist height turnstile, flap gate, full height turnstile, swing gate and other access control related products. Due to our constant development and improvement these years, we have won a good reputation both in China and oversea. So far, We have business partners in more than 50 countries in the world and the quantity keeps increasing.
In order to meet our clients' contemporary and growing needs, we started researching and introducing not just separate products, but complete pedestrian and vehicle access control system solutions, suitable for large range of applications - residential homes and small offices, houses, medium to large buildings.
On the basis of the reliable client feedback we continue improving the quality and features of our product range. We believe in addressing our customers' needs no matter how small or big they may be.
RS Security's efforts are dedicated to its customers. We are proud we can provide effective Customer Support by facilitating:
Requests processed on the day they are received
Customer technical support
Fast Delivery
