| Prod Model: |
LRH-3T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flake Ice Capacity: |
1ton/Day-30tons/Day |
| Cooling Style: |
Air Cooled or Water Cooled |
| Refrigerant: |
R404A/R22 |
| Ice Making Type: |
Spiral SUS304 Ice Blade |
| Ice Drum Material: |
Stainess Steel |
| Supply Power: |
380V 50Hz 3phase (Can Be Designed) |
| Control: |
Automatic PLC Program Control |
| Application: |
Industrial |
| Ice Freezing Time: |
2-3minutes |
| Ice Thickness: |
1.5-2.8mm |
| Ice Shape: |
Flake Ice |
| Certification: |
SGS |
| Condition: |
New |

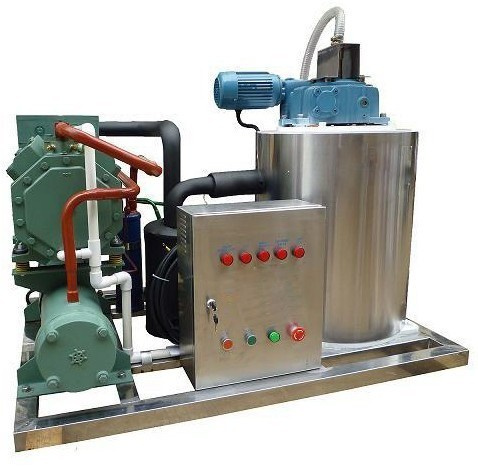

Product Description
Features and advantages of flake ice1. Large contact area:
As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact
Area is, the faster it cools other stuff. In comparison with 1 ton of cube ice, 1 ton of flake ice has 1799 sqm
Of contact area while 1 ton of cube ice only has 1383 sqm, therefore the flake ice has got much better cooling effects than cube ice.
2. Low cost of producing:
The producing of flake ice is very economical, it only requires 1.3rt refrigerating effect to make 1 ton of ice from 16c water.
3. Perfect in food cooling:
Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.
4. Thoroughly mixing:
Flake ice can become water quickly through the rapid heat exchanging with products, and also supply the moisture for products to be cooled.
5. Convenient for delivery:
Because the flake ice fairly dry, it will not stick with others during delivery or storage.
Application1. Fishing:
Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other seaproducts. Fishing industry is the largest application field of flake ice machine.
2. Sea food process:
Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.
3. Bakery:
During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice.
4. Poultry:
Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.
5. Vegetables distribution and fresh-keeping:
Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.
6. Medicine:
In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveness. Flake ice is sanitary, clean with rapid temperature reduction effect. It is the most ideal temperature-reducing carrier.
7.Concrete cooling:
Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight. It is a perfect mediaof temperature controlling, can achieve effective and controllable mixing effect. Concrete will not crack if has been mixed and poured inconstant and low temperature. Flake ice is widely used in the large projects such as high standard express way, bridge, hydro-plant and nuclear power plant.
Why should choose us:
1. Cheaper price - more competitive.
2. Longer warranty period - 18 months.
3. Faster delivery speed and more on time.
4. Superior after-sales service guarantee.
5. More stringent quality assurance than foreign trade company.
6. And the most important: Weare one of few ice machine evaporator leading and professional manufacturers, our evaporators are warmly welcomed at home and abroad.
Detailed technical parameters
| Modelodel | LRH-1T | LRH-3T | LRH-5T | LRH-8T | LRH-10T |
| Daily output | 1t/d | 3t/d | 5t/d | 8t/d | 10t/d |
| Total power | 6.5kw | 15.3kw | 23.9kw | 32.2kw | 52.6kw |
| Compressor power | 6HP | 15HP | 30HP | 40HP | 60HP |
| Refrigerating capacity | 7.5 | 22.5kw | 37.5kw | 58.4kw | 73kw |
| Reducer power | 0.37kw | 0.37kw | 0.37kw | 0.75kw | 0.75kw |
| Cooling style | Water-cooling | Water-cooling | Water-cooling | Water-cooling | Water-cooling |
| water inlet/outlet pipe size | 3/4" | 1/2" | 3/4" | 3/4" | 3/4" |
| Unit dimension | 1310*950*890 | 1500*1150*1250 | 1750*1550*1650 | 2530*1830*1680 | 2530*1830*1820 |
| Net weight | 256kg | 550kg | 780kg | 1100kg | 1320kg |
Q1: What is the delivery time?A1: 1).The ice making machine type. Our main product line includes Flake Ice Machine,Tube Ice Machine,Block Ice Machine. The manufacturing is totally different. So the time and affort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity2). Different Ice Daily Capacity: we have 1T,2T,5T,10T,20T,25T,30T,40T,50T ice making machines. For small capacity ice making machines(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).Q2.: What is the payment terms and trder terms?A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery timeTrade Terms: FOB ShenzhenQ3: Do I need to install the ice machine by myself?For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.For some larger ice machine plant, we need to keep some components seperate for shipping convenience. But no worries about that. An installation brochure will be sent to you,it's very easy to install the machine.Q4: For Water Cooled and Air cooled Machine, Which one is better? A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.Q5: Warranty time? A1: 18 months Any question, pls just feel free to feedback us and we can solve your inquiry within 24 hours.Thanks and best regards!Welcome your inquiry !!!
Shenzhen Liermachine Refrigeration Equipment Co., Ltd. is a professional and leading supplier of ice making machines and refrigeration equipment. We focus on the development, production, marketing, installation and repairing services of ice machines.
With advanced technology, modern management, strict quality control, skilled workers and professional services, our ice machines are widely welcomed by customers from at home and abroad.
We produce flake ice machines, tube ice machines, block ice machines, cube ice machines, plate ice machines and some related machine parts. We have different styles of ice making machines for different using fields. Our products are widely applied in aquatic product storage, fruit or vegetable preservation, meat processing, medicine and chemical refrigeration, textile printing and dyeing industry, deep sea fishing, laboratory refrigeration, concrete pouring and cooling, and so on. Lier always provides reasonable and efficient solutions and makes the best ice machines to meet the demands of customers.
