| Prod Model: |
HG-200K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ice Type: |
Flake |
| Cooling Type: |
Air Cooling |
| Refrigerant: |
R404A |
| Water Source: |
Sea Water |
| Output: |
20tons Per Day |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Application: |
Commercial |
| Structure: |
Separated Type |
| Condensing Mode: |
Air-Cooled |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Filtering Device: |
With Filtering Device |
| Ice Shape: |
Flake |
| Power: |
93.2kw |
Product Description

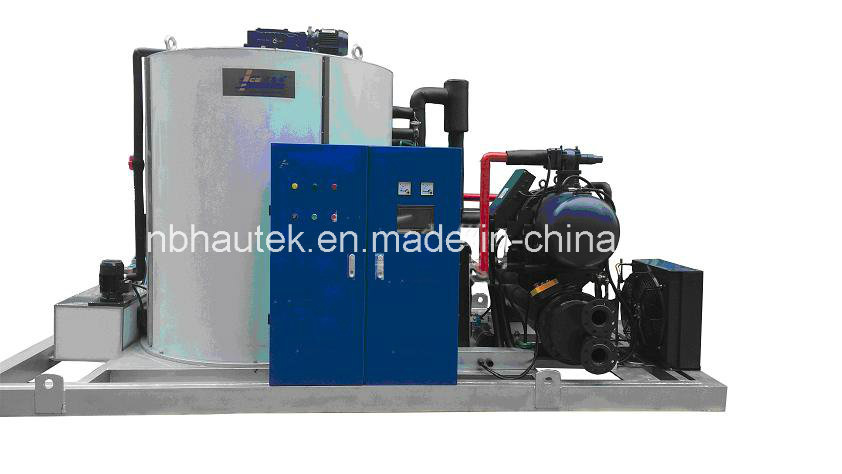

20 ton Seawater Flake Ice Machine Technique Parameter
Number | Item | Specification |
| 01 | Model | GMH-200K |
| 02 | Daily Output | 20000kg |
| 03 | Necessary Refrigeration capacity | 128976kcal/h |
| 04 | Total Power | 93.2kw |
| 05 | Compressor input power | 81kw |
| 06 | Reducer Power | 0.75kw |
| 07 | Evaporator Water Pump Power | 0.55kw |
| 08 | Fan power | 10.9kw |
| 09 | Refrigerant | R404A |
| 10 | Cooling | Air cooling |
| 11 | Evaporator Temperature | -28°C |
| 12 | Condenser Temperature | 35°C |
| 13 | Flake Ice Thickness | 1.5mm-2.2mm |
| 14 | Power Supply | 3p/380v/50Hz |
| 15 | Feed water pipe diameter | 1/2" |
Note: The above-mentioned parameter will be changed subject to technical innovation without further notice.
20 ton Seawater Flake Ice Machine Configuration
Number | Accessories' name | Quantity | Brand name | Specification |
| 1 | Main accessories |
|
|
|
| 1.1 | Compressor | 1 set | HANBELL | RC2-470B-Z |
| 1.2 | Air cooling condenser | 1 set | GREENHALGH | C1-275 |
| 1.3 | Receiver | 1 set | FASIKE | W-60L |
| 1.4 | Safety valve | 1 piece | CASTEL | 3060/34 |
| 1.5 | Liquid line drier filter | 1 piece | SANRONG | SRA-9611-T |
| 1.6 | Solenoid valve | 1 piece | DANFOSS | EVR32 |
| 1.7 | Expansion valve | 6 pieces | DANFOSS | TE5 |
| 1.8 | Return air drier filter | 1 set | FASIKE | FE-100-100-T |
| 2 | Economizer |
|
|
|
| 2.1 | Economizer
(Heat exchanger) | 1 piece | GAOLI | K105*80B |
| 2.2 | Expansion valve | 1 piece | DANFOSS | TE5 |
| 2.3 | Solenoid valve | 1 piece | DANFOSS | EVR10 |
| 2.4 | Check valve | 1 piece | DANFOSS | NRV22s |
| 3 | Oil separator |
|
|
|
| 3.1 | Secondary oil separator | 1 piece | HENRY | S-5204 |
| 3.2 | Oil path drier filter | 1 piece | FASIKE | FOM-03 |
| 4 | Oil cooler |
|
|
|
| Oil cooler | 1 set | GREENHALGH | 5HP |
| 4.1 | Oil ball valve | 4 pieces | SANRONG |
|
| 4.2 | Oil path drier filter | 1 piece | FASIKE | FOM-05 |
| 5 | Middle sprayer |
|
|
|
| 5.1 | Solenoid valve | 1 piece | DANFOSS | EVR6 |
| 5.2 | Middle sprayer oil ball valve | 1 | SANRONG |
|
| 6 | Protection control |
|
|
|
| 6.1 | Oil pressure controller | 1 piece | HANBELL |
|
| 6.2 | High pressure controller | 1 piece | LEILI | 20PS |
| 6.3 | Low pressure controller | 1 piece | LEILI | 20PS |
| 6.4 | Refrigerant | 65kgs | HONEYWELL | R404A |
| 7 | Mechanical system |
|
|
|
| 7.1 | Evaporator | 1 set | CHINA | GMS-200K |
| 7.2 | Reducer | 1 set | JIE | WPWEDKO70-120-800 |
| 7.3 | Motor | 1 set | DATONG | 0.75Kw |
| 7.4 | Water tank | 1 set | CHINA | SX-200k |
| 7.5 | Water pump | 1 set | HONGKING | PA-1-2FA |
| 7.6 | Bottom stand | 1 set | CHINA | SS304 |
| 8 | Electrical control system |
|
|
|
| 8.1 | Electrical control box | 1 set | CHINA | 1150×950×280mm |
| 8.2 | Contactor | 7 pieces | LG |
|
| 8.3 | Thermal breaker | 5 pieces | LG |
|
| 8.4 | PLC | 1piece | LG | K7M-DR40U |
| 8.5 | Temperature module | 1piece | LG | G7F-RD2A |
| 8.6 | A/D module | 1piece | LG | G7F-AD2A |
| 8.7 | Pressure sensor | 3 pieces | EMERSON | PT4-M30,6 METER |
| 8.8 | Touch screen | 1 set | WEINVIEW | MT6070I |
| 8.9 | Phase sequence protector | 1piece | CARLE | DPA51cm44 |
| 9.0 | Air switch | 1piece | LG | ABE203b3p/160A |
| 9.1 | Control transformer | 1piece | LEQING | BK-400VA |
| 9.2 | Temperature sensor | 3 pieces | LIFU | PT100,5 METER |
