| Prod Model: |
SD-22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Number: |
SD-22 |
| Name: |
SD-22 Comercial Automatic Ice Maker |
| Dimension: |
509 X 455 X 768mm |
| Daily Production: |
22kg/24h |
| Bin Capacity: |
11kg |
| Refrigerant: |
R22/R134A/R404A |
| Input Power: |
310W |
| Voltage: |
110V/220V 50/60Hz |
| Size Of Ice: |
33*23*22mm |
| Cooling Type: |
Air Cooling |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Application: |
Household |
| Structure: |
Integral Type |
| Condensing Mode: |
Air-Cooled |
| Automatic Cleaning Device: |
Without Automatic Cleaning Device |
| Filtering Device: |
Without Filtering Device |
| Ice Shape: |
Ice Cube |
| Power: |
0.31kw |
Product Description

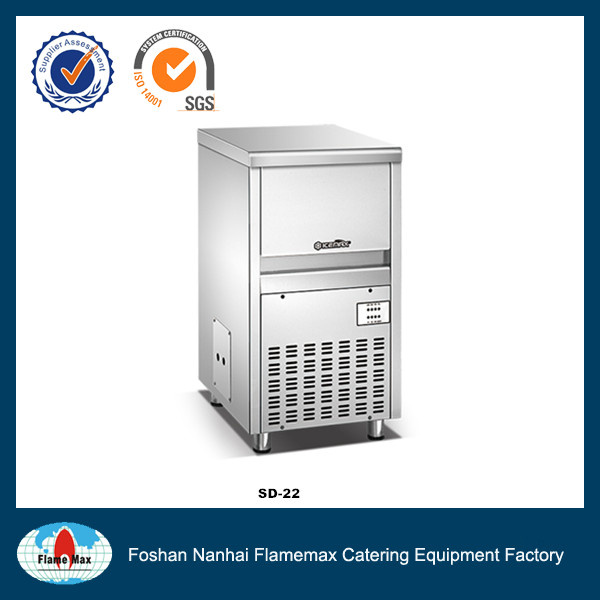

SD-22 Comercial automatic ice cube ice maker
Great Ice Maker for Restaurant, Company Event and Home Party use!
New Design Product!
23Kg per 24H!
Air Cooling!
Fault indicator light for easy maintain!
R134A Environment-protection Refrigerant!
1. Water-saving, high efficiency ice maker
2. Excellent insulation, store ice long time
3. No condensation and save energy
4. Construction with the structure tight made the space use improved greatly
5. Exactly automatic ice making and easy to use
6. Unique drain water fitting to assure the sanitation of the ice-making
7. Clear ice
8. Size of Ice: 33*23*22mm, ice cube
9. Air cooling
10. Fault Indicator light to easy maintain.
11. Brand: FLAMEMAX or OEM
Commercial Ice Maker
Model No.: SD-22
Capacity: 23Kg/24H
Bin Capacity: 11Kg
Compressor: KK / Konor / Aspera
Power: 0.31Kw 220V 50Hz
Refrigerant: RR22/R134a/R404a
| Model | 24H Ice-making Capacity | Bin Capacity | Compressor | Rated Voltage | Rated Frequency | Rated Power | Refrigerant | Refrigerant Volumne | Specifications (mm) | Condensation Mode |
| SD-18 | 18Kg/39Lb | 9Kg/19Lb | KK /KONOR | 220V | 50/60Hz | 280W | R134a | 250g | 419 x 455 x 768 | Air cooling |
| SD-22 | 23Kg/50Lb | 11Kg/25Lb | KK /KONOR | 220V | 50/60Hz | 310W | R134a | 300g | 509 x 455 x 768 |
| SD-43 | 43Kg/95Lb | 20Kg/44Lb | KK /KONOR | 220V | 50/60Hz | 370W | R134a | 350g | 509 x 538 x 853 |
| SD-60 | 60Kg/132Lb | 35Kg/77Lb | KK /KONOR | 220V | 50/60Hz | 460W | R134a | 420g | 707 x 553 x 938 |
| SD-90 | 90Kg/198Lb | 45Kg/99Lb | KK /KONOR | 220V | 50/60Hz | 590W | R134a | 650g | 824 x 553 x 988 |
| SD-120 | 120Kg/264Lb | 45Kg/99Lb | KK /KONOR | 220V | 50/60Hz | 680W | R134a | 780g | 824 x 553 x 988 |
| SD-150 | 150Kg/330Lb | 100Kg/220Lb | KK /KONOR | 220V | 50/60Hz | 750W | R22 | 850g | 665 x 835 x 1400 |
| SD-250 | 250Kg/550Lb | 100Kg/220Lb | KK /KONOR | 220V | 50/60Hz | 970W | R22 | 950g | 665 x 835 x 1400 |
| SD-350 | 350Kg/770Lb | 150Kg/330Lb | KK /KONOR | 220V | 50/60Hz | 1200W | R22 | 1050g | 790 x 835 x 1600 |
| SD-500 | 500Kg/1100Lb | 200Kg/440Lb | KK /KONOR | 220V | 50/60Hz | 1500W | R22 | 1200g | 790 x 835 x 1600 | Water cooling |
| SD-700 | 700Kg/1540Lb | 300Kg/660Lb | KK /KONOR | 3N380V | 50/60Hz | 2500W | R22 | 1400g | 1300 x 835 x 1600 |
| SD-900 | 900Kg/1755Lb | 500Kg/1000Lb | KK /KONOR | 3N380V | 50/60Hz | 5200W | R22 | 1800g | 1900x 835 x 1600 |
