| Prod Model: |
FIF-50K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Daily Capcity: |
5000 Kg |
| Water Consumption Type: |
Seawater, Brine Water |
| Compressor: |
Bitzer/Bock/Copeland |
| Condensation Methods: |
Air Cooling/Water Cooling |
| Certification: |
CCC |
| Ice Shape: |
Flake Ice |
| Condition: |
New |
Product Description

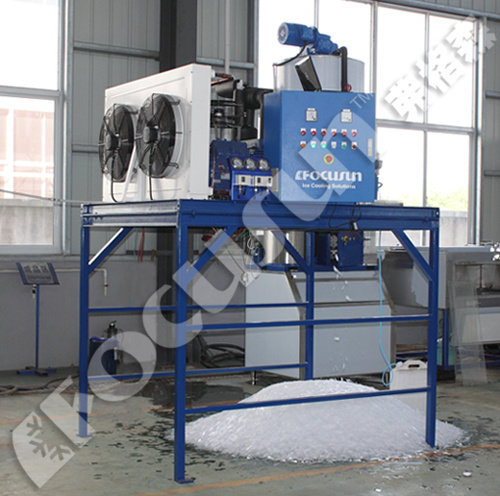

Focusun 5T/24H Fresh water flake ice plant:
Focusun fresh water flake ice makers are divided into four major categories, including small capacity flake ice machine (daily production ranging from 500 kg -2, 500 kg), medium capacity flake ice machine (daily production ranging from 3, 000 kg - 20, 000 kg), large capacity flake ice machine (daily production ranging from 25, 000, -60, 000) and containerized flake ice making plants (two models: 20-foot standard container and 40-foot standard container).
Configuration: The design meets with the standard of the classification society. The use of one or more Bitzer (oil) semi-hermetic piston compressor accords with sea water cooling and sea water condenser. All parts are welded together. So it is strong enough to run normally even in a pitching and rolling ship.
Features: Designed for navigation system operation, it overcome the seawater corrosion and the ship's pitch
The advantages of flake ice as follows:
Irregular ice flakes with size about 40× 40mm and thickness around 1.5-2.5mm.
The thin ice can be directly used for stirring and mixing refrigerated materials;
No acute edges and corners so it will not damage the surface of the cooled object;
Large contact area and fast cooling speed;
Easy to crush and mold.
Please contact us if you are interested in our Sea Water FLAKE ice machine, we can supply from 0.5ton/day to 60ton/day. And we provide perfect turnkey solution.
Turnkey Solution
As the most professional ice making plant supplier in China, Focusun can systematically provide customers with a series of comprehensive ice-making solutions. Once you have the idea of building an ice-making project, if necessary, our experienced engineers will provide you with professional projects proposals.
Generator
In many countries around the world, electricity use is limited due to many reasons such as the electricity price, voltage stability, the continuity of power supply and other factors. As a result, the diesel generator is your best choice. Choosing a suitable diesel generator as your power source for your ice maker, or as a standby power equipment is the sufficient condition to ensure the effective and quick start of a ice-making project.
Our technical engineers are willing to recommend the suitable diesel generator for you according to your ice-making capacity.
| Subject | Unit | Technical parameter |
|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | | Refrigerant | | R22 or R404A | | Capacity | Kg/day | 5000 | | Cooling way | | Seawater cooling | | Temperature | Ambient temperature | Celsius deg | 35 | | Waterinlet temperature | Celsius deg | 20 | | Compressor | Manufacturer | | Bitzer | | Refrigeration capacity | Kw | 27.7 | | Operating power | Kw | 15.29 | | Compressor COP/EER | Kw/kw | 1.81 | | Horse power | Hp | 30 | | Operating power | Total running power | Kw | 17.28 | | Installment power | Kw | 22 | | Operating power of reducer | Kw | 0.37 | | Operating power of cold water pump | Kw | 0.12 | | Cooling water pump | Kw | 1.5 | | Dimension | Size of ice maker | (L×W×H)(mm) | 2200×1050×1550 | | Size of water feeding pipe | | 1/2" | | Size of ice outlet | mm | Φ720 | | Weight of unit | Operating weight of flake ice machine | Kg | 860 | | Water supply pressure requirement | Bar | 1
|
Perfect Service System:
All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in 15 months, Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost.
|
| Process: | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| A | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| B | Have a negotiation of the compensation and sign agreements |
| C | Our After-Sales Department will perform the duties as the agreement |
Focusun Refrigeration is the most professional manufacturer in China, specialized in designing and manufacturing of high quality ice making machines, such as: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.
As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.
Focusun is known across the country for our premium quality on the products we offer. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.
Our products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine are globally known for their dimensional accuracy, high efficiency & durability and they are used in various fields such as aquatic food processing, supermarkets, healthcare centers, man-made skiing resort, mines, large-scale concrete construction, etc. The product model ranges from small-sized ice machines with a daily output of 230kgs to large-sized sets of ice making system up to 60tons in 24hours and 85% of our ice making machine's components are imported and all undergo rigorous monitoring and quality control system to ensure superb quality of our flake ice machine, cube ice machine, tube ice machine, and block ice machine.
We pride ourselves on quality, service and pricing, and believe that all three areas are equally important to ensure the long-term success of your overseas purchasing program. Our sustained relationship with customers serves as testimonial for our high quality products. The fusion of superior quality and reasonable prices make our products capable of influencing anyone in the whole world. Our reputation in the market is synonymous with high quality, updated technology and dedicated approach.
