| Prod Model: |
LXS500 |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Capacity: |
500kg/H |
| Carbonization Ratio: |
88-99% |
| Working Principle: |
Continuous Working |
| Effective Volume: |
13 Cubic Meter |
| Total Weight: |
16t |
| Raw Material: |
304 Stainless Steel |
| Warranty Period: |
12 Months |
| Brand Name: |
Wanqi |
| MOQ: |
1 Set |
| Delivery Time: |
15 Working Days for a Full Production Line |
| Type: |
Continuous Carbonization Furnace |
| Usage: |
Carbonizing Wood Shaving, Sawdust, Peanut Shell |
| Fuel: |
Waste Woods, Natural Gas and Coal |
Product Description

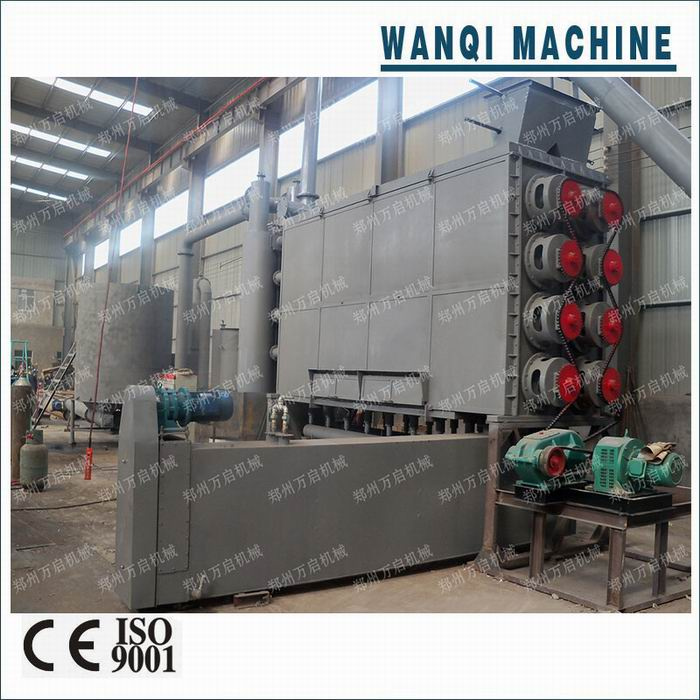

Sawdust continuous carbonization furnace
Part one: Brief introduction of sawdust continuous carbonization furnace
This sawdust continuous carbonization furnace is mainly used for carbonizing sawdust, rice husk, peanut shell, straw, wood chips and grinded coconut shell, etc.
The raw material size should be less than 15mm;
Diameter of inside pipes: 377mm;
Length of inside pipes: 5500mm;
This machine is continuous getting charcoal and feeding raw material at the same time. it with high efficiency and environmental friendly which cause no pollution to the air.
Part two: Features of sawdust continuous carbonization furnace
1. Continue working, one side to feed sawdust one side to get charcoal
2. High capacity, one machine can get output 500Kg-700Kg/h.
3. Energy saving, it use smoke as power and also no smoke go out.
4. Operation: It is easy to operate by a manual automatic dual-use electric control cabinet
5. Continuous working for 24 hours
6.During the processing, it can generate carbon monoxide, methane, oxygen and other recyclable combustible gas, which can be purified and circulate combustion. It is energy-saving.
Part three: Technical parameters of sawdust continuous carbonization furnace
Model | Processing capacity | Total power(Kw) |
| LXS500 | 500Kg/h | 18.5 |
| LXS700 | 700Kg/h | 18.5 |
Part four: Production line details of sawdust continuous carbonization furnace
A. Gasfier equipment
Gasfier equipment can produce gas by heating sawdust, wood wastes and coal. The produced gas will be used for heating the raw material inside the carbonization stove untill the raw material can spontaneous combustion.
B. Dust removal device
After the raw material burning, it has much dust in the gas. The dust removal device will remove the dust by the recycling water.
C. Condenser
Some hot-burning gas will soluble in water, you will get clean gas for heating, also will not pollute the environment.
D. The screw conveyor will transport the raw material to the carbonization stove. The feeding speed is adjustable according to your raw material moisture. The working life for the screw conveyor is 7 years.
E. It can carbonize the raw material to charcoal directly. The capacity for charcoal can be 500Kg/h and 700Kg/h.
F. Cooling and charcoal discharge
Cooling discharging machine will cool the charcoal when discharging. When the charcoal comes out, the temperature will be about 20-30 degree.
G. Automatic control cabinet
To control the whole system. It is very easy to operate.
Part five: FAQ
1. What's your business model? Trading company or direct manufacturer?
We are direct manufacturer with 25 years experience. All the machines are manufactureed by ourselves. We have an integrated system on product produce, quality control, logistics and after sale service.
2. What's the carbonization rate?
The spoilage rate: 2.5:1; Which means 2.5t raw material can get 1t carbonized charcoal.
3. Why it is no pollution during sawdust continuous carbonization furnace production?
Smoking purification system are used for purify the smoking( Can not burning) and filter the wood tar. The smoke through the purification system will become water vapor and it will not pollute the air.
4. Can we visit your factory and use your continuous carbonization furnace do the test?
Yes. Our technician can do the test for you and you can see the whole working principle clearly.
