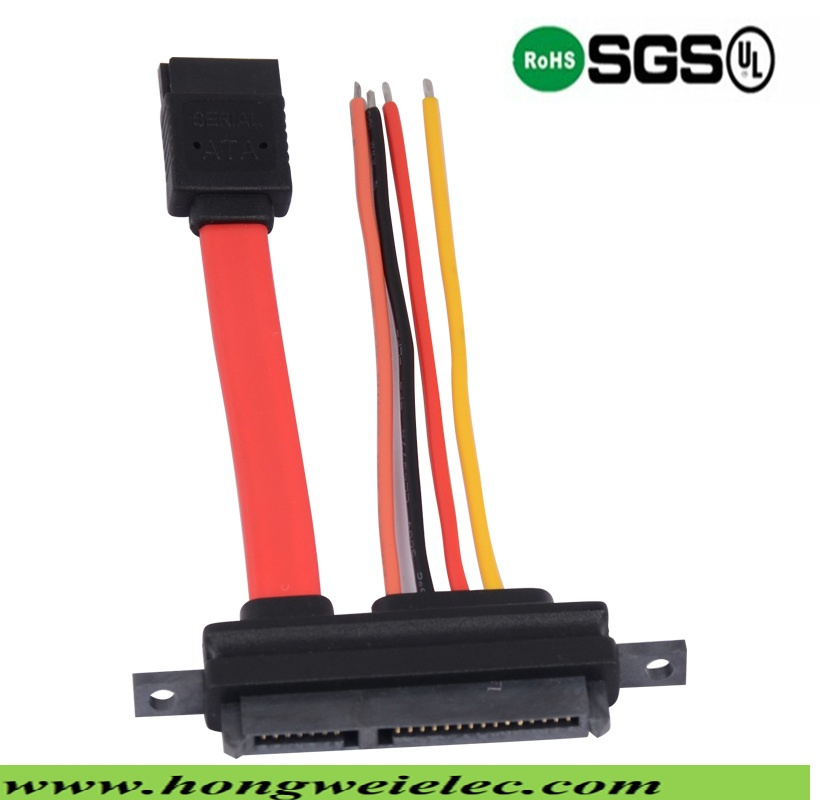

SATA 7+15p to SATA 7p and 4p Power Connector Cable

Name: SATA 7+15p to SATA 7p and 4p Power Connector Cable
Brand: ec-portal.com
SKU: 763892005
Availability: InStock
Rating: 4.3 (85 reviews)

Price:	US $ 0.8-1.5/Piece
Trade Terms:	FOB,CIF,DDP
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	HW-CB-SATA-002-005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Hard Disk
Interface Type:	SATA
Computer Cable Type:	Data Line
Pin:	7+15pin to 7pin and 4pin

Product Description

SATA 7+15p to sata 7p and 4p Power Connector Cable
Specifications
Name: SATA 7+15p to sata 7p and 4p Power Connector Cable

Extension Adapter, used for transmitting data, power on HD, RoHS compliant

Detailed Description
7+15P SATA Male to male Date Power Extension Adapter
1. Slimline SATA cable
2. Housing: VC, LCP
3. Terminal: Hoshpor Bronze or gold plated
4. Singnal Wire: L2725 26/28 AWG, Tinned Copper
5. Power cable: L1007 18/20 AWG, Tinned copper

Electrical
1. Hi-Pot Test: DC300V
2. Insulation Resistance: 0M Ohms(min)
3. Contactor Resistance: 1 Ohms(Max)
4.100% Open Short and Miss Wire Test

Mechanic
1. Insertion Force: 45N Max
2. Withdrawal Force: 15N Min
3. Operating Temperature: -25oC to +85 oC
4. Transfer Rate: Supports 3.0Gbps
