| Prod Model: |
JAY-OZONE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Display: |
with LCD Display |
| Ultra High Temperature Alarm: |
Without Ultra High Temperature Alarm |
| Electric Tension: |
220V |
| Theory: |
Psa |
| Ozone Output: |
8g/18g/28g/40g |
| Ozone Concentration: |
More 58mg/L |
| Oxygen Purity: |
More Than 90% |
| Continuous Operation: |
24h/Day |
| Input Voltage: |
220V 50Hz(60Hz Optional |
| Certification: |
FDA, ISO13485 |
| Type: |
Gas Sterilization Equipments |
Product Description

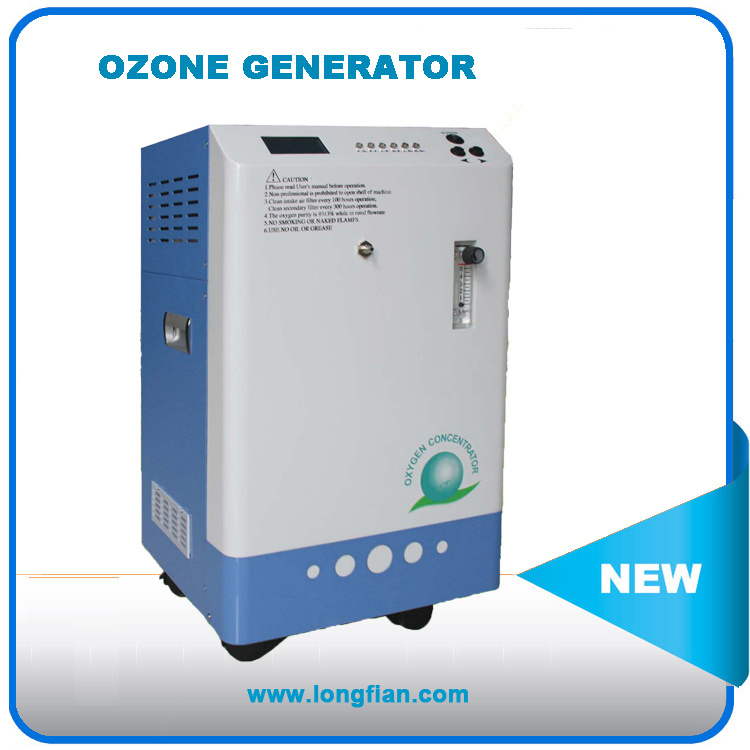

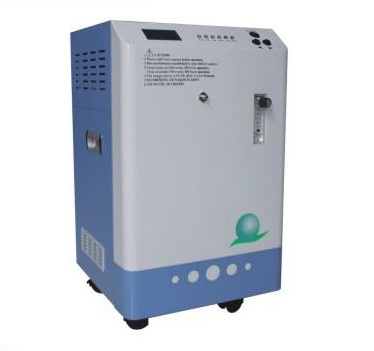

Ozone concentrator:
FEATURES:
Ozone ouput: 8-28g/h
High ozone concentration: >58mg/l
Built in oxyge concentrator; >90% purification
Applied in medical, laboratory, water purifying, laundry, agriculture, etc
Compact assembly: It can be moveable with wheel
TECHNICAL SPECIFICATION:
Ozone outpu: 28g/h, adjustable 8.0-28.0g/h
Ozone concentration: >58mg/l a 8.0 l/min gas flow
Gas flow: Adjustable 1.5-8.0L/min
Oxygen purity: >90%
Output connection: 6.0 mm diameter
Continuous operation: 24h/day
Cooling system: Air cooling, built-in 2x80 CFM fans
Ozone generating method: Corona discharge
Input voltage: 220V 50Hz (60Hz optional)
Power input: 850W
Operating temerature: -10 deg-+60 deg
Storage temperature: -20 deg-+70deg
Size: 370x390x590 mm
Weight: 42kg w/stainless steel housing.
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
