| Prod Model: |
JSD-C9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Flue Type |
| Usage: |
Kitchen |
| Gas Type: |
LPG |
| Installation: |
Outdoor+QU-S Open Balcony Installation |
| Housing Material: |
Stainless Steel |
| Interior Material: |
Copper |
| Certification: |
SASO |
Product Description

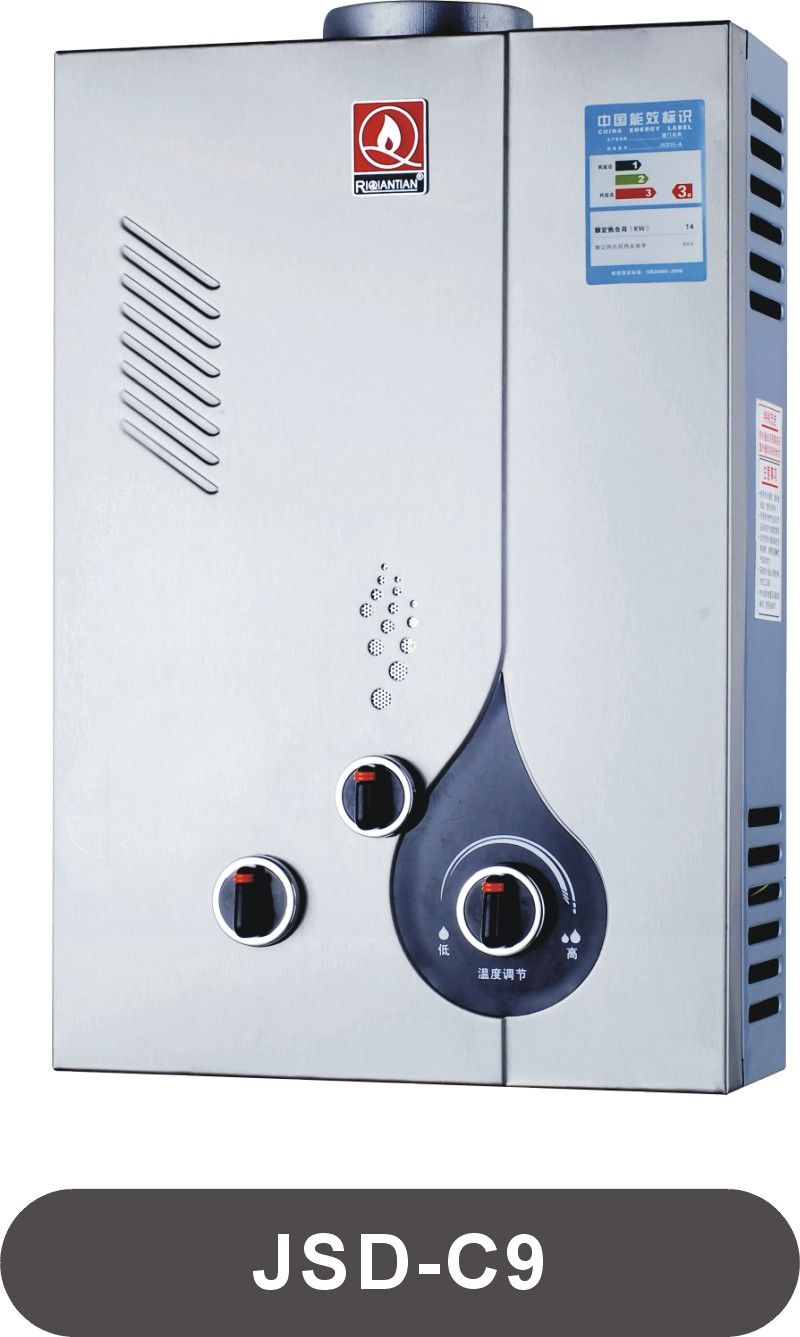

S. S. Panel Gas Water Heater
1. Specification:
1) Optional Color: Silver, Black
2) Housing Material: Stainless Steel
3) Three knobs with summer and winter (Selectable)
4) Heat exchanger made of 100% Copper
5) with Digital Temp. Display (Selectable)
6) Double automatic electrical pulse ignition device.
7) with protection against dry burn
8) with over-temp. Protection, Antifrost protection.
9) with Six-years Quality Gurantee
2. Features:
1) Low water pressure starting and high water pressure protection.
2) High energy-saving: Apply with advanced energy-saving and burning technology, reducing gas depletion and burning noise.
3) Flame failure safety device: It will automatically cut gas source when flameout in accident for avoiding gas leak, reminding that you need to air exchange, it could be use when you restart.
4) Dry burning protection: Temp. Sensor device automatic cut off gas source while heating element is dry heating.
5) Prevent frozen protection: In case of temperature lower than 6 degree in chill condition, Should open the switch to release inner water avoid having ice swelling broken valve.
3. Packing(6L):
1) Dimension:
Product: L560*W340*H180mm
Carton: L580*W380*H200mm
2) Weight:
N. W.: 6.5kg
G. W.: 7.3kg
3) Conveyance:
A) 20 FCL: 850PCS B) 40 FCL: 1730PCS C) 40HQ: 1810PCS
|
Model |
C-6L |
C-7L |
C-8L |
C-10L |
C-12L |
C-16L |
C-20L |
|
Rated Voltage |
3V Dry Battery |
|
Thermal Efficiency |
90% |
|
Heat Output(MJ/H) |
36 |
44 |
53 |
71 |
90 |
115 |
140 |
|
Gas Consumption |
NG(m 3 /h) |
1.10 |
1.43 |
1.65 |
2.00 |
2.45 |
3.25 |
4.05 |
|
LPG(kg/h) |
0.9 |
1.1 |
1.4 |
1.8 |
2.2 |
2.9 |
3.6 |
|
Heat water output(gal/min) |
1.45 |
1.84 |
2.11 |
2.64 |
3.16 |
4.22 |
5.28 |
|
Installation& Exhaust Type |
Wall Mounted/Flue |
|
Gas Type |
LPG(0.406 PSI)/NG( 0.29 PSI) |
|
Type of Ignition |
Pluse: Battery Automatic |
|
Connections |
Hot& Cold Water: 1/2" BSP, Gas House: 9.5mm |
|
Water Pressure |
3~120(PSI) |
