| Prod Model: |
RX-1030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
B&C 190mm Magnet with Aluminum Frame |
| Hf Component: |
B&C 120mm Magnet |
| Size Options: |
10", 12", 15" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Entertainment Venue |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:
a. Compact polygonal design;
b. Imported multilayer birch plywood;
c. High-quality durable polyesterimide paint;
d. Clean, flexible, and full bass;
e. B&C precise compression driver;
f. Realistic sound and perfect voice restoration;
g. Clean, strong bass and a clear, melodious, high but not noisy treble.
1. Description:

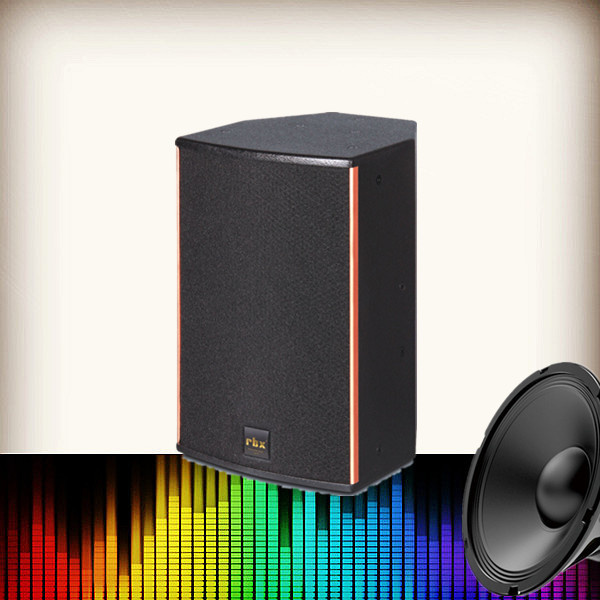

RX-1030 is a two-way full-range speaker designed specifically for high-end KTV clubs. To create a compact polygonal design, we apply several sheets of imported multilayer birch plywood. The surface of it is painted with high-quality durable polyester coatings.
RX-1030 is equipped with a 10" LF precise driver and a 1" HF precise compression driver which are from B&C Italy. When you use it, you will feel realistic sound, as it can restore your voice perfectly. Also, you can feel a clean, strong bass and a clear, melodious, high but not noisy treble.
2. Application:
It is ideal for auditorium, conference room, music bar, DISCO bar and etc. And, as main loudspeaker system. it can be combined with our sub-woof loudspeaker system from the RF series.
3. Technical data:
| Model | RX-1030 single 10 inch 2-way wall speaker |
| Drivers | LF: 1×10"voice-coil: 3" (B&C) |
| HF: 1×1"voice-coil: 1.7" (B&C) |
| Frequency(±3dB) | 50HZ-20KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:60° |
| Sensitivity(1m/1W) | 98dB |
| Maximum SPL | 123dB Continuous/134dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate: 320W/Peak: 1280W |
| Recommend AMP | 500W to 1000W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 505 × 320 × 345mm (H × W × D) |
| Master carton | 565 × 380 × 405 (H × W × D) |
| Net Weight | 18Kg |
| Gross Weight | 20.5Kg |
4. Construction:
| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (18 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
