| Prod Model: |
DIYI-S01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Separate Type |
| Interior Material: |
Stainless Steel |
| Certification: |
ISO9001 |
Product Description

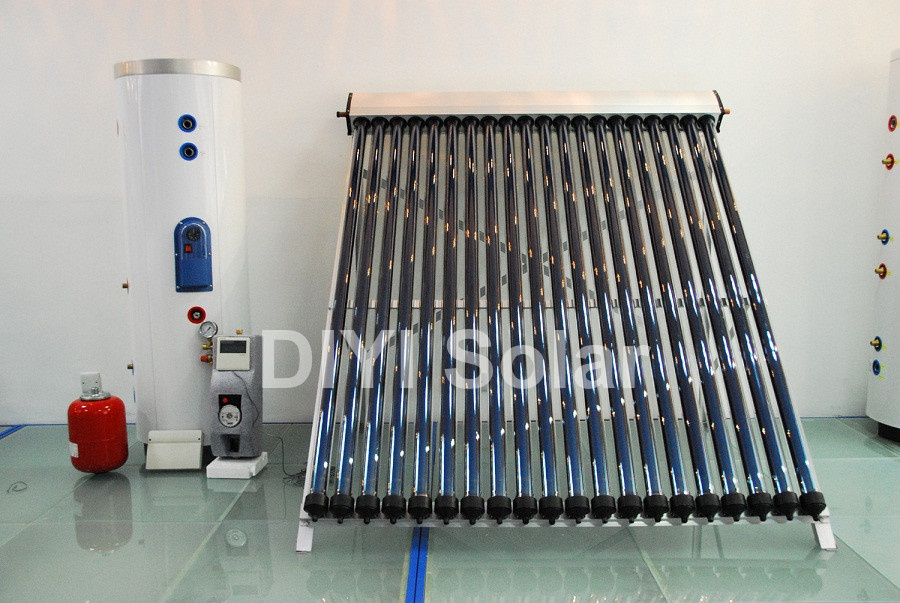

Russia Split Solar Water Heater
Characteristics:
The split solar water heater is composed by heat collector, storage tank, controller, working station and installation parts
Collector is separated from storage tank, so the tank can be put in any place of house. And the collector can be put on the inclined or flat roof
Module design, arbitrary combination, harmony with the building perfectly
Intelligent control and automatic operation
Anti-freeze: No water in the tubes when it works, also the system controller has the anti-freezing function which the temperature circulation will operate while it reached the fixed temperature
Multifunction: Bathing, washing, domestic heating etc
Could work at anytime and use enjoyably
Technical Parameters:
Inner tank: SUS 304-2B/2mm
Outer tank: Galvanized steel/0.5mm
Insulation: High density polyurethane foam 50mm
Vacuum tube: 58*1800mm
SS-CU-AIN/ALN coating
Colletor: Aluminum alloy casting and copper pipe chanel
Bracket: Galvanized steel 1.5mm
0/20/25/38/45/50 degree
Working pressure: 0.7bar
Working temperature: -35-50 Degree
Capacity: 150L 200L 250L 300L 500L
Packing:
|
carton
|
Standard:
|
CE, ISO9001: 2000,
|
Productivity:
|
1500pcs/month
|
HS Code:
|
841919000
|
Trademark:
|
DIYI-S01
|
Origin:
|
China
|
Jiaxing Diyi Solar Technology Co., Ltd located in Haining City, Zhejiang Province, in the East of Shanghai and west of Hangzhou with the convenient transportation, the total area 3000 square meters, Through 8 years' development, we have the annual output of 50, 000 Units solar water heaters. Also we have successfully entered Europe, Africa, South Korea, Australia and Southeast Asia with our unique advantages in stable quality and competitive price.
As a manufacturer owning the most advanced manufacturing equipment for producing vacuum tube and solar products, And we have got the poweful certificates, such as ISO9001: 2000 certificate, SABS, Solar Keymark and SRCC. We are specialized in vacuum tubes, solar collectors and solar water heaters. Now our factory is in Haining City, Zhejiang Province which is for producing solar collector and solar water heater with our own brand-"DIYI".
Also we could produce specified products according to customers' designs or samples.
Meanwhile, as a manufacturer, from the initial tube source to final finished products, we exactly control our quality at every working procedure in order to supply the best quality for customers. We also have a good after-sales service system and can gain the feedback in time.
We warmly welcome both domestic and overseas clients to create the win-win cooperation, and we are looking forward to having opportunities to become your future supplier. Both OEM&ODM are acceptable, all your attention and supports will be highly appreciated.
