| Prod Model: |
GWF-1C6T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White, Black, Red, Blue |
| Antenna: |
RP-SMA Detachabl 2dBi/5dBi Antenna |
| Main Chipset: |
Ralink Rt5372 |
| Mode: |
2t2r |
| Peak Rate: |
300Mbps |
| Certification: |
CE, RoHS |
| Type: |
Wireless |
| Interface: |
USB |
| Transmission Rate: |
300Mbps |
| Application: |
Desktop, Laptop, STB, IP TV, IP Camera |

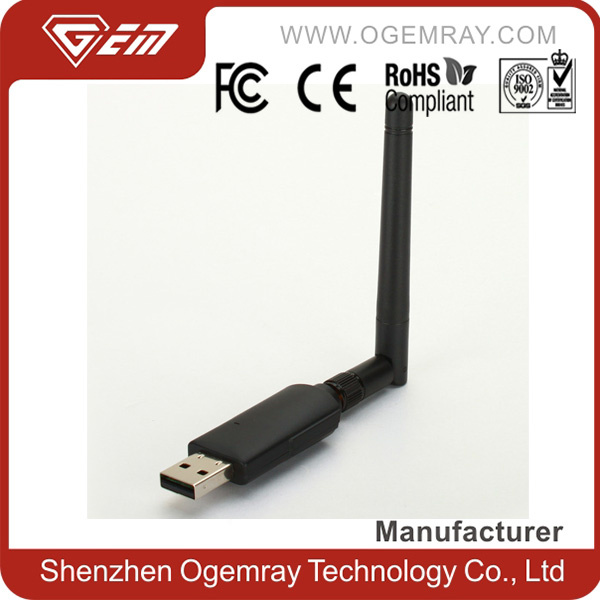

Product Description
1.2T2R Mode
2.802.11N 300Mbps wireless USB adaptor
3. Ralink RT5372chipset
4. High peak rate WiFi adapter
5. Software AP function.
Model: GWF-1C6T
Ralink RT5372 2T2R Modes
Main Features:
802.11b: 1, 2, 5.5, 11Mbps;
802.11g: 6, 9, 12, 24, 36, 48, 54Mbps;
802.11n: (20MHz) MCS0-15, Support up to 144Mbps; (40MHz) MCS0-15, Support up to 300Mbps
MIMO, OFDM, Peak rate 300Mbps, Peak throughput: TX 80Mbps, RX 160Mbps
Power Management
Wi-Fi Certification: 802.11 a/b/g, 802.11n, WPA, WPA2, WMM, WMM-PS
WHQL, Cisco CCX
Hardware
Chipset: Ralink RT5372
Host interface: USB2.0/1.1 type A (4 pin header)
LEDs; Link/Acticity
RF
Antenna: External RP-SMA detachable antenna
Frequency: 2412~2483.5 MHz, ISM band
Transmit Power: 802.11b: 17+/-1.5dBm; 802.11g: 14+/-1.5dBm;
802.11n: (HT20), 13+/-1.5dBm, 802.11n: (HT40), 10+/-1.5dBm,
Receive Sensitivity: 802.11b: -84dBm@11Mbps; 802.11g: -68dBm@54Mbps
802.11n: (HT20), -65dBm@MSC7, 802.11n: (HT40), -61dBm@MSC7
Software
Operation System: Windows CE/2000/XP/Vista; Linux; Mac OS X
Security: WEP 64/128, WPA, WPA2, 802.1X, and 802.11I Cisco CCS V1.0, 2.0 and V3.0 Compliant
Operation Conditions
Voltage Range: DC 5.0V ± 5%
Operating Temperature: 0° C - 50° C
Storage Temperature: -20° C - 70° C
Operating Humility: RH 95% (Non-Condensing)
Storage Humidity: RH 95% (Non-Condensing)
