Product Description
UHF EPC G2 and ISO18000-6B reader/writer
UHF Long Distance Card Reader Writer 902-928 MHz 5 Meters
Embedded antenna with RS2
UHF EPC G2 and ISO18000-6B reader/writer
Embedded antenna with RS232 interface
(US Frequency 902-928 MHz)
UHF EPC G2 and ISO18000-6B reader/writer
Embedded antenna with RS232 interface
(US Frequency 902-928 MHz)
Support Tag: EPC G2 and ISO18000-6B
Features:
Part No: UHF-MP-RW-232-V1
Operation mode: Read/write UHF Tag ID & Memory
Support multi-tag reading (~30-50 tags/second )
Antenna: Build-in circular polarization antenna
Support US Frequency: 902 - 928 MHz (can be defined by end users)
Output interface: RS232/Wiegand26
Transmission Power: < 30dBm (software programmable)
Support: ISO18000-6C EPC G2 or ISO18000-6B UHF tag
Power supply: +9V DC, 3A
Free software pack: VB, . Net, C# and delphi demo program with source code, DLL & protocol)
Reading range: ~ 3 - 5 meters
Dimensions: 220 x 220 x 30 mm
Weight: ~2 Kg
Frequency: UHF (902-928 MHz)
Read Range: 1 - 7 meters
Interface: RS232/Wiegand26
Dimensions: 220 x 220 x 30 mm
Weight: 2 Kg
Color: Milky White

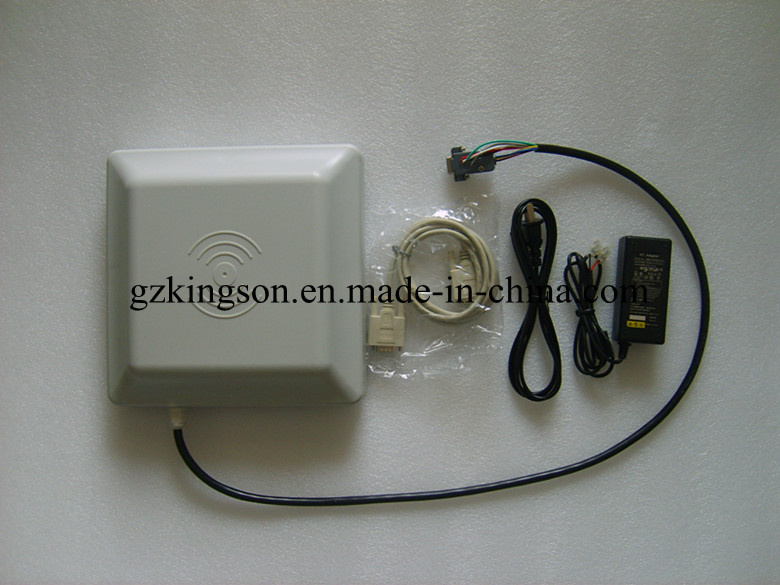

Full set includes:
UHF RFID reader/writer x 1 PC
UHF EPC G2 ISO card x 1 PC
UHF EPC G2 label x 1 PC
UHF EPC G2 metal tag x 1 PC
9V external power supply x 1 PC
Installation bracket x 1 set
Software pack in CD x 1
Software pack:
Demo program show how to read & write the data into the tag
Example code with source code (delphi, VB. NET & C# ) - speed up software development time
Detail DLL command set, protocol & manual
Data sheet & user manual.
