| Prod Model: |
Ypn |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
9000/12000/15000BTU |
| Eer: |
8.9 |
| Power Supply: |
110~120V or 220~240V |
| Application Area: |
18~25m2 |
| Size: |
330*845*470mm |
| Type: |
Portable Air Conditioner |
| Usage: |
Room |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
DC |
| Condition: |
New |
| Capacity: |
9000BTU-15000BTU |
| Indoor Machine Noise: |
Aroud 50dB |

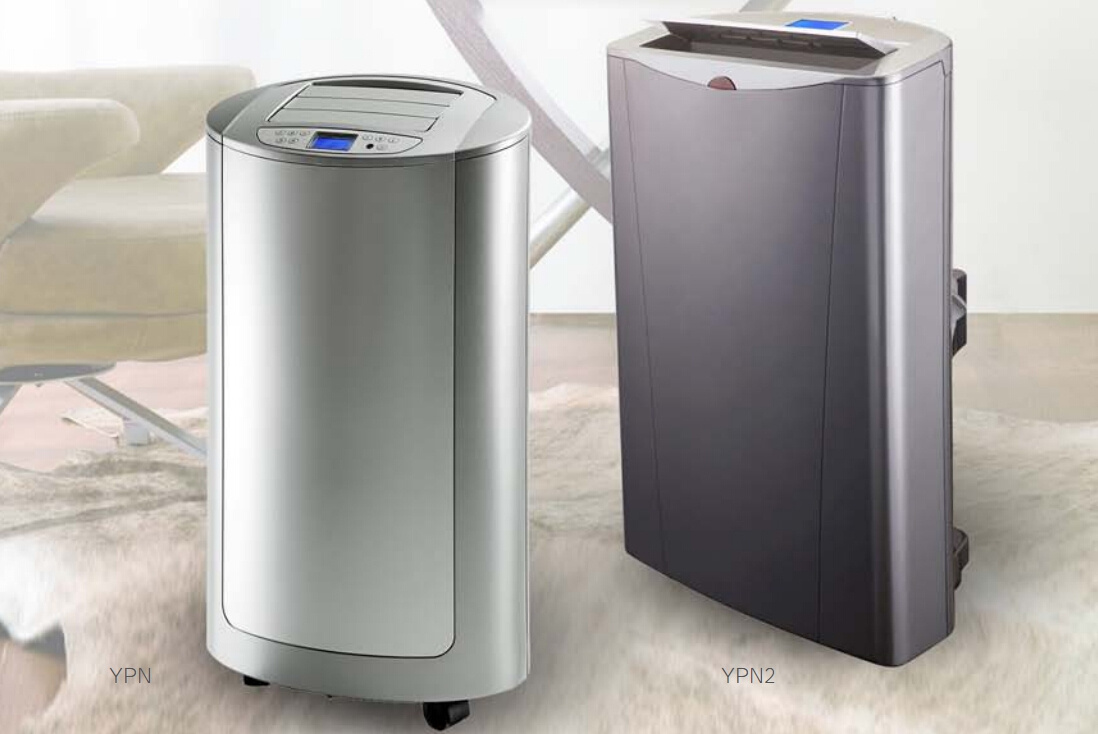

Product Description
Construction Features1. Self-evaporation, new generation. Water generated inside is reused, no need to empty water,power saves.
2. Water disposed by a spraying motor.The machine works perfectly in wet area with high EER.
3. Remote control could be put aside in the small compartment.
4.Power cord and plug could be put into the machine after use.Other Features and Functions1. Rectangular shape looks handsome and silver-printed housing appears luxury.
2. Reversible LCD, indicating temperature and operation status.
3. Anti-frozen function under cooling.
4. Self-diagnosis function and 24 hour On/Off timer.Loading Quantity20"/40"GP/40"HQ: 120/248/371
| Technical Parameters for European Market |
| Model | Unit | YPN/YPN2-09C | YPN/YPN2-09H | YPN/YPN2-12C | YPN/YPN2-12H | YPN/YPN2-15C | YPN/YPN2-15H |
| Cooling capacity | Btu/h | 9000 | 9000 | 12000 | 12000 | 15000 | 15000 |
| W | 2600 | 2600 | 3500 | 3500 | 4400 | 4400 |
| Heating capacity | Btu/h | N/A | 10000 | N/A | 130000 | N/A | 16500 |
| W | N/A | 2900 | N/A | 3800 | N/A | 4700 |
| Power Supply | V~,Hz,Ph | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 |
| Rated input | Cooling | W | 1180 | 1180 | 1355 | 1355 | 1650 | 1650 |
| Rated Current | Cooling | A | 4.5 | 4.5 | 5.8 | 5.8 | 7.3 | 7.3 |
| Rated input | Heating | W | N/A | 1000 | N/A | 1180 | N/A | 1580 |
| Rated Current | Heating | A | N/A | 4 | N/A | 5.4 | N/A | 7 |
| EER for Cooling(R410A) | Btu/W.h | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| W/W | 2.61 | 2.61 | 2.61 | 2.61 | 2.61 | 2.61 |
| COP for Heating(R410A) | Btu/W.h | N/A | 9.6 | N/A | 9.6 | N/A | 9.6 |
| W/W | N/A | 2.8 | N/A | 2.8 | N/A | 2.8 |
| Moisture Removal | L/h | 1.1 | 1.1 | 1.4 | 1.4 | 1.5 | 1.5 |
| Air Circulation | m³/h | 430 | 430 | 435 | 435 | 475 | 475 |
| Noise | High | dB(A) | 56 | 56 | 56 | 56 | 56 | 56 |
| Middle | dB(A) | 54 | 54 | 54 | 54 | 54 | 54 |
| Low | dB(A) | 50 | 50 | 50 | 50 | 50 | 50 |
| Body Size | W×H×D | mm | 330×845×470 | 330×845×470 | 330×845×470 | 330×845×470 | 330×845×470 | 330×845×470 |
| Package Size | W×H×D | mm | 385×874×530 | 385×874×530 | 385×874×530 | 385×874×530 | 385×874×530 | 385×874×530 |
| Net Weight/Gross Weiht | kg | 29/32 | 28.5/31.5 | 33/36 | 33.5/36.5 | 33.5/36.5 | 34/37 |
| Appliation Area | m2 | 14~20 | 14~20 | 18~25 | 18~25 | 396 | 396 |
| Loading Quantity | Set/40"HQ | 396 | 396 | 396 | 396 | 264 | 264 |
| Set/40"GP | 264 | 264 | 264 | 264 | 132 | 132 |
| Set/20" | 132 | 132 | 132 | 132 | 120 | 120 |
| Remarks: 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice. |
| 2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation. |
| Technical Parameters for North American Market |
| Model | Unit | YPN/YPN2-09C | YPN/YPN2-09H | YPN/YPN2-12C | YPN/YPN2-12H | YPN/YPN2-14C | YPN/YPN2-14H |
| Cooling capacity | Btu/h | 9000 | 9000 | 12000 | 12000 | 14000 | 14000 |
| W | 2600 | 2600 | 3500 | 3500 | 4100 | 4100 |
| Heating capacity | Btu/h | N/A | 10000 | N/A | 130000 | N/A | 15500 |
| W | N/A | 2800 | N/A | 3810 | N/A | 4500 |
| Power Supply | V~,Hz,Ph | 110~120,60 | 110~120,60 | 110~120,60 | 110~120,60 | 110~120,60 | 110~120,60 |
| Rated input | Cooling | W | 1000 | 1000 | 1350 | 1350 | 1370 | 1370 |
| Rated Current | Cooling | A | 9.6 | 9.6 | 10.9 | 10.9 | 12 | 12 |
| Rated input | Heating | W | N/A | 900 | N/A | 1280 | 1370 | 1370 |
| Rated Current | Heating | A | N/A | 9.6 | N/A | 10.9 | 12 | 12 |
| EER for Cooling(R410A) | Btu/W.h | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| W/W | 2.61 | 2.61 | 2.61 | 2.61 | 3 | 3.32 |
| COP for Heating(R410A) | Btu/W.h | N/A | 9.6 | N/A | 9.6 | N/A | 9.6 |
| W/W | N/A | 2.8 | N/A | 2.8 | N/A | 2.73 |
| Moisture Removal | L/h | 1.2 | 1.2 | 1.2 | 1.2 | 1.24 | 1.24 |
| Air Circulation | m³/h | 460 | 460 | 440 | 440 | 500 | 500 |
| Noise | High | dB(A) | 56 | 56 | 56 | 56 | 56 | 56 |
| Middle | dB(A) | 54 | 54 | 54 | 54 | 54 | 54 |
| Low | dB(A) | 50 | 50 | 50 | 50 | 50 | 50 |
| Body Size | W×H×D | mm | 330×845×470 | 330×845×470 | 330×845×470 | 330×845×470 | 330×845×471 | 330×845×472 |
| Package Size | W×H×D | mm | 385×874×530 | 385×874×530 | 385×874×530 | 385×874×530 | 385×874×531 | 385×874×532 |
| Net Weight/Gross Weiht | kg | 29/32 | 28.5/31.5 | 33/36 | 33.5/36.5 | 33.5/36.5 | 34/37 |
| Appliation Area | m2 | 14~20 | 14~20 | 18~25 | 18~25 | 25~30 | 25~30 |
| Loading Quantity | Set/40"HQ | 396 | 396 | 396 | 396 | 396 | 396 |
| Set/40"GP | 264 | 264 | 264 | 264 | 264 | 264 |
| Set/20" | 132 | 132 | 132 | 132 | 132 | 132 |
| Remarks: 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice. |
| 2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation. |
