| Prod Model: |
ADL-HP-58/1800-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
85-300L |
| Outer Tank: |
Color coated sheet |
| Outer Tank Thickness: |
0.4mm |
| Inner Tank: |
Sus304-2B stainless steel |
| Inner Tank Thickness: |
0.4mm |
| Insulation Layer: |
55-65mm |
| Frame: |
Galvanized sheet |
| Collector: |
Vacuum tubes |
| Vacuum Tubes: |
High borosilicate glass |
| Angle: |
45 degree |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CE |
Product Description

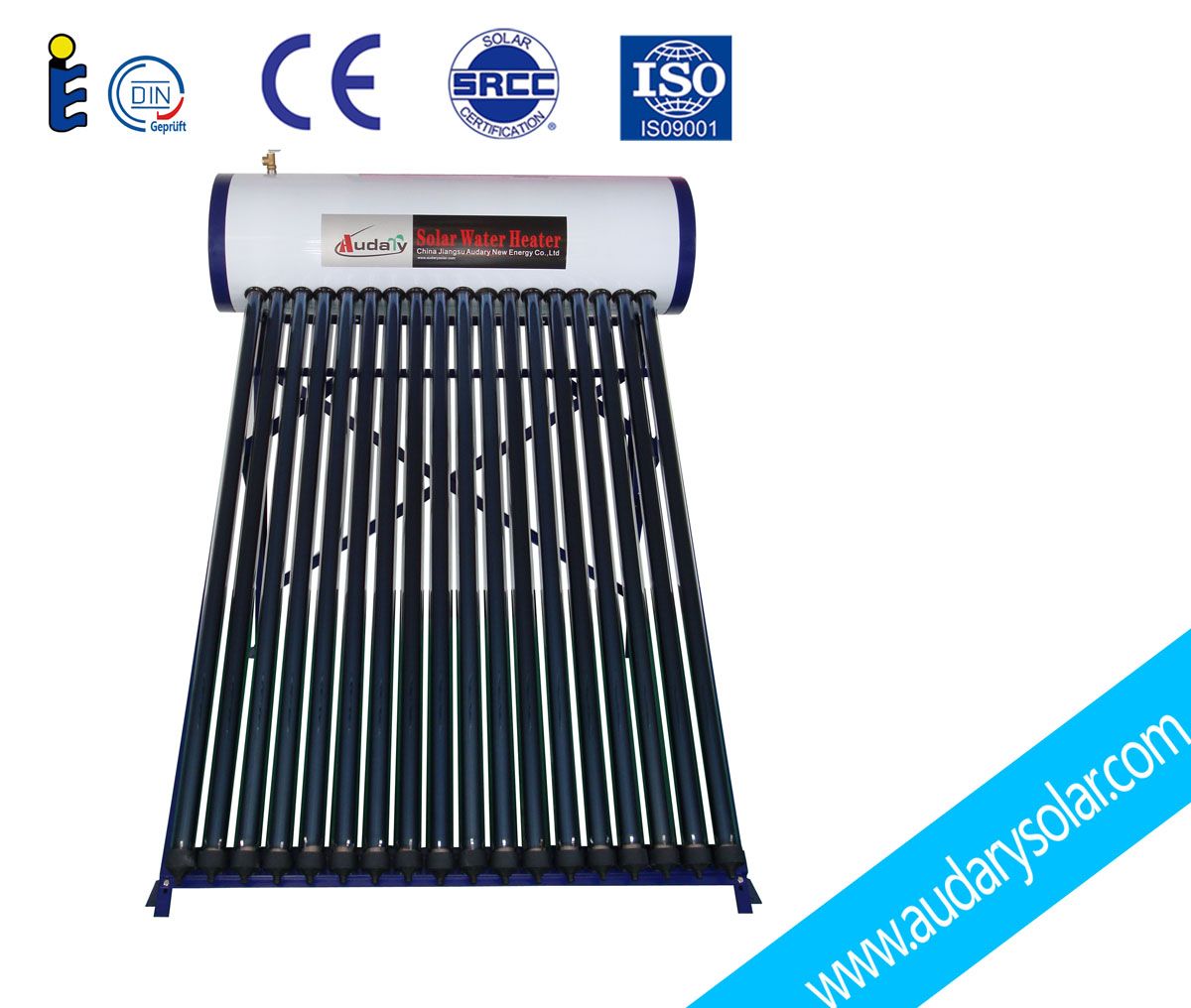

Best China Rooftop Pressurized Solar Water Heater
Features:
1) Pressurized tank, working pressure 6 bar, Max resistance 12 bar.
2) Reliable and efficient twin-glass solar tubes.
3) Copper heat pipes for rapid heat transfer ,No water through the tube,so it can good working in winter without freeze.
4) Easy plug-in installation.
5) Free maintenance.
6) Stable solar conversion during the day.
7) Ideal for home applications.
How it works:
1)Connect with tap water piping directly. Water is fed automatically by the water pressure. The vacuum tubes absorb the sun energy and transfer the heat to the tank via the copper heat pipe and the water temperature of tank is gradually heated.
2)If the water is expand and pressure rise to more than 6 bar. The PT valve will release automatically.
3) The electric heater can be operated for backup heating.
|
Material |
Evacuated tube |
High borosilicate glass, with aluminum absorption layer of magnetron sputtering |
|
Inner tank |
SUS 304-2B food-grade stainless steel, 360mm |
|
Outer tank |
Color coated galvanized steel, 460mm |
|
Bracket |
Galvanized steel with electrostatic plastic-sprayed |
|
Thickness |
Insulation layer |
55mm |
|
Inner tank |
1.2mm |
|
Outer tank |
0.4mm |
|
Bracket |
1.5mm |
|
Accessories |
Fasteners |
Stainless steel screws. |
|
Sealing ring |
Macromolecule silicone rubber. |
|
others |
P/T valve, electrical heater, magnesium rods, relief valve |
|
Specification |
Heat preservation |
72 hours |
|
Hail resistance |
20-30mm |
|
Max Water Temperature |
Can reach at least 95 degree |
|
Circulation |
Indirect /Closed loop (Active) |
|
Heating System |
Thermosyphon (Passive) |
|
Connection Type |
Direct-plug |
|
Absorption Rate |
≥ 0.95± 0.02 |
|
Emission Rate |
≤ 0.20± 0.02 |
|
Vacuum Tightness |
P≤ 5.0*0.0001Pa |
|
Idle sunny property parameres |
Y=220-260. /KW |
|
Certifications Solar |
Keymark, SRCC, SGS, CE, ISO9001 |
|
Warranty |
5 years |
