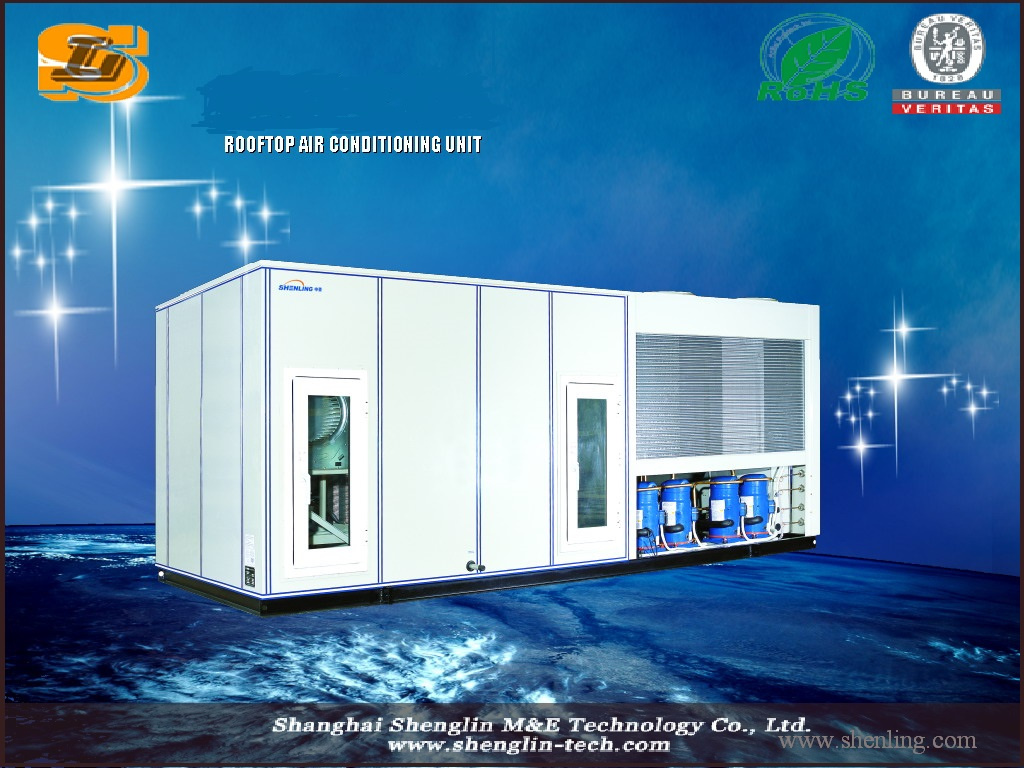

Rooftop Mounted R410A Refrigerator System Air Conditioner

Prod Model:	GTWKR-111
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Rooftop Mounted R410A Refrigerator System Air Cond
Mounting:	Floor Standing
Input Power:	3n-380V
Frequency:	60Hz
Color:	White(According to Customer Requirements)
Compressor:	Efficient Scroll Closed
Refrigerant:	R22/R407c
Function:	Air Handling Unit
Airflow:	Cross Flow
Cooling Capacity:	20kw
Usage:	Air Purifier
Certification:	RoHS
Control Type:	Digital
Display Type:	LCD
Material:	Steel
Type:	Rooftop Air Conditioner
Brand:	Shenglin

Product Description

Rooftop mounted R410A refrigerator system air conditioner

Roof top air conditioning unit Description:

1. Air cooled rooftop air conditioner.
2. Cooling capacity: 8kw to 90kw, a variety of choices.
3. High external pressure.
4. Applicable to residential and commercial buildings, hotels, and scientific research units, factories and enterprises and so on.

Feature:

1. Evaporator: Type Inner grooved copper tube and aluminum fin
2. Fin Type 5* :Slotted fin hydrophilic aluminum fin
3. Condenser: Type Inner grooved copper tube and aluminum fin
4. Fin Type 5* :Rippled hydrophilic aluminum fin
5. Condenser Fan Type: Low noise axial type

Technical data:

GT-WKR Series-Roof Top AH Specifiaction 1
Model    GT-WKR-				10	15	18	20	25	30	35
Specification	Cooling capacity 1*		kW	10.5	15.0	18.5	21.0	26.3	29.8	35.0
	Heating capacity 2*		kW	11.5	15.9	19.5	22.1	27.6	32.6	37.1
	Supply air 3*		m3/h	1800	2400	2900	3500	4500	5000	5800
	Static pressure 3*		Pa	100	150	150	180	200	250	250
	Noise 4*		dB(A)	60	60	62	62	65	65	68
	Power			3N-380V-50Hz
	Total capacity			3.9	5.74	7.0	8.27	9.96	11.0	14.15
	Color			White
ooling system	Compressor	Type		Efficient scroll closed
		Quantity		1	1	1	1	1	1	2
	Supply air fan	Type		Low noise centrifugal type
		Capacity	kW	0.37	0.55	0.75	0.75	1.1	1.5	2.2
	Evaporator	Type		Inner grooved copper tube and aluminum fin
		Fin type 5*		Slotted fin hydrophilic aluminum fin
	Condenser	Type		Inner grooved copper tube and aluminum fin
		Fin type 5*		Rippled hydrophilic aluminum fin
	Condenser fan	Type		Low noise axial type
		Quantity		1	1	1	1	1	1	2
	Refrigerant	Refrigerant		R22/R407C
		Refrigerant control		External balance type thermal expansion valve
Air filter				Initially effect plate filter
Dimensions		L	mm	1400	1400	1600	1600	1850	1850	2200
		W	mm	1050	1050	1200	1200	1400	1400	1800
		H	mm	1050	1050	1050	1050	1200	1200	1520
Weight			kg	200	230	260	300	550	600	850

1.  Cooling condition: Indoor dry bulb/wet bulb:29/19ºC,Outdoor dry bulb/wet bulb:46/24ºC
2.  Heating condition:Indoor dry bulb/wet bulb:20/-ºC;outdoor dry bulb/wet bulb:7/6ºC;
3.  The air volume and static pressure`s specification in the table is standard, and can be designable.
4. Noise data is measured in the front of the units when cooling under the standard air volume.
5. Fin type and material can be designable.


The features of rooftop packaged unit:
Cooling Capacity: Standard Unit from 3 ton (7KW) to 350 ton (105KW).
 High efficiency- provided by the Anti-vibration mounting scroll compressor
 Weather proof
 Quiet operation-With low-noise fan motor and hermetic scroll compressor
with sound insulation system.
 Intelligent control-Parameters of unit are monitored and adjusted by
microcomputer system.

Safety and reliability -Complete unit control function, multi protection, safe
and reliable operation.
 Less space-Super thin indoor unit, high static pressure heads making
distant Blowing realized.
