| Prod Model: |
Rooftop Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor Type: |
Srcoll |
| Type: |
Central Air Conditioners |
| Capacity: |
48000-60000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

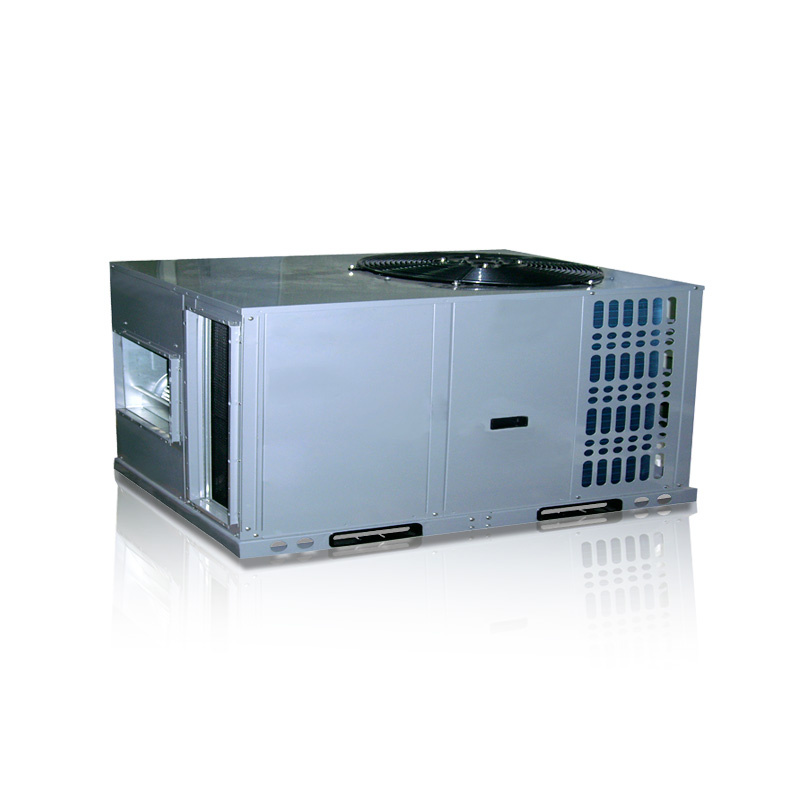

Rooftop Commercial Air Conditioner
1. Easy installation
2. Rooftop package (T1 condition)
3. Scroll type compressor
4. Compact design
5. Weather proof
Feature
1. Cooling capacity: 2.0/3.0/4.0/5.0ton
2. Quiet opeation: With low noise fan motor and hermetic scroll compressor with sound insulation system
3. High efficiency for anti-vibration mounting scroll compresoor
4. Quit start-up is assured once installation is compelete
5. Complete unit control function, multi protection
Specification
Model |
|
|
YRA-60CW |
YRA-60CW-D |
YRA-60HW-V |
Nominal tonnage |
|
|
5 |
5 |
5 |
Power supply |
|
V-Hz-ph |
208~230-60-1 |
208~230-60-3 |
208~230-60-1 |
Compressor type |
|
|
Scroll |
Scroll |
Scroll |
Performance |
Cooling/Heating capacity |
|
Btu/h |
60000 |
60000 |
60000/66000 |
Power input |
|
W |
6100 |
5930 |
6300/5200 |
SEER |
|
|
10 |
10 |
10 |
Nominal CFM(50Pa) |
|
Condenser |
3500 |
3500 |
3500 |
|
Evaporator |
1800 |
1800 |
1800 |
Dimensions |
Net |
Length |
mm(in) |
1030(41) |
1030(41) |
1030(41) |
Width |
mm(in) |
1290(51) |
1290(51) |
1290(51) |
Height |
mm(in) |
830(33) |
830(33) |
830(33) |
Shipping |
Length |
mm(in) |
1085(43) |
1085(43) |
1085(43) |
Width |
mm(in) |
1325(52) |
1325(52) |
1325(52) |
Height |
mm(in) |
865(34) |
865(34) |
865(34) |
Weight |
Net |
|
kg(lbs. ) |
192(423) |
192(423) |
197(424) |
Shipping |
|
kg(lbs. ) |
195(430) |
195(430) |
200(441) |
Qty' Per 20' /40' /40HQ |
|
Pieces |
16/36/54 |
16/36/54 |
16/36/54 |
