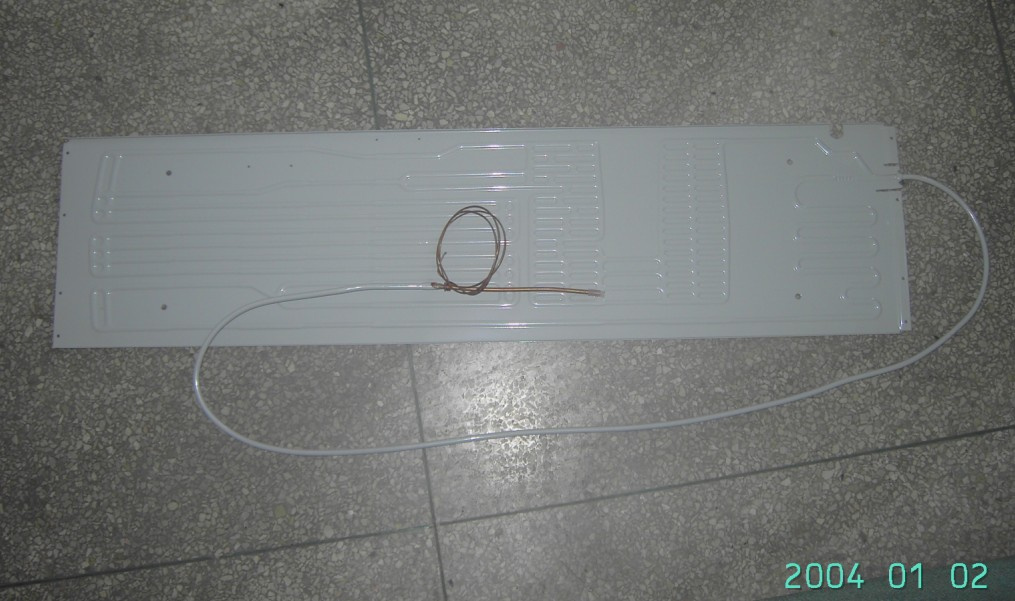

Rollbond Evaporator for Double Door Refrigerator

Prod Model:	evp1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Raw Material:	Aluminium Plate
Max Width:	1031mm
Surface:	Powder Painting
Max Length:	448mm
Structure:	Double/Single/Part Single Side
Impact Of Coating:	50cm.Kg/Cm Impact,No Crack
Certificate:	RoHS
Itme:	Refrigeration Roll Bond Evaporator as Refrigerator
Roll Bond Evaporator:	Refrigerator Evaporator
Refrigeration Parts:	Freezer Parts
Application:	Wine Cooler Parts
Parts:	Evaporator

Product Description

Refrigeration Roll Bond Evaporator as Refrigerator Parts
ROLL BOND EVAPORATOR, EVAPORATOR, REFRIGERATION PARTS, Refrigeration Roll Bond Evaporator,Refrigeration PARTS,
Refrigerator Parts,Refrigerator ROLL BOND EVAPORATOR, Refrigerator EVAPORATOR, Refrigerator Parts,FREEZER ROLL BOND EVAPORATOR, FREEZER PARTS, FREEZER EVAPORATOR, REFRIGERATION ROLL BOND EVAPORATOR,REFRIGERATION EVAPORATOR

Refrigerator parts roll bond evaporator(Inflation evaporator), roll bond evaporator, evaporator, refrigerator parts
Key process: Preparing materials cleaning roughing surface-printing riveting- rolling annealing - blowing up punching folding and sharpening adding the capillary assemble welding leakage testing cleaning and drying coating -curing- inspection packing.

Roll bond plate tube evaporator is made up by two pieces of printed aluminum plates through the crafts contain reunite, roll and blow bulge.
1) Size can up to width 700mm, length 2000mm, thickness of finished plate1.2-1.8mm
2) Surface treatment: No treatment or Powder coating;
3) Inner quality: No leakage. It can meet the requirements of inner cleanliness of CFC refrigerating medium and non-CFC refrigerating medium.
4) We can produce according to the drawings or samples provided by you, also we can help you design and produce different models of roll bond evaporator.

Now it is popular in Nigeria, Morocco, Pakistan, Egypt and other maintenance markets.
We are very familar with these markets now.

material Al-plate: finished products thickness: 1.1 2.0mm, raw material Al plate thickness: 1.4 2.5mm Structure   Double side rollbond evaporator,   single side rollbond evaporator,   part single side rollbond evaporator Key process Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing Technical Standards 1) Size: width 590 (max), length 2050 (max) 2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator. Performance 1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R134a & CFC cooling system. 3) Can satisfy the cooling capability requirements. Capacity 3.5 million sets per year (10000 sets per day)

R134a Cooling System Tube Inside standards

Residual moisture ≤5 /100cm3 Residual impurity ≤1 /100cm3 Residual mineral oil ≤100 /100cm3 Residual chlorine ≤5vloppm Residual paraffin ≤3 / Biggest single impurity ≤0.5mm

Specification of coating

Coating thickness thickness of coating40 90 μ m Hardness of coating ≥2H Impact of coating 50cm?kg/cm impact, no crack Adhesion of coating ≥two grade Flexibility of coating Around R=3D bend 180?, no crack or no fall off Color tolerance of powder painting
