| Prod Model: |
800x900mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Size1000*2000: |
White & Black |
| Size: |
Width 1000(Max), Length 2050(Max) |
| Impact Of Coating: |
50cm Kg/Cm Impact, No Crack |
| Adhesion Of Coating: |
≥two Grade |
| Certification: |
SGS |
| Condition: |
New |
| Type: |
Refrigerator |
| Cooling Water: |
Refrigerant |
| Application Fields: |
HVAC |

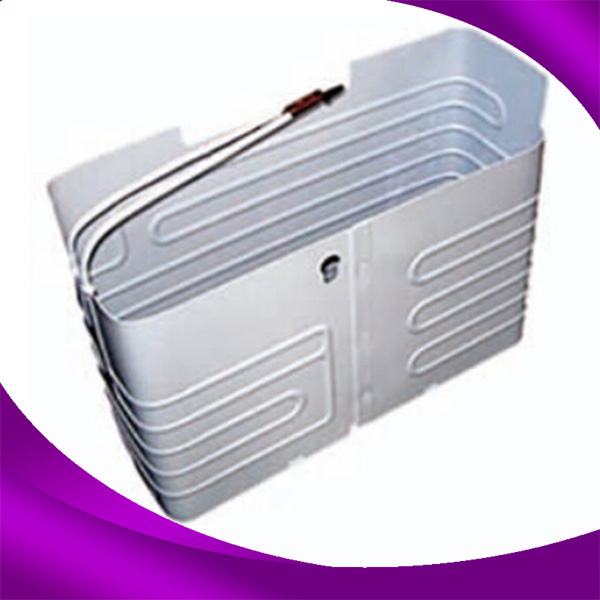

Product Description
Raw material: Al-plate: Finished products thickness: 1.0~2.0mm
Types:
1) Double side rollbond evaporator
2) Single side rollbond evaporator
3) Part single side rollbond evaporator
Technical Standards:
1) Size: Width 1000(max), length 2050(max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance:
(1) Surface treated with powder painting to prevent the corrosion
(2) Inner cleanness can meet the requirement of R134A & CFC cooling system.
(3) Can satisfy the cooling capability requirements
Production Capacity:
15000PCS/day, at least 3.5 million PCS yearly.
| R134a Cooling System Tube Inside standards | Specilication of coating |
Residual moisture ≤5mg/100cm3
Residual impurity ≤1mg/100cm3
Residual mineral oil ≤100mg/100cm3
Residual chlorine ≤5vloppm
Residual paraffin ≤3mg/m2
Biggest single impurity ≤0.5mm | Coating thickness: thickness of coating40~90μm
Hardness of coating: ≥2H
Impact of coating: 50cm·kg/cm impact, no crack
Adhesion of coating: ≥two grade
Flexibility of coating Around R=3D bend 180°, no crack or no fall off Flexibility of coating Around R=3D bend 180°, no crack or no fall off |
About us
Changzhou Fengrun Import and Export Co., Ltd. is a professional manufacturer of evaporator & condenser for air-conditioner and refrigerator; Steel tube and other cooling system products.
Currently Fengrun has 22 production lines for evaporator & condenser of air-conditioner, the annual production cpacity is able to reach 4 million PCS, which is the largest production base in China. Under this condition, Fengrun also owns a rollbond workshop with annual capacity 3.5 million PCS, a wire on tube condenser workshop with annual capacity 2.5 million PCS, a wire on tube evaporator workshop with annual capacity 2.0 million PCS, a no-frost(fin type) evaporator workshop with annual capacity 1.0 million PCS.
Otherwise, Fengrun owns a workshop which produces steel tube 30 thousand ton per year and also has sone equipments which can produce copper products such as three-way, three-claw, elbows 3 million PCS and Cu-AL connecting tubes 600 thousand PCS per month.
