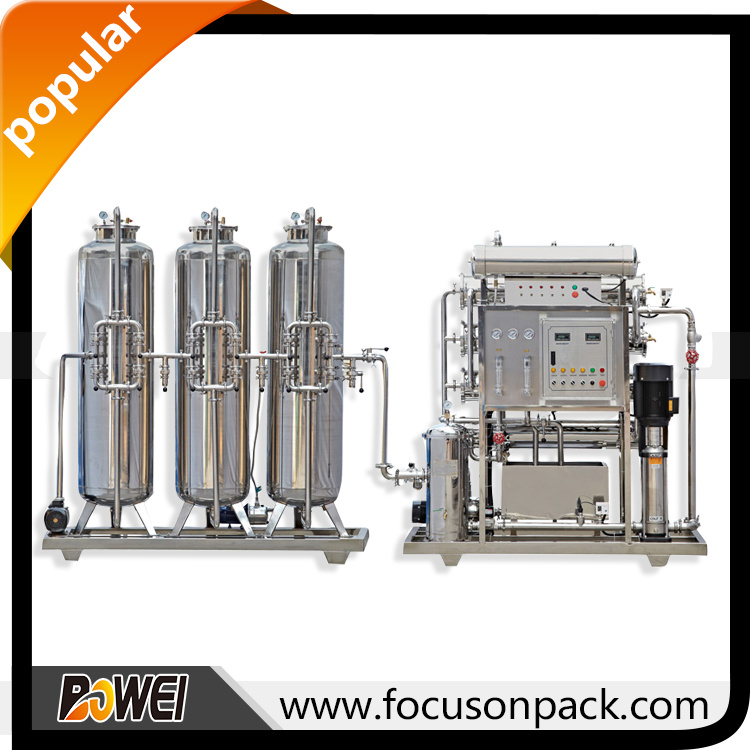

RO Drinking Minaral Water Purifier

Prod Model:	WT-RO-5T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	5ton/Hour
Power:	6.6kw
Voltage:	220V/50Hz
Skid Frame:	Ss304
Low Pressure Piping:	Ss304
High Pressure Piping:	Ss304
Name:	RO Drinking Minaral Water Purifier
Type:	Reverse Osmosis
Usage:	Environmental Protection
Motive Force:	Electric power

Product Description

RO Water Purifier

How the RO Water Purifier Works


1.A semi permeable membrane in a reverse osmosis system only allows certain things to pass through.
2.This membrane passes water easily but also prevents many other contaminants from passing by trapping them.
3.Water is normally on both sides of the membrane, the water on each side has a different concentration of dissolved minerals.
4.The water in the less concentrated solution tries to dilute the more concentrated solution.
5.Water will pass through the membrane from the lower concentration side to the greater concentration side.
6.The osmotic pressure (see diagram) created by the difference in water levels, will counter the diffusion process forming an equilibrium between the two sides.


RO Water Purifier Technical route and flow diagram instructions
The technical route is as following.
Raw tank-->Booster pump -->Quartz sand filter-->activated carbon filter--->Anti-scalant dosing-->Sediment filter-->High pressure pump-->Reverse osmosis desalination device-->Permeate tank




Materials of Construction
Skid Frame: SS304
Membrane Elements:Hydraulics CAP3-8040
Membrane Housings: SS304
Low pressure piping: SS304
High pressure piping: SS304
Pump and Motor
Pump: 304SS vertical multi-stage centrifugal
Motor: TEFC, 380/460 VAC, 3-phase, 50/60 Hz.
Standard Features
8" x 40" High rejection membrane elements
5-micron sediment pre-filter housing
Automatic inlet solenoid valve
PLC control
Product water conductivity monitor
Operating pressure gauges
Product and concentrate flow meters
Concentrate and recycle flow control valves
Low inlet pressure switch with shutdown alarm
Auto/Manual wash
Capacity:500-50000Liter per Hour
SS304 construction
USA Brand Hydraulics membrane
SS304 membrane housing
SS304 piping and fitting
Multi-stage SS304 high-pressure centrifugal pump
Schneider,Siemens electronic parts
Nominal Recovery:65-75%
Nominal Salt Rejection:99.60%
Auto/Manual backwash
Low inlet pressure switch with shutdown alarm
Option:Ozone generator,UV,Storge tank etc.


Optional Equipment Available
Atmospheric storage tanks with level control and repressurization pump
Pressurized storage vessels
UV
Ozone generator
Membrane clean-in-place (CIP) systems
Pretreatment chemical injection systems



Model No	WT-RO-5000
Capacity	5000LPH(Liter per Hour)
Nominal Recovery	65-75%
Nominal Salt Rejection	99.60%
Operating Temperature	15°C-45°C
Design Temperature	25°C
Feed Pump	1.10KW
High Pressure Pump	5.50KW
Voltage	220V /380V/460V - 50Hz/60Hz
