Riotouch IR Multi Large Size 55 Inch Multi Touch Screen Overlay for School

Prod Model:	NL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Interface Type:	USB
Certificate:	CE&RoHS&FCC
Size:	Full Range of Size
Touch Points:	2, 6, 10 Points
Type:	Infrared, Infrared
MOQ:	1 PCS
Software:	Free Education Software and Update
Resolution:	1920*1080
Services:	OEM&CKD&SKD
Key Words:	55 Inch Multi Touch Screen Overlay
Aspect Ratio:	16:9
Application:	Education and Training System
Screen Type:	Infrared
Customized:	Customized
Screen Size:	32",37",40", 42", 46", 47", 50", 52", 55", 58",60"

Product Description

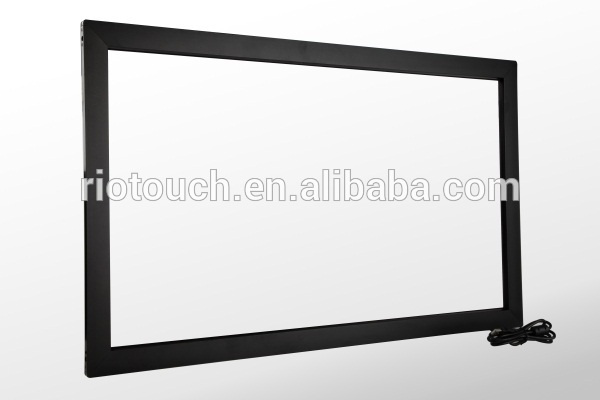

                        Riotouch IR multi large size 55 inch multi touch screen overlay for school
Product Description
Specifications
IR(Infrared) Multi Touch Frame(Screen):
Dust and water proofing, anti-vandal;
Stable and no drift;
No light spots;
High durability

IR/Infrared multi touch screen frame/bezel/panel  (Supply multi touch driver for WINDOWS, MAC, ANDROID 4.0 or better, Linux 4.0 OS or better and 2 kinds multi touch software for our multi touch frame, they are free!!!)

Touch screen overlay can transform your LCD/LED Screen or projection surface into an interactive touch screen. The screen overlay is integrated with a printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the overlay. The photo transistors can detect the IR light beams interrupted by touch and transmits a signal identifying the relevant x and y axes coordinates to the PC. By our product, human computer interface can be realized just beyond your imagination.


Infrared Touch Panel using solid structure is to fit a variety of large-size and large size displays designed to touch the new program, used to large-size displays such as LCD, PDP, rear projection, etc. into a large interactive display device.

 Infrared Touch Panel is not only with other products the same characteristics, but also with uniform resolution, installation of small size, resistant to light interference, the advantages of long life. Anti-scratch, users touch the surface of Touch Panel operation, without damaging the display surface of the screen resolution will not be affected, there is high demand for the industry provides an ideal solution.

  Infrared Touch Panel with large-size display may be composed of the best interactive system, access network if the computer can be composed of real-time, interactive and efficient conferencing systems.
Advantages
1. Infrared finger touch, Plug-and-play HID device;
2. Power by USB, easy and save;
3. 10 points writing touch without driver, with driver could be 32 points touch;
4. Win7, Win8, Mac, Linux, Android OS (Linux just for single touch);
5. Free education software and update;
6. Different size for choose, from 32" to 200";
7. Support zoom in/out, display rotation and other win7/8  Gesture recognition;
8. Easy to add on the normal TV(using double-tape or fixed bracket);
9. More......
The Touch specification:

Touch Technology	Infrared touch technology
Touch mode	2 points, 10 points, 32 points fingers touch
Inductive objects	Fingers, pens or any other opaque objects
Inductive size	Diameter≥5mm
Resolution	32768*32768
Response time	1) First dot(click):8ms, continuously(writing):3ms 2) multipoint click:first dot(click):8ms,continuously(writing):8ms 3) Mouse click:first dot(click):8ms,continuously(writing):8ms
Cursor speed	UP to 300 dots/s     Multipoint,mouse click:125 dot/s
Operating life	≥60,000,000 times to click
Power	USB power supply (4.6-5V, DC)
Power consumption	≤1w
Operation Systerm	Windows 8, windows 7, Mac, Linux
Calibration	HID devices standard, accord with Win7/Win8 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration.
Anti-light decay function	Anti-light decay circuits to prevent the performance degradation caused by long working hours
LED Test Software	Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions
Antilight interference function	can work properly in direct sunlight condition

Certification
Our touch screen kits have been passed CE, RoHS and FCC and the touch screen monitors with touch screen kits also with these Certification.

Packaging & Shipping:
Package : 1 Set / carton ( carton Inside +wooden carton outside )
Delivery time: 4-10 working days after the payment

Our Services:
1.We supply Education Software for free if you buy the Touch screen monitor or Interactive Whiteboard from Riotouch.
2. We will supply Software OEM Service for our VIP customer (The customer who order above 100pcs whiteboard or 20pcs touch monitor could be our VIP customers)

3.Cheaper Price with high quality products.
4.Fast delivery and excellent sale and after-sale service
5.3 years warranty of touch frame is guaranteed
FAQ
1. Q: Are you a factory?
A: Yes, we are a factory, we have our own production line.
2. Q: what's your products' quality control?
A:  Our tenet is "Quality first, Prestige first". We are pay more attention to the beginning till the very end of the production. Our products have passed the CE & ROHS & ISO & FCC etc. certification.
3.  Q: What's your after-sale service?
A:  We can offer 100% guarantee on our product. If any problems, you will get our reply within 24 hours.
4.  Q: What's your  MOQ?
A: Generally, our MOQ is 1 pcs. But the order quantities are bigger, the discounts are bigger.
5. Q: Could you offer the OEM service?
A: Yes, we can provide the OEM service if our customer requested.
6. Q: How about the delivery?
A: The delivery would be with in 3-15 days according to the order quantity and size of the items.
