| Prod Model: |
HV65K-N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Touch Screen Monitor Size: |
50" 65" 70" 84" |
| Touch Points: |
2 10 Points Touch |
| LED Panel Brand: |
Cmo Auo LG Sharp |
| LED Resolution: |
1024 X 1080 |
| Whiteboard Touch Technology: |
Infrared IR |
| Touch Resolution: |
32767 X 32767 |
| PC Connection: |
International OPS Mini PC |
| Touch Frame Warranty: |
3 Years |
| Screen Size: |
>60 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Resistive Touch Screen Type: |
Infrared |
| Customized: |
OEM Is Available |
Product Description

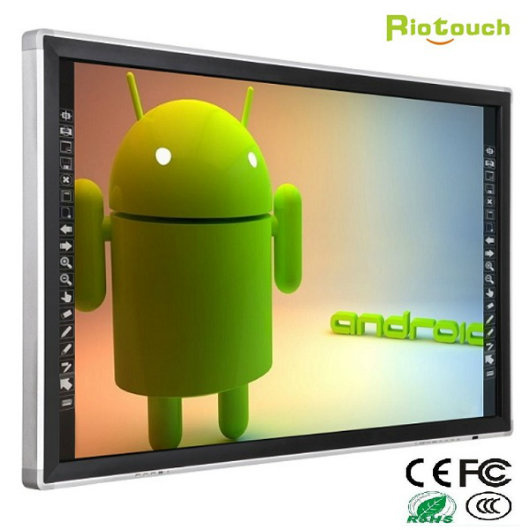

Riotouch 65" 10 Fingers Write Education Advertising Smart Board LED Infrared Multi Touch Screen Monitor
Riotouch LED Touch Screen Monitor Main Features : 1. Level A LED panel imported from Taiwan CMO , Support FHD .
2. Easy for maintain , detachable touch frame , can fix the touch frame if touch get problem , helps save lots of energy and cost in after-sale .
3. International OPS mini PC connection , all cables are built-in monitor except the power cable , much safer for the users , and looks more gracious .
4. 3 years warranty for touch frame , 1 year for other parts , etc
Details for LED touch screen monitor : | LED | LED panel size | 65 inch |
| LED brand | CHIMEI(CMO) |
| Packing Parameters | Enternal Size | 1599.4*902.4*77.2mm |
| Touch Size | 1502.8*807.7 |
| Net Weight | 55KG |
| Gross Weight | 75KG |
| Package size | 170*26*110cm |
| Package size with wooden box | 178*33*123cm |
| Power Parameters | Power: | <160W |
| Standard Power | <0.73W |
| Display Parameters | Active Display Area | 1428.48 (H) x 806.1 (V)mm |
| 0.630(h)x0.630(v)mm |
| Display Colors | 1.07 billion colors |
| Contrast | 1600:1 |
| Resolution | 1920x1080pixel |
| Brightness | 300cd/m2 |
| Viewing Angle | 176 degree |
Touch
parameters | Touch Technology | Infrared touch technology |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger, pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 32767*32767 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:firstdot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux, Android |
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Antilight interference function | can work properly in direct sunlight condition |
| Standard Accessories without PC | Remote Control | TV Remote control |
| Power cable | 1.5m |
| HDMI cable | 1.5m (without PC) |
| VGA Input port | 1.5m (without PC) |
| USB | 5M cable (Without PC) |
| Audio Cable | 1.5m |
| CD | 1 PCS |
| Pen without ink | 2 PCS |
| Warranty Card | 1 Pcs |
| User manul | 1 PCS |
| Wall brackets | Screws, wall mount kits |
FAQ :1. Q: What's the warranty and service?
A: We provide OEM and ODM customized service,3 years warranty for SKD,1 year warranty for others
2. Q: How to assemble and use the products?
A: Please check the user's manual for reference
3. Q: Whether to provide any teaching software?
A: Yes, we provide free education software
4 Q: How to make the order?
A: Send detailed inquiry to us, then we will reply you with the Proforma Invioce. Make the payment after you confirm the PI. We ship out the products by express or by sea within 4-7 days after we receive the payment. Then you will get the cargos soon.

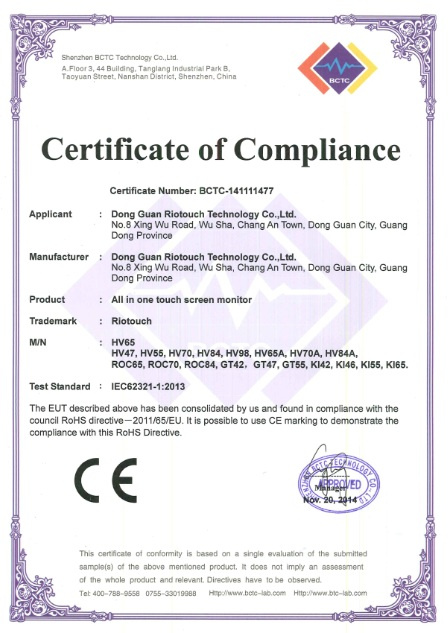

Certification for Riotouch Touch screen monitor :
Link can check our touch screen monitor online :
https://www.youtube.com/watch?v=rdbvTWSjIzY&feature=youtu.be
Riotouch 65" 10 Fingers Write Education Advertising Smart Board LED Infrared Multi Touch Screen Monitor
RioTouch is a professional manufacture of infrared touch screen, infrared frame, interactive whiteboard and touch screen kiosks. Also we have an enthusiastic team to provide you with solutions in many fields like hometheater, education, corporation, training and games. We aim to make everything easy and help you to turn your ideas and designs into reality.
RioTouch future research willmainly concentrate in the visual multi-touch technology development, interactive educational software development, interactive applications softwaredevelopment.
Riotouch is committeed to be:
1. Professional provider of human-computer interactive techniques.
2. China leading Infrared interactive whiteboard technology solution provider.
3. China leading infrared whiteboard SKD supplier.
4. China leading touch screen manufacturer
