| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heating Element: |
Coil |
| Certification: |
UL |
| Installation For Induction Cooker: |
Built-in |
| Housing: |
Plastic |
Product Description
1. Approval & Cerificates: TUV, UL, CE, RoHS
2. Type: Timer switch
3. Running time: 30min-12hours
4. With motor
Description

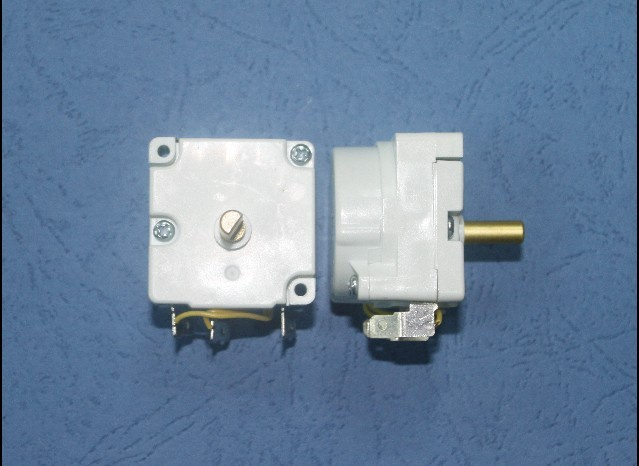

1. Name: Electric pressure cooker timer with metal shell motors
2. Time setting range: 30minutes, 90min, 120min, 4H, 12H
3. Working environment: T120
4. Rated voltage/current/frenquency: 130V/250V, 50/60Hz, 15A
5. It is made of metal and drive by motor,
6. This timer have same function which oven timer.
Application
Electromechanical timers make use of both an electric motor to generate the movement and a mechanical device to manage all the other functions Time: 30min, 45min, 60min, 90min, 120min, 4H, 12H more famous in the world.
Specifications
1. Setting time: 30min-12H
2. Rate Voltage/Current 250V 15A 50Hz
3. Tempreature: -10° C-120° C
4. Operate diraction CW
5. Operation Torque: ≤ 0.9N. M
6. Insulation Resistance: ≥ 100MΩ
7. Electric strength AC 2700V/S 50Hz
8. Motor power ≤ 3W
9. Working angle 270 degaree
10. Life more than 10000times
Hangzhou Tianma Time-Control Si-Tech Co., Ltd has 26 years experience of making mechanical timers for major appliance suppliers in China. We do most merchanical Timer and except customization from our clients. Our previous name was Hangzhou Tianma Timer Factory which was found in 1986. Now we owns 29, 000m2 assembly building, 1, 500m2 office building, 8 management departments, around 1, 000 employees, 8 branches, 24 production lines, 80 injection molding machines, 90 fine machining tools, 1 R&D center and 1 modern facilities detection laboratory. With ISO9001 Quality Management System, the company has established complete quality management system.
Relying on scientific management and strict quality control, the company has developed to be a large scale manufacturer with technology as orientation, organization as vein, management as means, quality as lifeline, site as background and production as result. The company can reach over 10 million annual production capacity and 100 million production value.
