| Prod Model: |
RG104XA02CW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
10.4" |
| Resolotion: |
1024*768 |
| Luminance: |
400 CD/M2 |
| Contrast Ratio: |
500:1 |
| Active Area: |
211.2*158.4mm |
| Outline Size: |
236*174.3*7.4mm |
| Viewingangle: |
75/75/70/70 (Typ. )(Cr≥ 10) |
| Operation Temperature: |
-20 ~ 70 ° C |
| Electrical Interface(Data): |
Lvds |
| Colors: |
262k |
| Application: |
Industrial or Medical Display |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Optimum Resolution: |
1024x768 |
| Type: |
TN |
| Widescreen: |
Not Widescreen |
| Response Time: |
25ms |
| 3D: |
Not 3D |
| Screen Size: |
10.4" |
| Interface Type: |
Lvds |
Product Description
HS: 8528511000
Spc: ODM 10.4" tft lcd panel 1024*768 Industrial or Medical display
Additional Comment:
Basic Information:
LCD type: a-Si tft lcd
Operation Temperature(° C): -20 ~ 70 ° C
Storage Temperature(° C): -30 ~ 80 ° C
Merchanical Features:
Surface : Anti-Glare ,Hard coating(3H)
Form Factor: Flat Rectangle Display
Pixel Pitch: 0.264*0.264mm (H*V)
Holes & Brackets: Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
Weight: 288g
Landscape or Portrait: Landscape type
Optical Features:
Display Mode: TN Normally White
Color GamutL: 50% NTSC (CIE1931)
White color Chromaticity: Wx:0.309; Wy:0.334

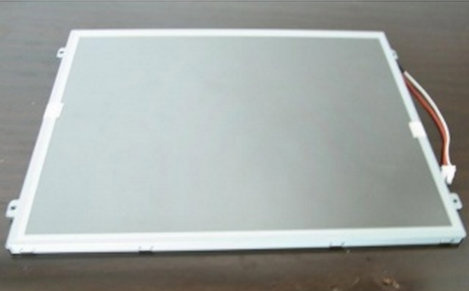

Sample picture:

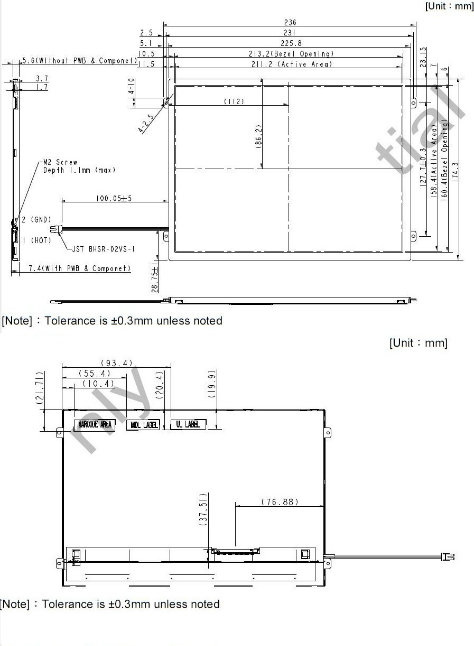

Merchanical Drawing:
