| Prod Model: |
RG070TN92-01CP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7 |
| Resolotion: |
800X480 |
| Luminance: |
450CD/M2 |
| Contrast Ratio: |
500:1 |
| Aspect Ratio: |
16: 9 |
| Active Area: |
154.08X85.92mm |
| Response Time(Ms): |
10/15(Yp. )(Tr+Td) |
| Viewingangle: |
T/B/L/R 50/70/70/70 |
| Operation Temperature: |
-20 ~ 70 ° C |
| Storage Temperature: |
-30 ~ 80 ° C |
| Usage: |
Car Monitor |
| Touch Screen Type: |
Capacitive |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Digital LCD Module Type: |
TFT LCD |
| Type: |
LCM+CTP |
Product Description
Product Description
RG-070TN92-01CP is a TFT-LCD module. It is composed of a TFT-LCD panel,driver IC, FPC,a back light unit. The 7.0" display area contains 800 x 480pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.
Specification
LCD Type: TFT
Display color: 16.7M
Viewing Direction: 12 O'Clock
Gray scale inversion direction: 6 O'Clock
Operating temperature: -20~+70 ºC
Storage temperature: -30~+80 ºC
Active Area(W×H) :154.08X85.92 mm
Number of Dots: 800×480 dots
CTP controller: FT5426
Power Supply: Voltage 3.3 V
Backlight: 3X9-LEDs (white) pcs
Interface: RGB888 -

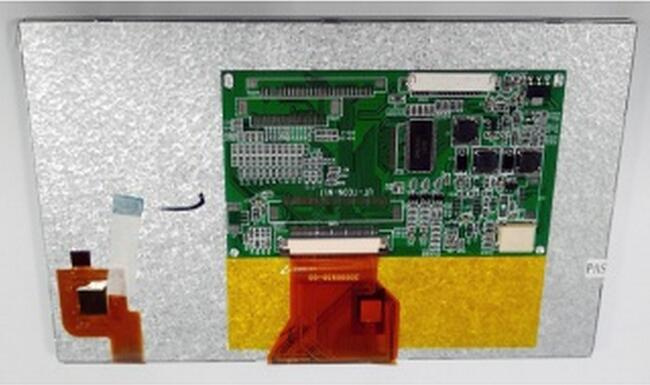

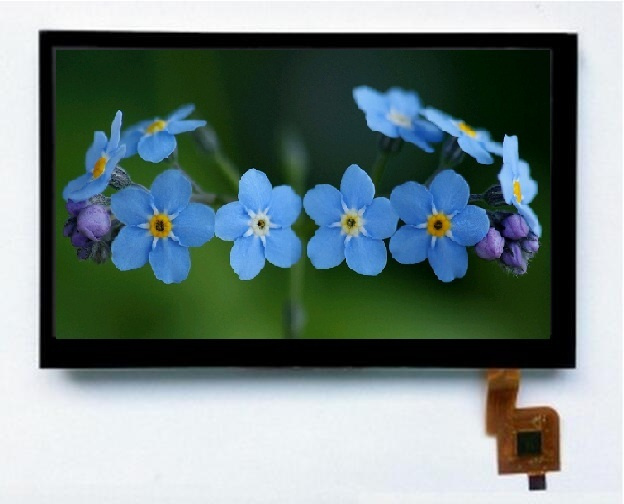

Product Pictures

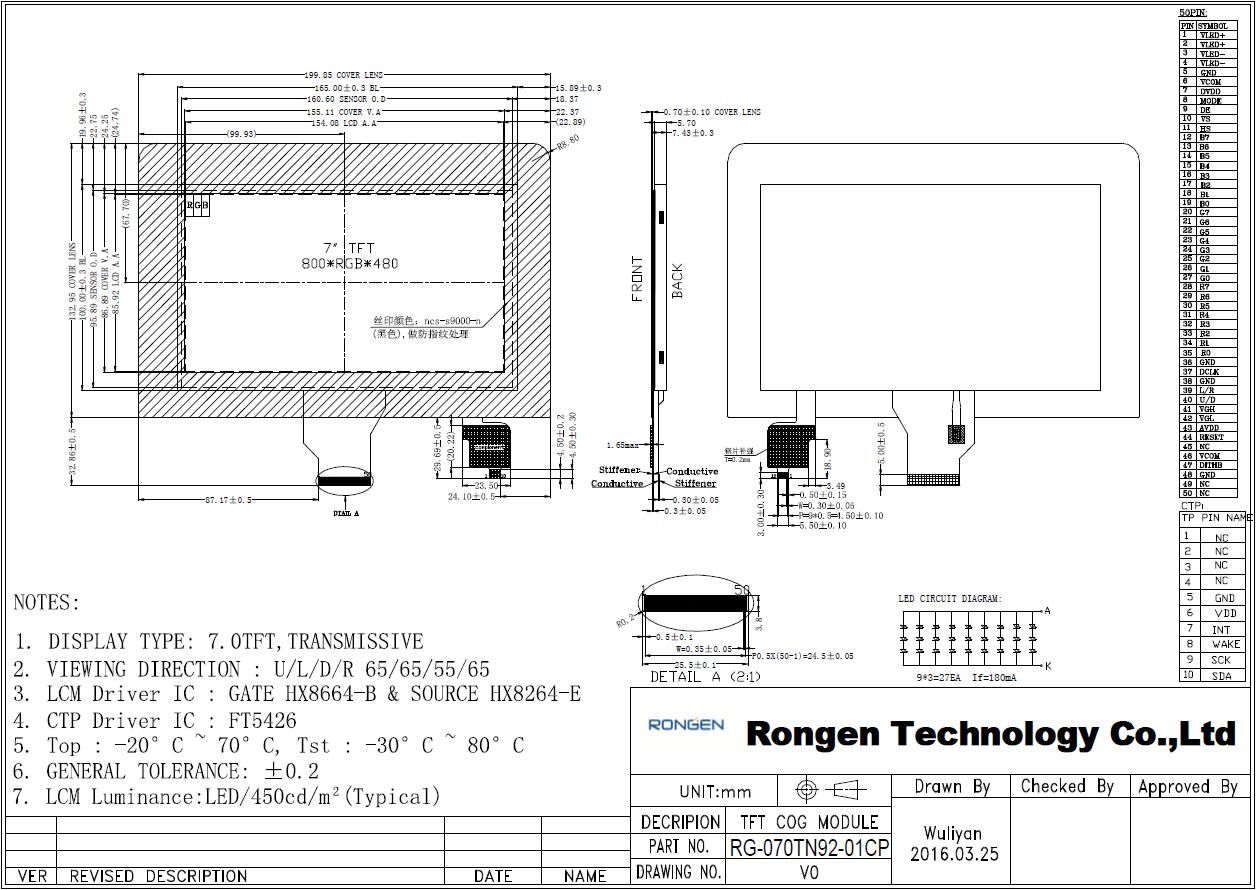

Mechanical Drawing
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
