| Prod Model: |
RG-T800MIXH-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
1024X600 |
| Contrast Ratio: |
700: 1 |
| Luminance: |
450CD/M2 |
| Outline Size: |
192.8*116.9*6.4 |
| Active Area: |
Active Area |
| Pin: |
40 Pin Soldering Type |
| Colors: |
16.7m |
| Operating Temperature: |
-20~70 |
| View Direction: |
6:00 |
| Display Mode: |
Normally White |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
20ms |
| 3D: |
Not 3D |
| Screen Size: |
8" |
| Application: |
Digital Photo Frame, Portable DVD Player |
| Optimum Resolution: |
1024*600 |
| Interface Type: |
Digital |

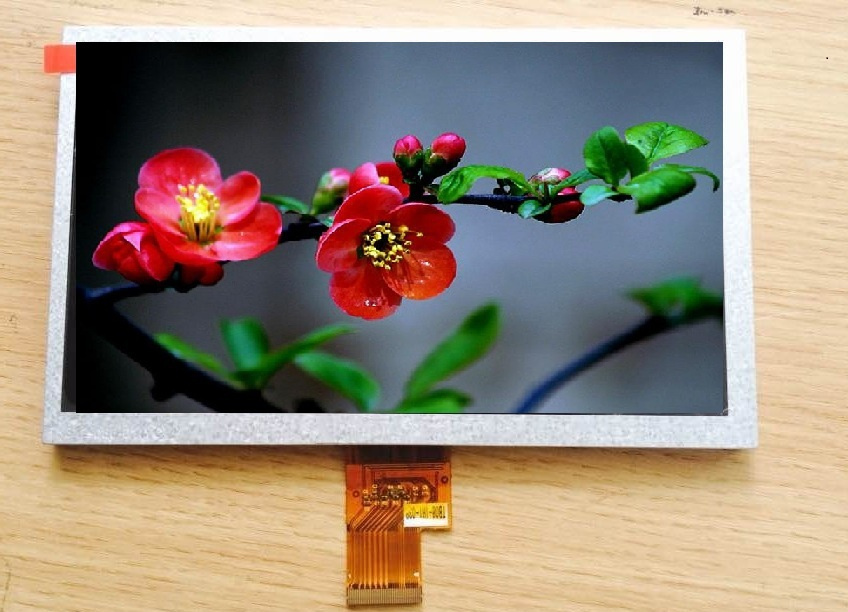

Product Description
Product Description
Double display structure: TFT Module + FPC +BL
1024 dot-source and 600 dot-gate outputs;
16.7M Color;
White LED back light;
Digital interface;
General Data List:1 LCD size 8.0 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 1024 x 3(RGB) x 600
4 Display mode Normally White
5 Dot pitch 0.1725(W) x 0.1656(H)
6 Active area 176.64(W) x 99.36(H)mm
7 Module size 192.80(W) x 116.90(H) x 6.40(D) mm Note 1
8 Surface treatment Plain
9 Color arrangement RGB-stripe
10 View Direction(Gray Inversion) 6:00 O' Clock
11 Interface Digital
12 Backlight power consumption 2.574W (Typ.)
13 Panel power consumption TBD W(Typ)

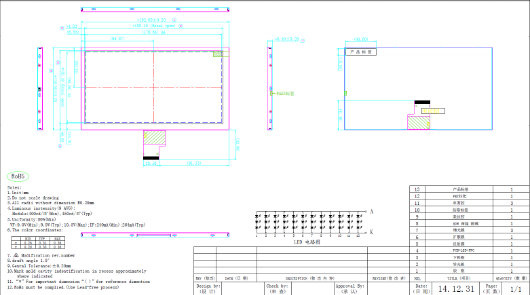

14 Weight 196g (Typ)Merchanical Drawing:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.
Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.
Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.
Further more, each unit bears SGS, TUV and RoHS marks.
The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.
Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
