| Prod Model: |
RG-T430MTWH-06P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Luminance: |
350CD/M2 |
| Contrast Ratio: |
500: 1 |
| Interface: |
RGB 24 Bits |
| Outline Size: |
105.5X67.2X4.1 mm |
| Active Area: |
95.04X53.86 mm |
| Pin: |
40 Pin Soldering Type |
| Colors: |
16.7m |
| View Angle: |
6:00 |
| Operating Temperature: |
-20~70 |
| Storage Temperature: |
-30~80 |
| Application: |
PDA |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
25ms |
| 3D: |
Not 3D |
| Interface Type: |
FPC |
| Screen Size: |
4.3" |
| Optimum Resolution: |
480*272 |
Product Description
Product Description
4.3" tft lcd module with touch panel
Double display structure: TFT Module + FPC +BL+TP
Transmissive Type LCD
480 dot-source and 272 dot-gate outputs;
16.7M Color;
White LED back light;
24 bits RGB interface;
LCD Type :TFT Transmissive/Normal White ---
Driver element :a-Si TFT Active matrix
Number of Dots :480*(RGB)*272 Dots
Pixel Arrangement :RGB Vertical Stripe
Active Area :53.86 *95.04 mm
Viewing Direction :6 O'clock
Driver IC :HX8257A
Module Size(W*H*T) :67.2x105.5x4.1 mm
Approx. Weight :TBD g
Back Light :White LED
System interface :24 BITS RGB interface

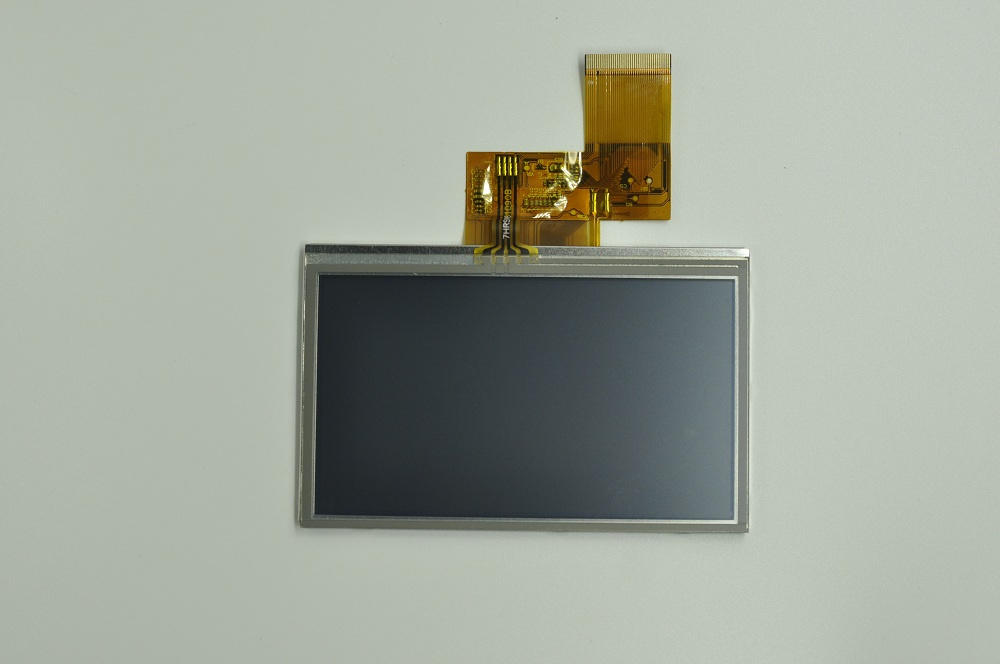

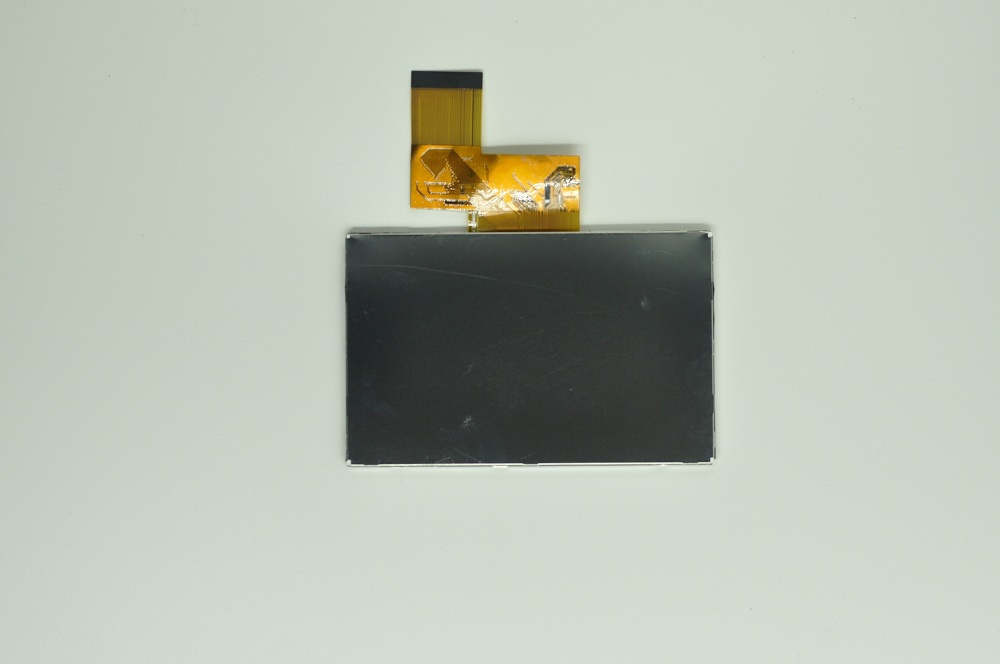

Product Pictures

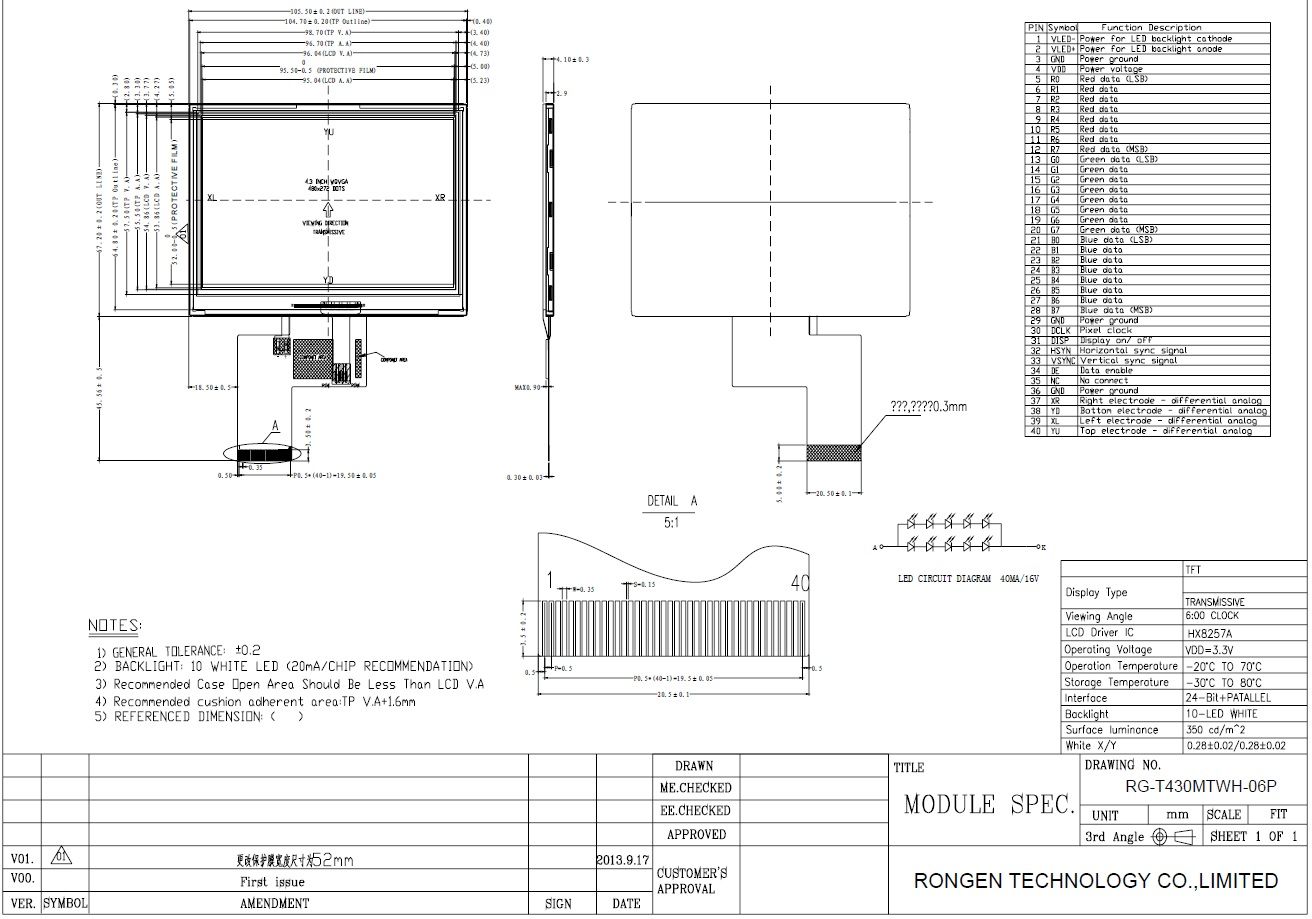

Merchanical Drawing
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.
Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.
Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.
Further more, each unit bears SGS, TUV and RoHS marks.
The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.
Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
