| Prod Model: |
RG-T090BAE-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
9" |
| Resolution: |
1024*600 |
| Luminance: |
300 |
| Contrast Ratio: |
500:1 |
| Viewing Angle: |
65/65/55/65 |
| Transmittance: |
5.11% |
| Pin: |
40pin |
| Operating Temperature: |
-20~70 |
| Storage Temperature: |
-30~80 |
| Backlight: |
3X9-LEDs (White) |
| Application: |
GPS Monitor |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Screen Size: |
9 Inch |
| Optimum Resolution: |
1024*600 |
| Interface Type: |
Digital, Parallel 8-Bit RGB |
Product Description
Product Description
RG-T090BAE-01 is a TFT-LCD module.
It is composed of a TFT-LCD panel,driver IC, FPC, a back light unit.
The 9.0inch display area contains 1024 x 600 pixels andcan display up to 16.7M colors.
This product accords with RoHS environmental

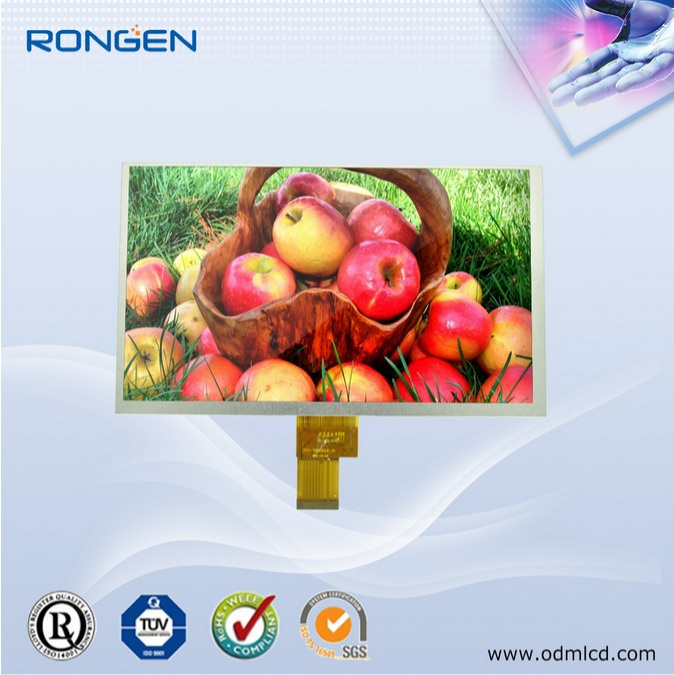

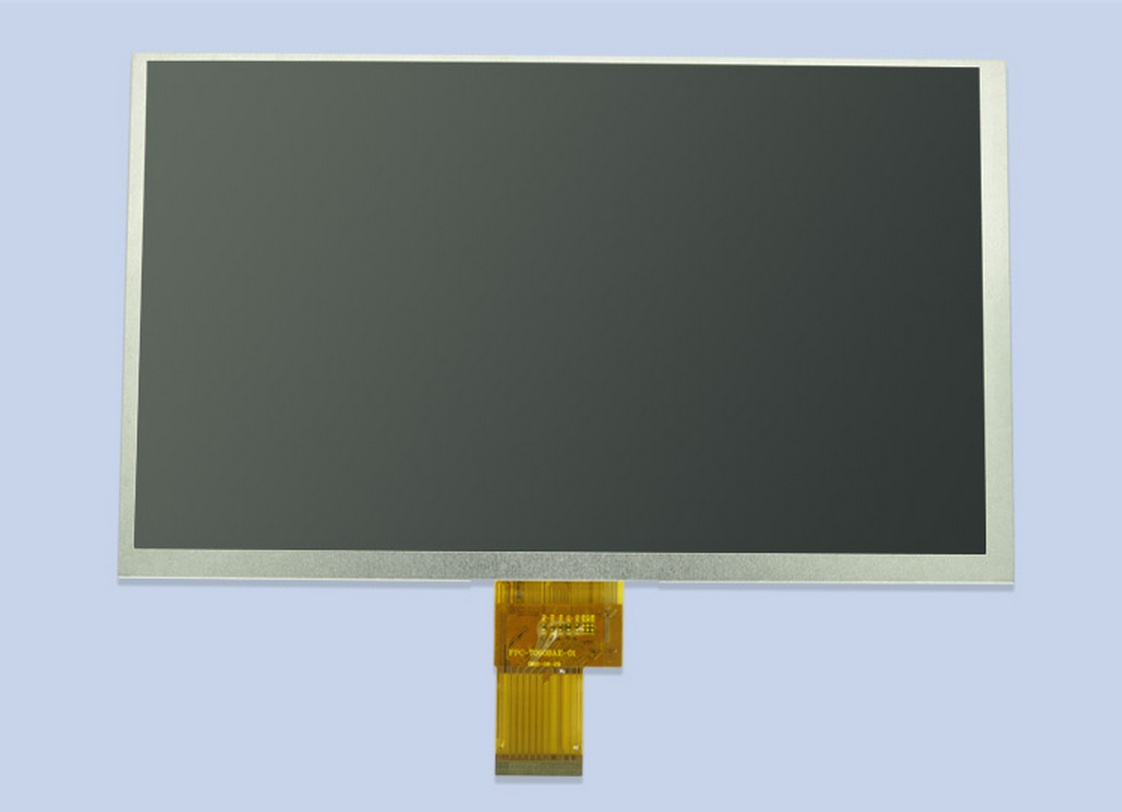

Product picture
General specificationLCD Type: TFT -
Display color: 16.7M
Viewing Direction :12 O'Clock
Gray scale inversion direction: 6 O'Clock
Operating temperature: -20~+70 ºC
Storage temperature: -30~+80 ºC
Active Area(W×H) :196.61X114.15 mm
Number of Dots :1024×600 dots
Controller :EK79001AG+EK73215BCGA -
Power Supply Voltage: 3.3 V
Backlight: 3X9-LEDs (white) pcs
Interface: LVDS

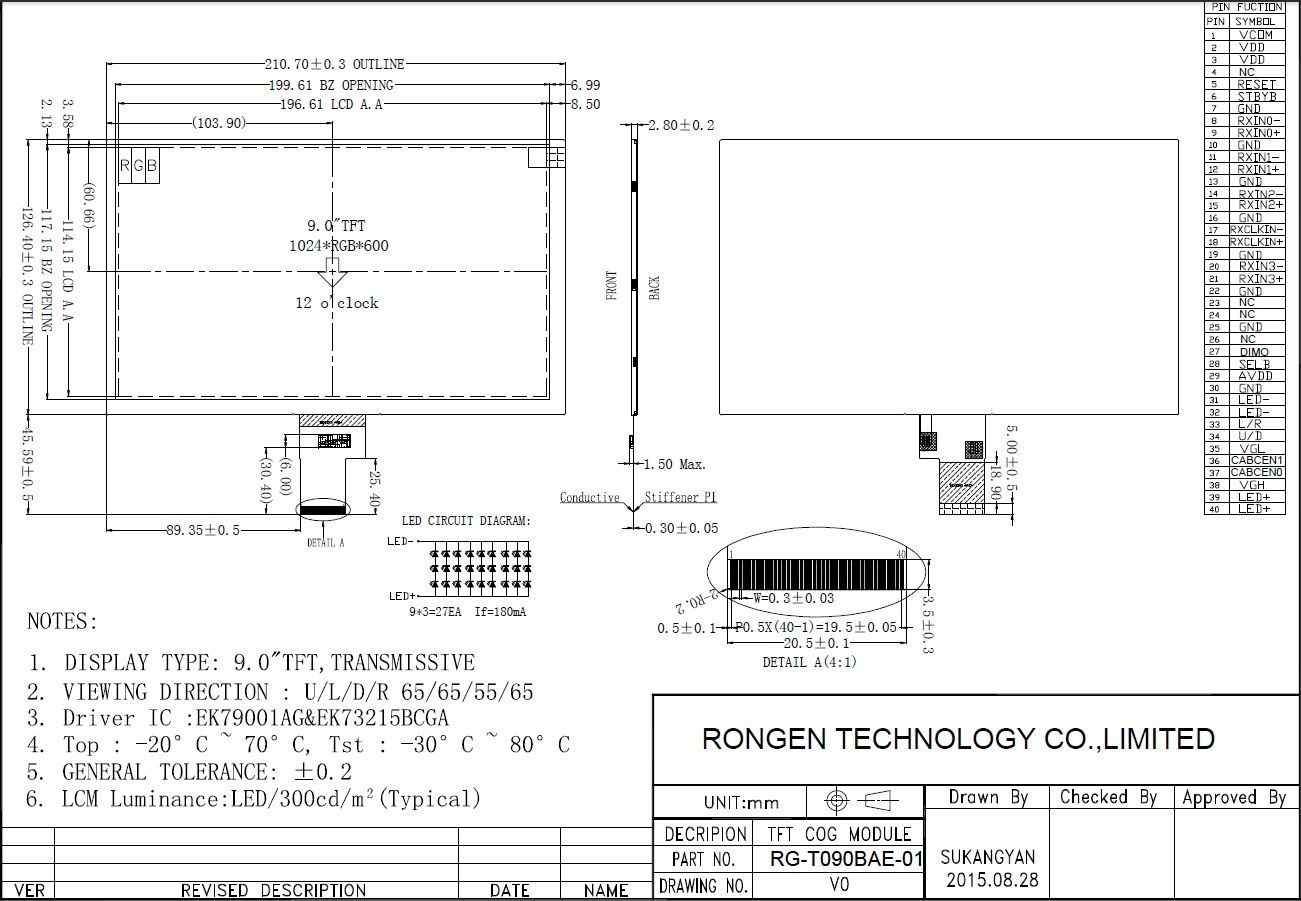

Mechanical Drawing
