| Prod Model: |
RG-T080QXH-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
1024*768 |
| Luminance: |
350CD/M2 |
| Contrast Ratio: |
500:1 |
| Operating Temperature: |
-20~70 |
| Storage Temperature: |
-30~80 |
| Outline Size: |
174.00*136.00*2.45 |
| Active Area: |
162.05*121.54 |
| Pin: |
40 Pin Soldering Type |
| Colors: |
16.7m |
| Viewing Direction: |
All |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Optimum Resolution: |
1024x768 |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
20ms |
| 3D: |
Not 3D |
| Screen Size: |
8 Inch |
| Application: |
LCD Monitor |
| Interface Type: |
Lvds |
Product Description
Product Description
Double display structure: TFT Module + FPC +BL
1024 dot-source and 768 dot-gate outputs;
16.7M Color;
White LED back light;
LVDS interface;

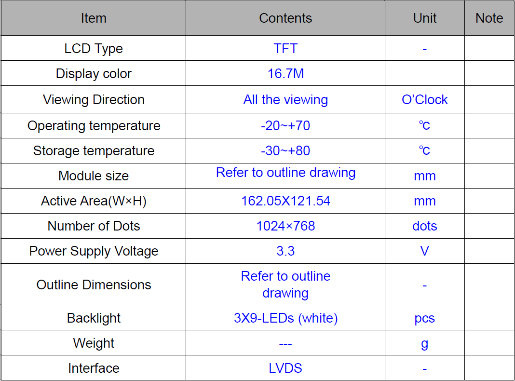

General specification

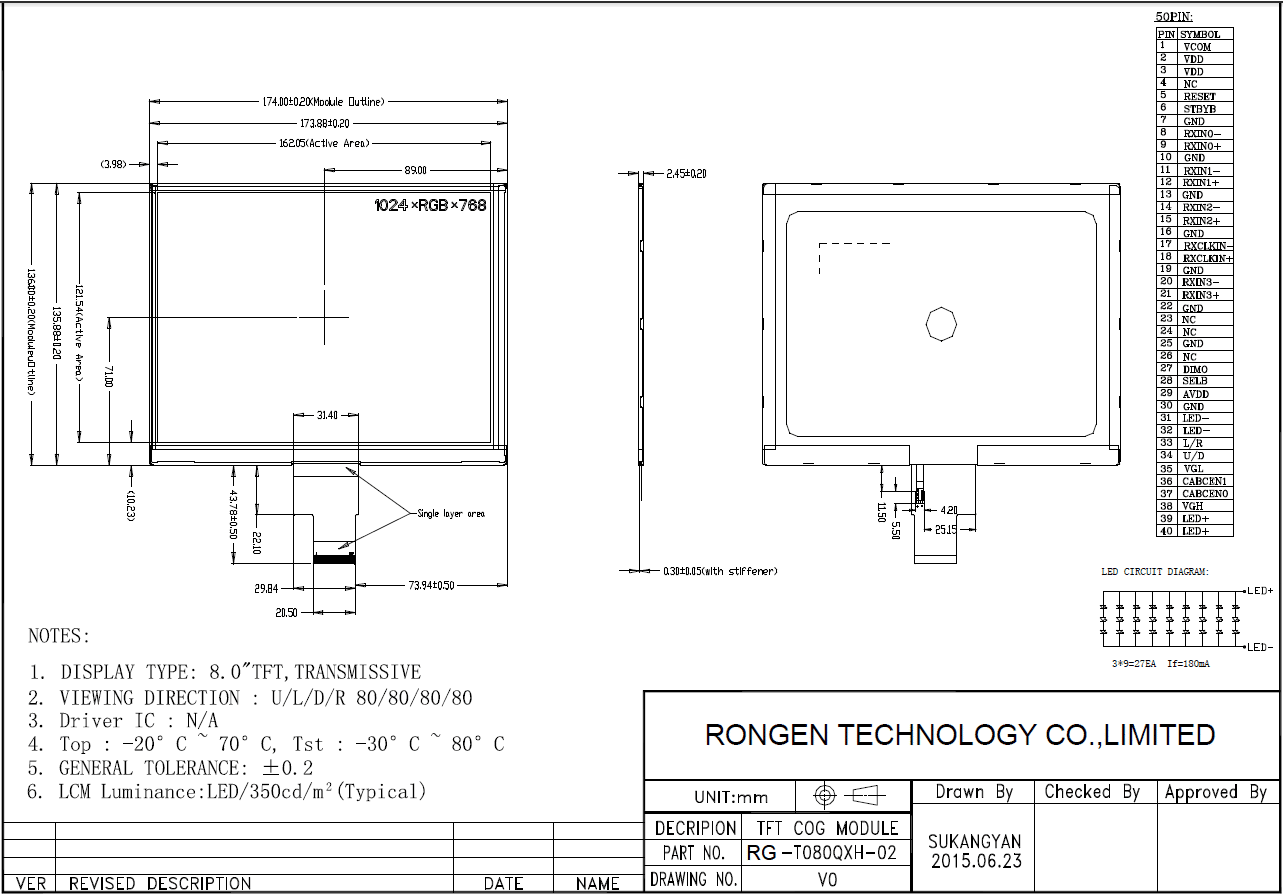

Mechanical Drawing
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.
Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.
Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.
Further more, each unit bears SGS, TUV and RoHS marks.
The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.
Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
