Rongen Technology Co., Limited >> Rg-T050qwh-04p 5" 800*480 TFT LCD Module Video Interphone Display with Touch Panel

Rg-T050qwh-04p 5" 800*480 TFT LCD Module Video Interphone Display with Touch Panel

Rg-T050qwh-04p 5
Price: US $ 12/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: RG-T050QWH-04P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LCD Type: TFT
Size: 5"
Resolution: 800*480
Brightness: 250 CD/M2
Backlight: 6X2-LEDs (White)
Display Color: 16.7m
Power Supply Voltage: 3.3V
Operating Temperature: -20~70
Viewing Direction: 12 O' Clock
Interface: RGB888
Usage: Small-sized LCM
Touch Screen Type: Resistive
Type: LCM
Response Time: 10ms
Viewing Angle: TN+FILM
Display Technology: TFT
DOT-Matrix Graphic LCD Module Type: Row/Column-Driven Control Type
LCD Drive Mode: Multiplex Drive LCD Module
Customized: Customized
Digital LCD Module Type: TFT LCD

Product Description

Product Specifications


RG-T050QWH-04P is a TFT-LCD module. It is composed of a TFT-LCD panel,
driver IC, FPC, TP,a back light unit. The 5.0 display area contains 800 x 480 pixels
and can display up to 16.7M colors. This product accords with RoHS environmental
criterion.

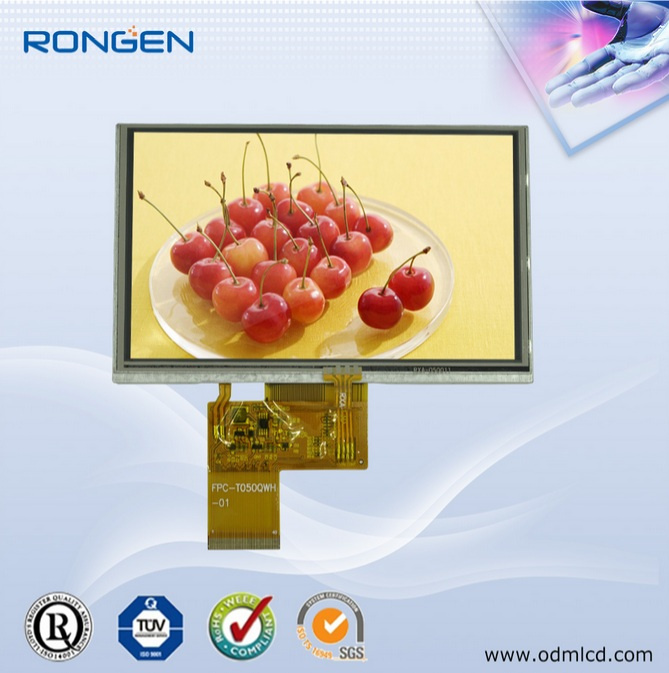

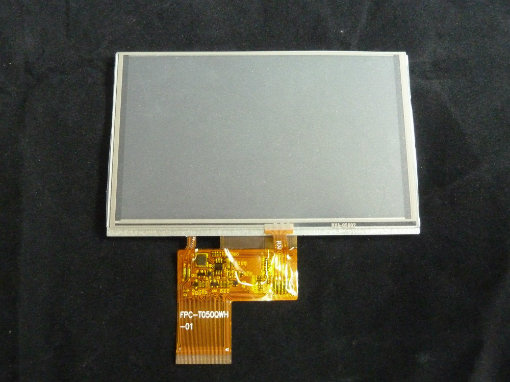

Product Picture

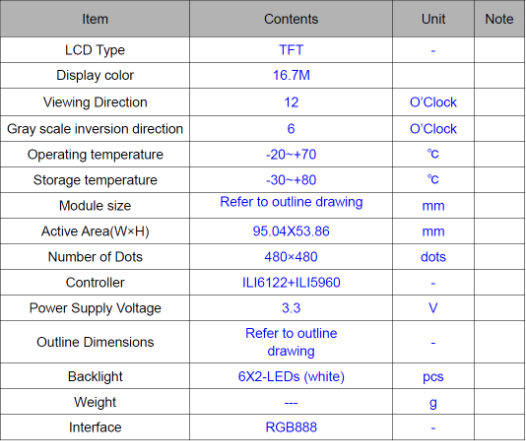

General Specifications






Merchanical Drawing

RONGEN have concentrate on designing and manufacturing display products for more than 12 years.

Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.

Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.

Further more, each unit bears SGS, TUV and RoHS marks.

The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.

Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
