| Prod Model: |
ACM08E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: 108*88*32(Mm): |
PVC Case Material |
Product Description

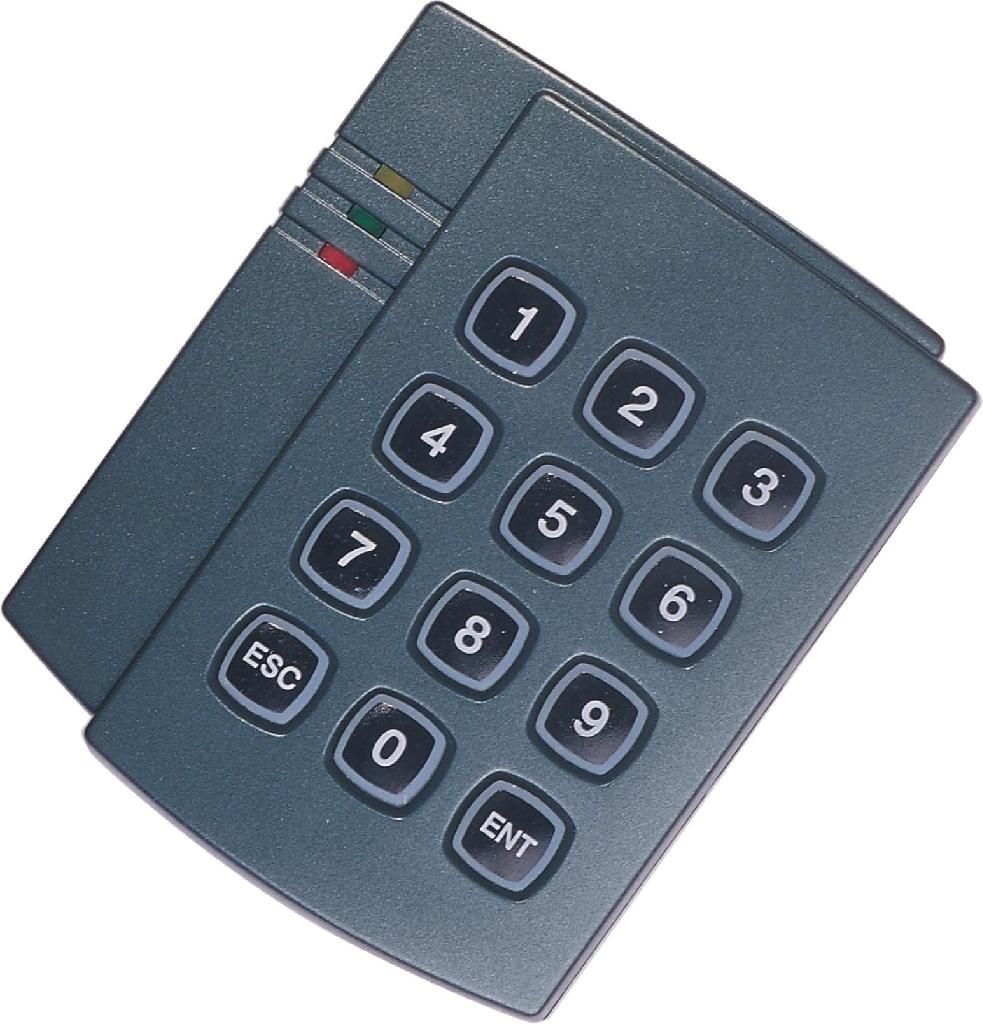

RFID Keypad Card Reader (Model No: ACM08E)
ACM08E is Keypad card reader, ID reader or Mifare reader is option.
Specification:
*Wiegand 26bits/ Wiegand34bits Standard Format Data Output
*Support ID (125 KHz), Mifare(13.56MHz) Card or PIN Opening Door Mode.
*Less than 0.2 second Response Speed
*Less than 0.5 seconds Proximity Time Distance:
*2-15cm Proximity Range
*-25 to 75 degree Ambient Temperature
*10%-90% Ambient Humidity
*Built-in Antenna
*Built-in LED (Double Color LED)
*Built-in Loud Speaker (Buzzer)
*DC 5V-16V Working Voltage. Standard Direct Current 12V
*70mA Working Current
*100 Meters Communication Distance
*Real Time Data Transfer
*Light Yellow
*PVC Case Material (Black Resin for Water-Proof Function)
*Size: 108*88*32(mm)
Installation:
Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.
Wire Connection:
Red --------------+12V
Black Wire -----GND
Blue Wire ------DATA1
White Wire----- DATA0
Green Wire------ Green LED
Brown Wire------ Buzzer
