| Prod Model: |
SOYO-WTG04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
2400MHz~2483MHz |
| Response: |
20Hz~20kHz (+/-1dB) |
| Sampling Ratio: |
64k@16-Bit*2 |
| Sound Quality: |
Hi-Fi HDCD |
| Digital Modulation: |
Gfsk |
| Sn Ratio: |
95dB |
| Dynamic Range: |
90dB |
| Distortion: |
0.8@1kHz |
| Function: |
Supporting 100 Classroom Microphone Talking Simult |
| Applicate: |
PA System/Church/Classroom |
| Signal Transmission: |
Wireless |
| Application: |
Classroom/ Church |
| Directivity: |
Omni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Differential Type |
Product Description

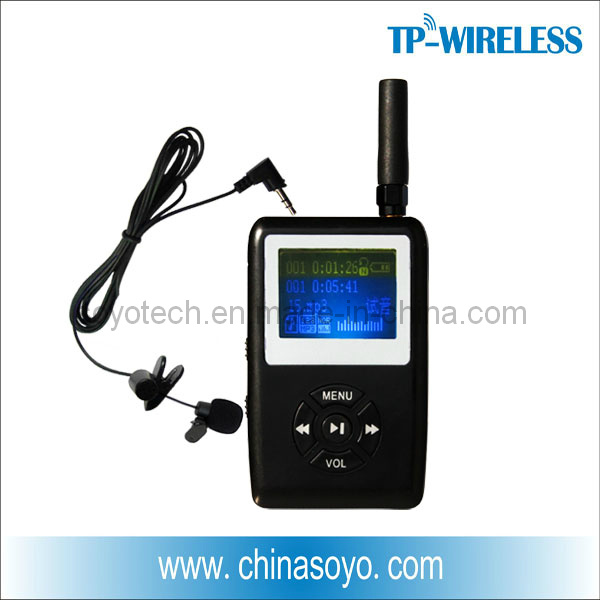

RF wireless lapel microphones for teacher
A. Wireless lapel microphones
B. RF wireless microphones for classroom
C. RF lapel wireless microphones solutions
D. RF wireless classroom microphones solution
E. RF wireless teacher microphones solution
F. RF wireless microphones for teacher
G. CE/FCC/TELEC Certificates approved
Model: SOYO-WTG04
Features:
1). Integrated music player function and wireless microphone function.
2). Supporting headphones audio output.
3). Build-in 2G micro SD card to store music files
4). Supporting microphone input while playing music files.
5). USB interface, supporting USB jack charging and data download.
6). Lanyard design, which convenient for teachers to use hanging rope.
7). LCD display showing volume level, battery status, charging status, channel and volume.
8). Powered by rechargeable Li-battery which can be changed in turn.
9). Supporting Low power consumption for a wide range of input voltage.
10). Continuously transmitting audio time over than 8 hours.
11). Noise elimination circuit switching on power switch, eliminating noise of power on/off.
12). Supporting fixed ID working mode, point to point and point to multi point, automatic scan channel function to avoid interference easily.
13). Auto muting function when receiving weak signals or no signals.
14). Switch button controls status of wireless transmission (on/off).
15). Supporting channel pairing, automatically scanned channel with wireless speakers within one second, easy to operate.
16). Capable of being simultaneously used for over 100 classrooms and never crosstalk!
>>> PLUS:
As a manufacturer in 2.4GHz digital wireless classroom audio system for over 9 years, Soyo Technology offer full wireless teacher microphones and loudspeaker system:
>>> for teacher:
We have follow wireless microphone available for your choice:
A. Handheld wireless microphone,
B. Headset wireless microphone,
C. Lapel wireless microphone,
D. Body-pack wireless microphone,
E. Belt-pack wireless microphone, etc
>>> for classroom:
We have follow items for classroom available for option:
A. Wireless classroom loudspeaker version
B. Wireless voice amplification version
C. Portable wireless loudspeaker version
|
NO. |
Model |
SOYO-WTG04 |
|
1 |
Description |
Lapel wireless microphone |
|
2 |
Power(input voltage) |
3.7 V rechargeable lithium battery |
|
3 |
Work currency |
120 mA (MAX) |
|
4 |
Operate temperature |
-25 ~ 85 ºC |
|
5 |
Frequency |
2400 ~ 2524MHz |
|
6 |
modulate |
GFSK |
|
7 |
Channel width |
1 MHz |
|
8 |
Transmit power |
20 dBm |
|
9 |
Input level |
Max 1.0Vpk |
|
10 |
Input impedance |
10k Ohm |
|
11 |
Input interface |
Two kind input mode:
1. Microphone input
2. Stereo sound input |
|
12 |
Output impedance |
1k Ohm |
|
13 |
Input-output gain ratio |
1:1 |
|
14 |
Delay |
2 ms |
|
15 |
SNR |
95 dB |
|
16 |
Distortion |
0.8 % @ 1kHz |
|
17 |
Dynamic range |
90dB |
|
18 |
Dimension |
60 mm*40mm*15mm |
|
19 |
Weight |
0.07kg |
