| Prod Model: |
GAS8Z8889.10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PCB Board Size: |
8, 12, 16, 18, 20 Inch or Customize |
| Color: |
Red, Amber, Yellow, Green, White, Blue, Customize |
| Voltage: |
12V |
| Input Voltage: |
AC110V, 240V |
| Brightness Control: |
Manual, Automatic |
| Humidity: |
0%-95%Rh |
| Control Way: |
RF Remote Control |
| Control Distance: |
30m-100m |
| Package: |
Plywood Case |
| Warranty: |
One Year |
| Tube Chip Color: |
Single Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
6400 dot / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Advertising |
| Pixel Configuration: |
Red |
| Display Function: |
Price Display, Digit |
| Certification: |
CE, UL, RoHS |
Product Description

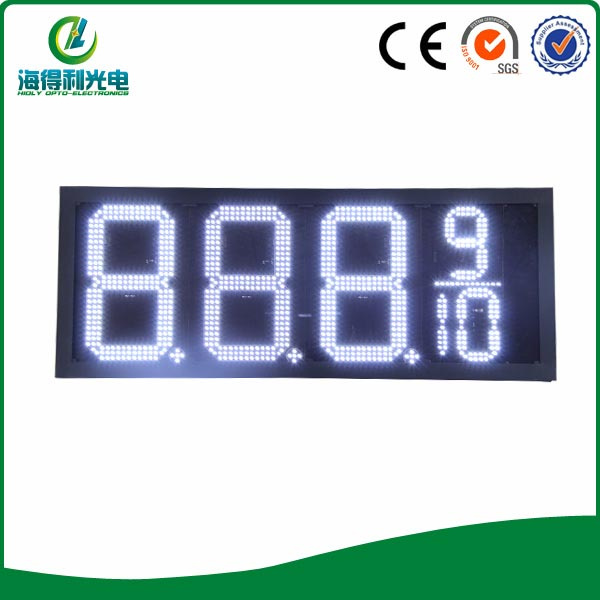

RF controller LED fuel price sign board
1-Adopt better chips (Taiwan Epistar and Taiwan Huga )
2- Display Color: Red/Amber/Blue/Green/White/Yellow
3-No matter that it is daytime or night, brightness can be adjusted
Automatically.
4- Size of number: 8'' 10'' 12'' 12.5" 14" 15"16'' 18'' 20" and etc. We can design it based on clients' requirement
5-IR wireless control / wireless RF remote /computer programming control
6-Wireless Communication Distance: 30m/60m/100m
7-Waterproof rate: IP 53 for Aluminum frame/ IP 65 for Iron cabinet
8-Housing Material: Aluminum frame or iron cabinets
The Instruction for the RF remote and the RF control System
RF controller. RF remote. Meanwell Power supply and Fan. IP 65 waterproof case. Control distance 30m-100m. 7 grades automatic adjustment brightness.
Our service
1-Your inquiry related to our products or price will be replied in 24 hours.
2-Diverse models, dimension and design of LED display for customer selection.
3-Protection of your ideas of design and all your private information.
4-(Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)
Size | 8inch | 12inch | 12.5inch | 16inch | 18inch | 20inch |
Quantity of LEDs | 108pcs | 250pcs | 250pcs | 273pcs | 635pcs | 669pcs |
Front Height | 195mm | 300mm | 310mm | 400mm | 462mm | 500mm |
PCB Size | 143mm*327mm | 225mm*317mm | 232mm*327mm |
300mmx422mm
| 353mmx498mm | 390mmx558mm |
Color | red / yellow / green / blue /amber / white |
Cabinet Size
(8889/10 or 888.8with waterproof iron cabinet) | 27*64.3*4cm | 40*100*4cm | 40*100*4cm | 49*126*4cm | 56*147.3*6cm | 62*164.5*6cm |
| Control box size: | 300*300*80mm |
| Control System | RF controller. RF remote, Meanwell Power supply and Fan,7 grade automatic adjustment brightness |
| Control Distance | 30m --100m |
| Package | Plywood with EPE, Netural package. |
