Guangzhou Tengsheng Audio Equipment Co., Ltd. >> RF-1560 Single 15 Inches Two-Way Full Range Professional PA Stereo Speaker

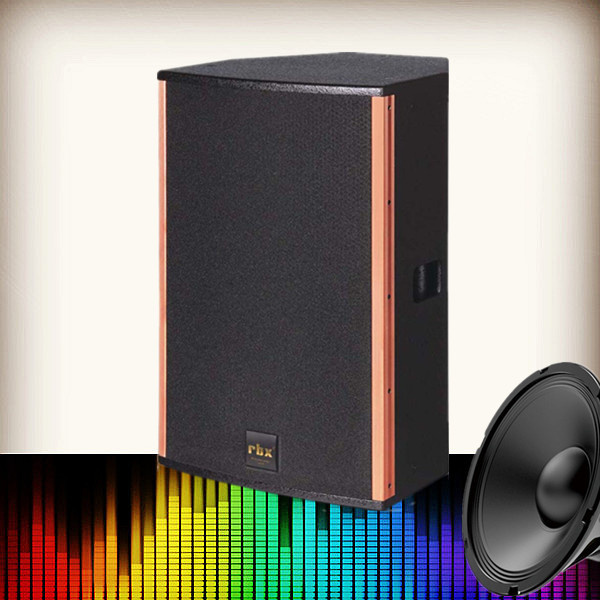

RF-1560 Single 15 Inches Two-Way Full Range Professional PA Stereo Speaker

RF-1560 Single 15 Inches Two-Way Full Range Professional PA Stereo Speaker
Price: US $ 260-600/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: RF-1560
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: 2-Way Full Range PRO Audio
Crossover: Asymmetric Internal Passive Crossover
Lf Component: B&C 190mm Magnet with Aluminum Frame
Hf Component: B&C Magnet
Size Options: 15"
Installing: Hanging, Pole Mount, Stand, Lying Down
Diaphragm: Paper
Capacitor: Solen
Clients' Logo: Acceptable
Warranty: 3 Years
Noise: <95dB
Hi-Fi: Not Hi-Fi
Operation Mode: Wire / Remote Control
Speaker System: Mono
Speaker Material: Wood
Application: Entertainment Venue
Certification: CCC
THD: <0.005%
Monitor: Nun

Product Description

1.Description:
RF-1560 is a two-way full-range speaker designed specifically for high-end KTV clubs. To create a compact polygonal design, we apply several sheets of imported multilayer birch plywood. The surface of it is painted with high-quality durable polyester coatings.
RF-1560 is equipped with a 15" LF precise driver and a 2" HF precise compression driver which are both from B&C Italy. When you use it, you will feel a natural and clean sound, a rich overtone, a perfect envelopment and spaciousness.

2. Application:
It is ideal for auditorium, conference room, music bar, DISCO bar and etc. And, as main loudspeaker system, it can be combined with our RX-1240 or sub-woof loudspeaker system from the RX series.

3. Technical data:

ModelRF-1560 15" two-way full range pa speaker
DriversLF: 1×15"voice-coil: 3" (B&C)
HF: 1×2"voice-coil: 3" (B&C)
Frequency(±3dB)45HZ-20KHZ(±3dB)
Dispersion(-6dB)Hor:90° × Vert:60°
Sensitivity(1m/1W)100dB
Maximum SPL128dB Continuous/140dB Peak
Nominal Impedance8 Ohms
Input powerRate: 600W/Peak: 2400W
Recommend AMP1000W to 1200W into 8 Ohms
Connectors2 × Speakon NL4MP
Dimensions690 × 443 × 455mm (H × W × D)
Master carton755 × 505 × 515 (H × W × D)
Net Weight26.5Kg
Gross Weight30.5Kg

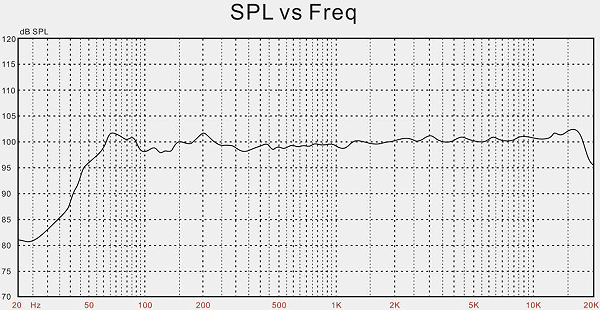

4. Frequency response:

5. Construction:
PhysicalPolygonal
EnclosureImported multilayer birch plywood
GrilleDie-casting steel net with circular hole, black sponge inside
PaintPolyester coatings (whose color can be customized.)
Handing PositionM8 screw of installation holes (12 pcs)
Pole MountBottom: Φ35mm support base

6. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.

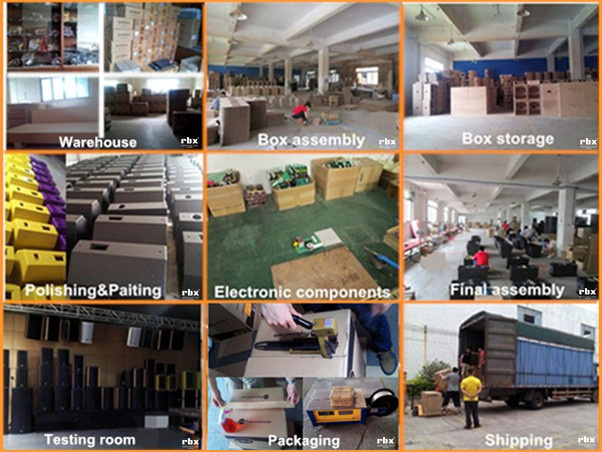

7. Company View:

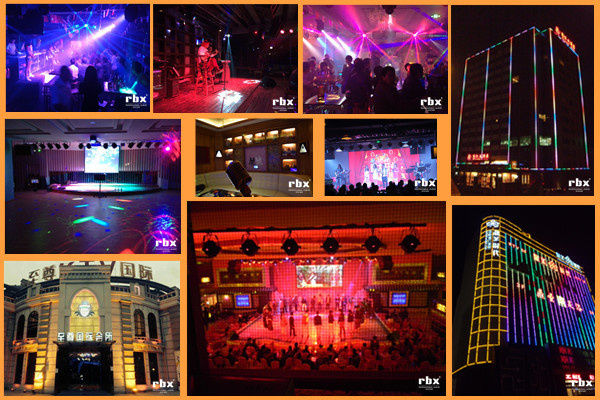

8. Our Projects:
Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.

During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.

Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
