| Prod Model: |
RF-118B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Sub Woofer |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
B&C 220mm Magnet with Aluminum Frame |
| Size Options: |
15", 18", Dual 18" |
| Installing: |
Pole Mount, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Colour: |
Customized |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Entertainment Venue |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:a. Imported multilayer birch plywood;b. High-quality durable polyesterimide paint;
c. B&C LF precise compression driver,
d. Clean, flexible, and full bass;
e. Perfect envelopment and spaciousness.

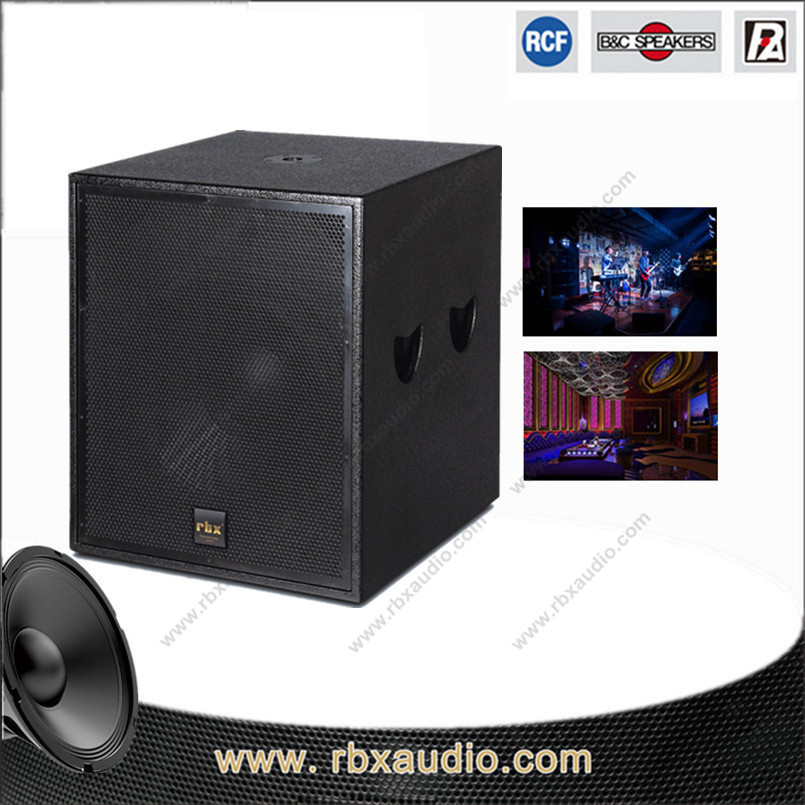

RF-118B is a Sub-woof loudspeaker designed specifically for high-end KTV clubs, we apply several sheets of imported multilayer birch plywood. The surface of it is painted with high-quality durable polyester coatings.
RF-118B is equipped with a 18" LF precise driver from B&C Italy. When you use it, you will feel a clean, flexible, and full bass. And, it give bring you perfect envelopment and spaciousness.
2. Application:
It is ideal for auditorium, conference room, music bar, DISCO bar and etc. as Sub-woof loudspeaker system, it can be combined with full range loudspeaker system. Also, it can be used as Sub-woof loudspeaker system supporting fill.
3. Technical data:| Model | RF-118b Single 18 Inches Sub Bass Speaker |
| Drivers | LF: 1×18"voice-coil: 4" (B&C) |
| Frequency(±3dB) | 30HZ-220HZ(±3dB) |
| Dispersion(-6dB) | / |
| Sensitivity(1m/1W) | 99dB |
| Maximum SPL | 131dB Continuous/143dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate: 1000W/Peak: 4800W |
| Recommend AMP | 1000W to 1400W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 695 × 470 × 600mm (H × W × D) |
| Master carton | 755 × 535 × 660 (H × W × D) |
| Net Weight | 45.5Kg |
| Gross Weight | 49.5Kg |

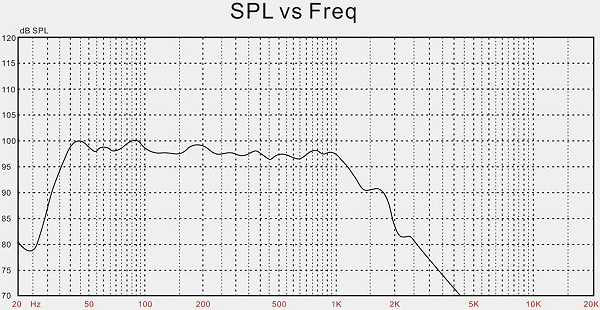

4. Frequency response:
5. Construction:| Physical | Cuboid |
| Enclosure | Imported multilayer birch plywood |
| Grille | / |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | / |
| Pole Mount | Top: Φ35mm support base |
6. Maintenance:a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it. 7. Company View:

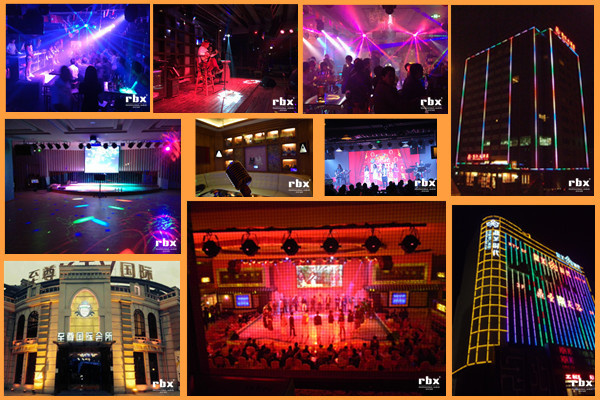

8. Our Projects:
