| Prod Model: |
HDNRO-1000L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: Customized: |
Desalting Rate:97-98% |
| Class: |
First Class |
| RO Membrane Brand: |
Film Tec ,Hydranautics or Pft |
| Raw Water PH Range: |
4-9 |
| Raw Water Hardness: |
17mg/L (Calcium Carbonate) |
Product Description

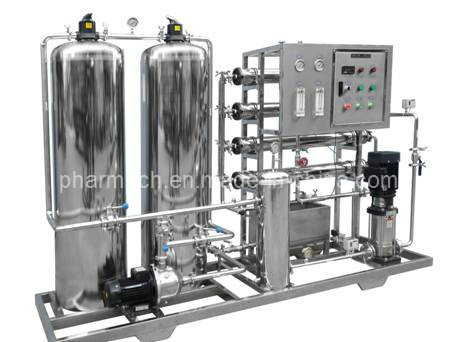

HDNRO-1000L Reverse osmosis water purifier
Standard RO System Quick Details:
Control way: PLC and man machine interface or computer
RO membrane brand: Film Tec ,Hydranautics or PFT
Multi media filter material: quartz sand,5 types 1,2,3,4,5
Active carbon filter material: active carbon, iodine 900
RO high pressure pump: modern pump, Nan fang pump or select by the user
Raw water temperature: 15--35 centigrade
Raw water PH range: 4-9
Raw water hardness: 17mg/L (calcium carbonate)
Raw water pollution index: SDI less than 5
Raw water total dissolved solids: less than 1000mg/L
System capacity changes significantly with water temperature and feed TDS,
for higher TDS,a water analysis must be supplied and could result in
modifications to the system. Our reverse osmosis system are mostly custom
designed specifically for your water treatment requirements by our experienced
engineers.
Specifications:
1.Custom designed according to the customer's raw water analysis, capacity and product water requirements.
2.Certificate : ISO9001, RO system CE certificate No: 111018/WHE713
3.Warranty one year
4.Install compact
A. Description:
Reverse osmosis, the raw water, first goes by pre-treatment, then by RO
treatment. Through those treatments, can remove dissolving salt 99% and
harmful materials, like particle, colloid, organic impurities, heavy metal ions,
bacteria, viruses and heat source, etc. the system salt rejection rate gets
96-98%, outlet water conductivity gets ≤10μs/cm².
B. Process:
Raw water+ Raw water tank +Raw water pump+Quartz sand Filter +
Activitated carbon Filter + Scale inhibitor system +Ultrafilter+High
Pressure Pump+ Reverse Osmosis Host System + Pure Water Tank
C. Parameters:
1. Capacity: customized
2. Rated power: check with the configuration list
3. Voltage: 220V/3phase/50Hz, 380V3phase/50Hz,or customized at different country
4. Desalting rate:97-98%
5. Water recovery rate: 50-70%
6. Conductivity of raw water: ≤400μs or custom designed
7. Conductivity of pure water: ≤10μs or custom designed
D. Function:
1. Manually and automatically wash RO membrane, CIP system
2. Manually wash RO membrane with chemicals on machine,
3. Automatic shut-down at tank full,
4 .SS high pressure components, SS pump to avoid the leakage.
5. Multi-stage pumps protect the machine when lack of water,
6. Protection in such cases as no power, lower pressure, higher pressure, shot
circuit, creepage, etc.
Huizhou Pingfang Trading Co., Ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer' Expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand, Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, cGMP. We also be approved by CE, ISO certificate, too.
We have established business relationship with many directly customers and have many agencies from abroad.
We always stick to the principle that customers are the god, and quality is the first. Therefore, we stick to do all activities as per user' S demands.
Customer service including technical support, installation & commissioning after sale.
Welcome all of friends from abroad to our company and establishing good business cooperation.
