| Prod Model: |
RO-1000I(700L/H) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Efficient Filtration |
| Style: |
Plate and Frame |
| Motive Force: |
Electric power |
| Type: |
Reverse Osmosis |
| Usage: |
Environmental Protection, Drinking Water |
| Pump: |
Denmark Grundfos |
| Control: |
PLC & Touch Screen |
| Membrane: |
Espa4040, Dow30-4040 Option |
| Certification: |
GS |
Product Description
EcoPura Engage in Reverse Osmosis ( RO ) Water Treatment Plant, Ultrafiltration Water System, Brackish Water Purification System, Water Filter System, Water treatment Equipment, Water Desalination System, Water Purifying Solutions.

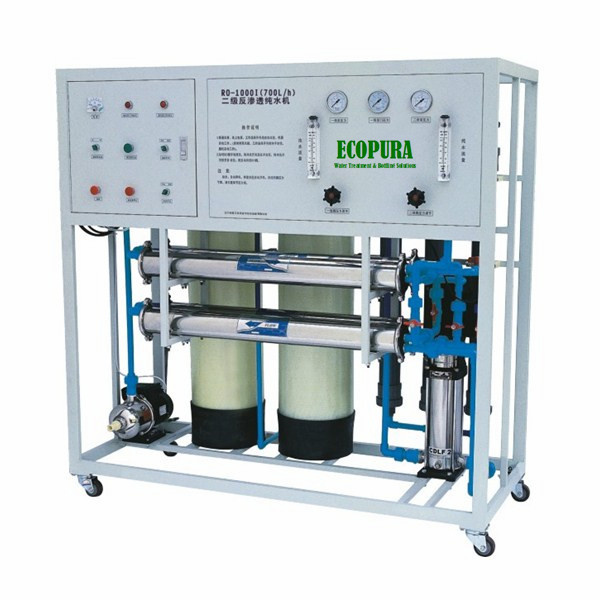

Reverse Osmosis water treatment machine: RO-1000I(700L/H)
Multi-stage media filtration for pre-treatment, and RO unit for main filtration, polishing treatment of UV system and Ozone system.
General features:
1) RO system automatic control for flush and backwash. With Auto water softener.
2) C. I. P. Chemical cleaning system for RO membrane.
3) Chemical dosing port for unti-scaling and pH adjustment for optional choice.
4) U-PVC pipe and fitting for low pressure part, SS304 pipe for high pressure part.
5) LG PLC control system with water level control, Touch Screen Avialable
6) Auto pump protection for electric shortage, pressure protection, water level protection.
Water application:
1) Suitable water source: Tap water, surface well water
2) Inlet water TDS limit: Below 2000ppm (for other water source, please provide us water report for detailed analysis for choosing other brand of RO membrane)
3) Water recovery ratio: 70%
4) RO membrane salt rejection ratio: 99.6%
5) Treated water TDS range: 30 to 50ppm. (Bottled water standard)
|
Model |
RO-1000I(700L/H) ( Two Stage RO) |
|
Capacity of the purified water |
700Liter per hour ( 25°C) |
|
Total Power |
2.75kw |
|
Voltage / Frequency |
AC220V 27.5A / 380V 13A 50HZ |
|
Booster Pump |
CHL2-30 /0,55kw |
|
Pretreatment Part |
Sand Filter Vessel |
Φ300*1200 with 75kgs Quartz Sand filter |
|
GAC Filter Vessel |
Φ300*1200 with 40kgs Active carbon filter |
|
PP Sendiment Filter |
Φ90*1000 3pcs |
|
Multistage Pump |
CNP CDL2-180 2.2kw
Autostop if Low pressure / power / water shortage |
|
Reverse Osmosis Main Part |
S.S304 Housing with 4pcs RO membrane
RO Membrane Origin USA Hydranautic or DOW |
|
Main Control Board |
Equiped TDS / Pressure meter / Flow meter / Control buttom |
|
RO System Washing |
1.Back washing about 8 hours per shift
2.Chemical washing for RO membrane about 7month |
|
Dimension of the RO machine |
1700*710*1700 |
|
Post UV sterilizer UV-40W |
Optional |
|
Post Ozone System |
Optional |
Shenzhen EcoPura Water Equipment Co., Ltd was founded in 2007, specialized in Water Treatment/Dispenser, bottled water/beverage filling line, Blow molding machine & packaging solutions over 18 years experiences, In China, ECOPURA commands more than 60% of Water and Beverage Process Machine market. Covering all segments. Highly acclaimed for their user-friendly, tailor-made designs and customized solutions for various customer needs
As a leading manufacturer, we can supply the following solutions:
1, Water Treatment Solutions based on different raw water quality
Municipal or Mountain water treatment / Brackish Water Purification / Sea water desalting
2, Automatic Bottled Water Production Line
Accuracy filling, position due to PLC application and photoelectricity technology, neck spraying nozzle for cleaning completely, avoid the 2ND pollute. Adjusting and setting data make machine suitable to various bottles.
A)PET 250 ml - 2000ml Bottled Filling Line
B)PET/PP 3 liters - 6 liters Bottled Filling Line
C)5Gallon Bottled Filling Line
3, Blow molding machine with mould design and Post packaging machinery to be fully synchronized with the bottled water filling line.
4, High Quality Water Dispenser with 15years OEM experience for abroad client demand
With the support of advanced technique, mature experienced engineers and customer-oriented after sales service, So far, ECOPURA has close cooperation with hundreds of customers all over the world from USA, Canada, Russia, Mexico, Brazil, Panama, Sudan, Nigeria, Angola, Iraq, Jordan, Indonesia and so on. We won enormous credit by carry out business and confirmation based on carefully understood acts and detailed requirement from every customer.
Providing ' Quality Products, Customized services, Competitive Prices and Timely Delivery', . We are now looking forward to even more cooperation with overseas customers based on mutual benefits, Please feel free to contact us if you are interested in our products, Sincerely welcome to visit our company!
