| Prod Model: |
PURO-3TD-EDI |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Motive Force: |
Electric power |
| Type: |
Reverse Osmosis |
| Usage: |
Environmental Protection, Chemical Industry, Laboratory|Research|Hospital|Health |
| Application|Configuration|Size: |
Pharmaceutical|Pretreatment|5-125L/H |
Product Description

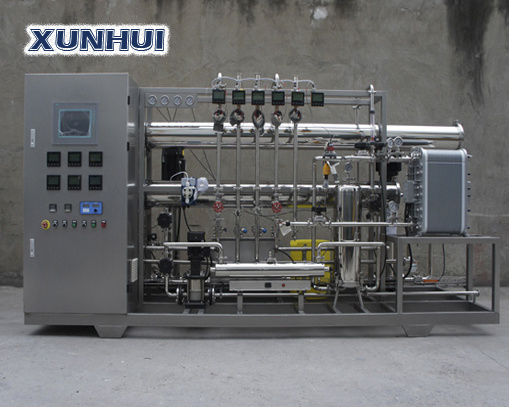

Reverse osmosis water purifier | Filter plant
Our commercial and Industrial Reverse Osmosis water treatment equipment / Systems are pre-engineered to economically produce high purity water by removal of dissolved minerals,bacteria, particles, and organic impurities from tap, well, underground water.
1. Standard Features
High rejection membrane elements, DOW/Hydraunatics/Toray
5-micron sediment security filter
Automatic inlet solenoid valve
Product water conductivity monitor | meter
Operating pressure gauges
Product and concentrate flow meters
Concentrate and recycle flow control valves
Low inlet pressure switch with shutdown alarm
Corrission resistant high pressure pumps
FRP / SS pressure vessel
Automatic PLC controller
Factory tested
2. Options
Online hardness monitor
PH / ORP meter
Ozonization / UV sterilizer
Post DI polishers
Water softeners
3. Construction materials
Skid frame: Stainless steel 304ss or exposy coated carbon steel
High pressure pumps: stainless steel 304ss or 316L
Pressure vessel / membrane housing: Fiberglass Reinforced Plastic / stainless steel
High pressure pipings and valves: stainless steel
Low pressure pipings: UPVC
|
4. Specifications |
|
Model |
Production Capacity |
Inlet |
Outlet |
Power |
Weight |
Dimensions |
|
Liter/hour |
GPD |
Inch |
Inch |
KWs |
KGs |
L × W × H (cm) |
|
RO-250 |
250 |
1500 |
3/4 |
3/4 |
1.5 |
120 |
70 × 70 × 165 |
|
RO-500 |
500 |
3000 |
3/4 |
3/4 |
1.5 |
125 |
70 × 70 × 165 |
|
RO-1000 |
1000 |
6000 |
1 |
1 |
2 |
210 |
160 × 80 × 170 |
|
RO-2000 |
2000 |
12000 |
1 1/2 |
1 1/2 |
4 |
255 |
160 × 100 × 170 |
|
RO-3000 |
3000 |
18000 |
1 1/2 |
1 1/2 |
4.5 |
310 |
260 × 100 × 170 |
|
RO-4000 |
4000 |
24000 |
1 1/2 |
1 1/2 |
6.5 |
696 |
310 × 120 × 165 |
|
RO-5000 |
5000 |
30000 |
1 1/2 |
1 1/2 |
11 |
715 |
310 × 120 × 165 |
Shanghai Xunhui Environment Technology Co., Ltd., is an engineering and industrial company specialized in the research, design, development and construction of high level water treatment system for biochemical, pharmaceutical, hemodialysis, hospital, laboratory and other industrial applications which need ultra pure water. As the subsidiary of Right Action (HK) Enterprise Holding Corp, Shanghai Xun Hui has earned a wide reputation in the industry.
We have our own manufacturing base and R&D center in the most economically vital city - Shanghai, China. Since its establishment, the company adheres to the philosophy of SERVICE, QUALITY, SPEED, SINCERITY. Our PureScience brand water purification systems are under operation in hundreds of clients' premises all over the world.
Our capabilities range from small water treatment equipment to millions of gallons per day water treatment plant.
Water treatment systems we provide:
Membrane systems: Reverse osmosis (RO system), nanofiltration, ultrafiltration, microfiltration
Filtration and pretreatment system: Multi-media filter, activated carbon filter, non-hydrous silicon dioxide filter, manganese greensand filter, cartridge filter,
Deionization system: EDI, separate bed deionizer, mixed bed deionizer, condensate polisher system, water softener
Parts and components: FRP tanks, pressure vessels, membrane elements, filter cartridge, control valves, etc.
Industries we serve:
*Biochemical *Pharmaceutical *Health/Hospital
*Hemodialysis *Food&beverage *Drinking
*Laboratory
On the management principle of "Satisfying the clients, creating the international brand", we devote ourself to provide our clients with professional water treatment solution and best service on most competitive price.
To be a Total solution provider for water purification is our eternal pursuit.
