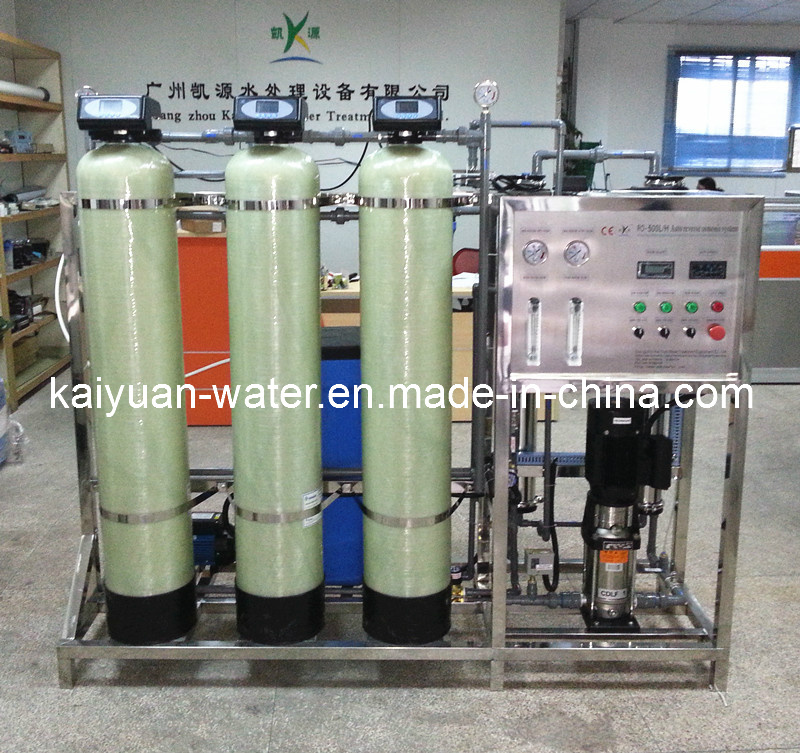

Reverse Osmosis Water Filter/Water Machine/Water Purifier (KYRO-2000)

Prod Model:	KYRO-2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motive Force:	Electric power
Type:	Reverse Osmosis
Usage:	Environmental Protection
Material:	SUS, Fpr
Certificate:	CE
Voltage:	AC380 50Hz
Package:	Wooden Case
Capacity:	2000L/H

Product Description

Reverse osmosis water filter/water machine/water purifier/water plant(KYRO-2000)

1. What is reverse osmosis/RO water purification equipment
Reverse osmosis is one of the most advanced technologies to purifier tap water, underground water, bore hole water, river water, sea water, brackish water in the world. It can remove more then 97% of deliquescent saline substance and 99% of colloid, microbe, particulate and organic substance in water. It is widely used in foodstuff, pharmaceutical, chemical industry, electronic industry for terminal process. It is a key for RO water filter.

2. The process of RO water purification equipment
Raw water-- Raw water tank --Raw water pump --Quartz sand filter-- Active carbon filter-- Security filter-- high pressure pump-- RO systemPure water tank-- UV/Ozone --Pure Wate

3. Detail description
1). Raw water pump-- provide the pressure to quartz sand filter/active carbon filter
2). Quartz filter-- get rid of turbidity, suspended matter, organic matter, colloid, etc.
3). Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4). Water Softener--using ion exchange resin to exchange "ions" of calcium and magnesium is the most common and the easiest method of removing hardness of water and render the water suitable for utility purpose
5). Security filter--It is also called cartridge Filter, prevent any deposition of large Particles, most of the bacteria, and viruses into the UF membrane and RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6). High pressure pump-- The high pressure pump is used for make sure there are enough water for satisfying designed production capacity.
7). RO (reverse osmosis) system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic

4. Application field:
1). Electronics
2). Power system
3). Metallurgical industry
4). Chemical industry
5). Medical and pharmaceutical industry
6). Foods and beverage industry
7). Treatment of industrial sewage and waste water
8). Brackish water desalination etc

5. The feather of RO water filter
1). Can production water continuously and highly automatic
2). No need the chemical regeneration, easy operation
3). RO system choose the import USA DOW membrane
4). Automatic switch on when low water level, and switch off when high water level
5). RO membrane can backwash automatic and reduce thepollution.
6). Water shortage protection for multi-stage pump
7). Porduction water condutivity meter can test the monitoring quality on line contionuosly.
8). Low operation Cost and Long life span
9). It is PC program controller
10). Easily control and Maintained.
11). Auto membrane flushing
12). Environmental protection, Low power consumption
13) Auto flush/backwash
14) Low /high pressure protection
