Resistive Touch Screen (8inch) (VS800TP-1276A)
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
VS800TP-1276A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TFT |
| Application: |
Indoor |
| Screen Size: |
≤17" |
Product Description

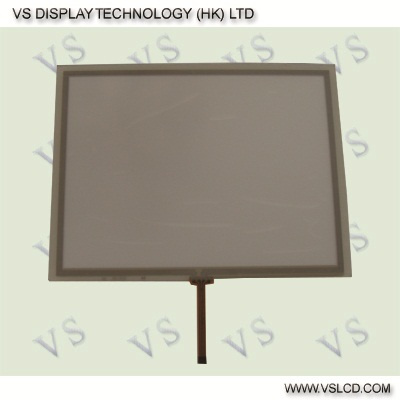

Model No: VS800TP-1276A (8" resistive touch panel)
Touch Panel Size: 183 x 141mm
Viewing Area: 165.2 x 124.7mm
Driveing Condition: DC 3- 7V
Operating force: 60-100g
Operation temperature: -20 to 70 Degree
Storage temperature: -30 to 80 Degree
Sturcture type: ITO Film/ITO Glass
Connector type: FPC Connect
ITO Film type: Clear hard and antl-newton ring coating
Useful life: 1, 000, 000 times
Bound time: < 10ms
|
ITEM |
DESCRIPTION |
UNIT |
|
Product Name |
8" Resistive touch panel |
|
|
Model No |
VS800TP-1276A |
|
|
Outline Dimension |
183X141X1.40 |
mm |
|
Display Area |
165.2 X 124.7 |
mm |
|
Voltage |
3 TO 7 |
V |
|
Operating Temp |
-20 to 70 |
C |
|
Storage Temp |
-30 to 80 |
C |
VS DISPLAY TECHNOLOGY Ltd is a Hi-tech manufacturer of liquid crystal displayer. It is establishment in 1998. The headquarters is located in Shenzhen.
The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications: In telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.
VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.
All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.
Fabrication base covers 30, 000sq meters. 3 COB lines, 3 COG lines, 1TAB lines
QC system: ISO9001
Standard series:
Character: 8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2, 40x2, 40x4 etc.
Graphic: 128 x32, 128 x 64, 128x128, 160x32, 160x128, 160x160, 240 x128, 240x64, 320x240, 320x480 etc.
TFT LCD: 1.44", 1.77", 1.8", 2.0", 2.2", 2.4", 2.8", 3.0", 3.2", 3.5", 4.3", 5.0", 5.6", 7", 8", 9", 10.2" etc.
TFT Driver Board: 3.5", 4.3", 5.0" 5.6", 7", 8", 9", 10", 12", 15.6", 17", 19"
TFT+MCU: 3.5", 5.7
