| Prod Model: |
p8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifespan: |
100,000 Hours |
| Warranty: |
2 Years |
| Brightness: |
>3500CD.Sq/M |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Application: |
Advertising |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
EMC |
| Average Power Consumption: |
300W / m² |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15628DOT.Sq/M |
Product Description

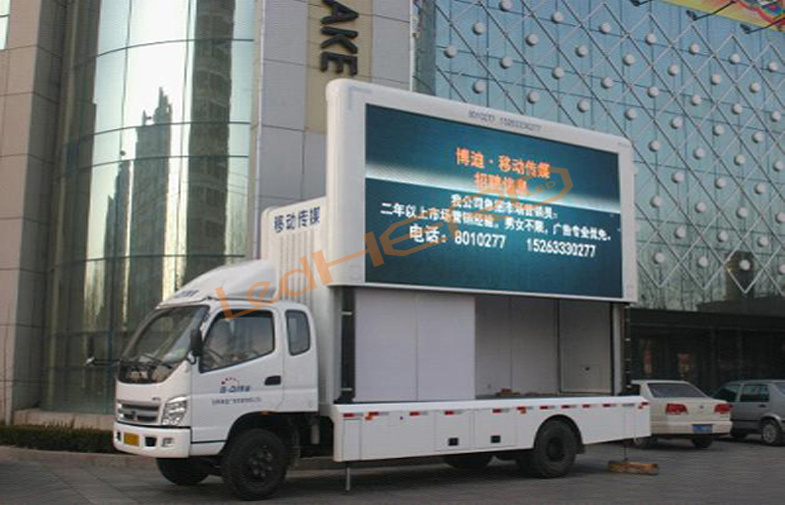

Removable advertising trailer led display
Specifications
1. large viewing angle
2. Light weight
3, CE & ROHS Certificates
4.long lifespan
P10 led display specification:
Part Number
HERO-IDS4F-8S
Resolution
32(H)×16(V)
Pixel Pitch
10mm
LED Configuration
1R1G1B 3-IN-1 SMD
Pixel Density
10,000pixels/ m2
Module Size
320*160mm
Driving IC
MBI5024
Driving Method
1/4 Scan, Constant Current
Cabinet Weight
42kg/sq.m.
Mechanical Ratings
Hanging Weight Support
2T
Surface Flatness
Gap<0.5mm
Optical Ratings
Brightness
>1,800cd/ m2
View Angle
150°/150°
Gray Scale
8bits input, correction with 14bits
Display COLOR
16.7M
Brightness Adjustment
0~100%
Power Supply
Operation Power
90~260V 50~60Hz
Max. Power Consumption
600W/ m2
Average Power Consumption
200W/ m2
Control System
Control Mode
Synchronous display with control PC by DVI
Frame Update Frequency
60~85Hz
Screen Refresh Frequency
300~1000Hz
Gamma Correction
-5.0~+5.0
Support Input
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance
Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode
1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction
Pixel, Module, Cabinet
Environmental
Operating Temperature
-20°~+60°
Operating Humidity
10~95% RH
Operating Life
100,000hours
MTBF
5000hours
Out of Control Rate
<0.02%
Warranty
1. If the area is larger, we usually require customers or dealers to send someone to come to factory to study, training time a week, the main study screen operation, maintenance. Company training and providing accommodation are free of charge.
2. If the area is in more than 20 square meters of outdoor full color, it must have all accessories.
3. Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
Removable advertising trailer led display
